Aqualisa dream - Installation - Valve: Triple Outlet; Outlet Feed Configuration Warning

14

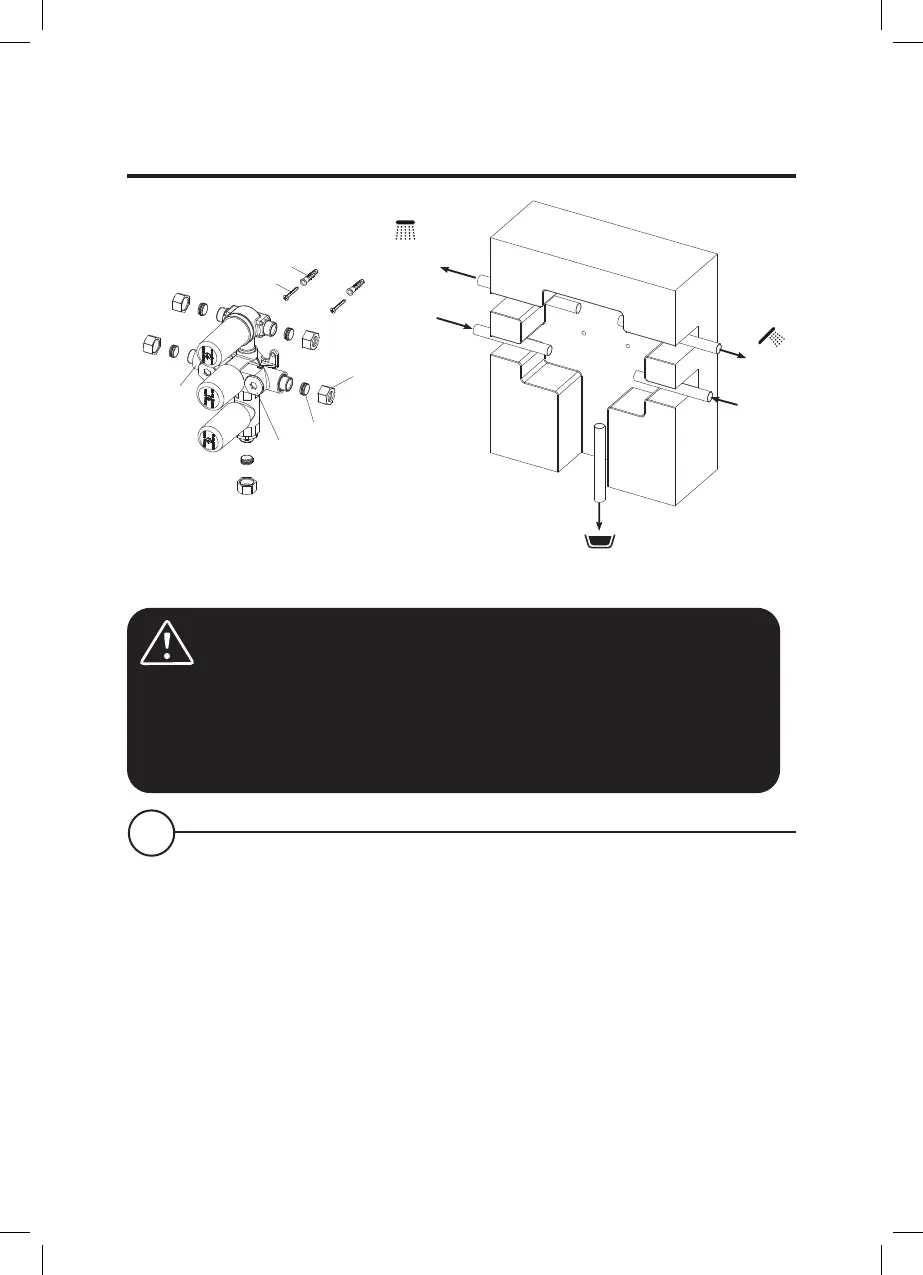

INSTALLATION VALVE  TRIPLE OUTLET
Outlet 3
(Bath fill)
Hot water inlet
Cold
water inlet
Valve body
Copper olives
Compression nuts
Filter nuts
Wall screws
Wall plugs
Outlet 2
(Adjustable head
or hand shower)
Outlet 1
(Fixed head)
IMPORTANT:
Ensure outlet feeds are configured as per the diagram shown.
Fixed head - Left outlet
Adjustable head or hand shower - Right outlet
Bath fill - Bottom outlet
1
Turn o the water supply prior to installation. Prepare the recess in
the wall for the valve body and pipework.
