Aqualisa dream - IMPORTANT: Dual Outlet Valve Installation Dimensions

15
IMPORTANT:
Minimum wall cavity depth: 69mm
Min-Max Concealing Plate adjustment: 69-90mm

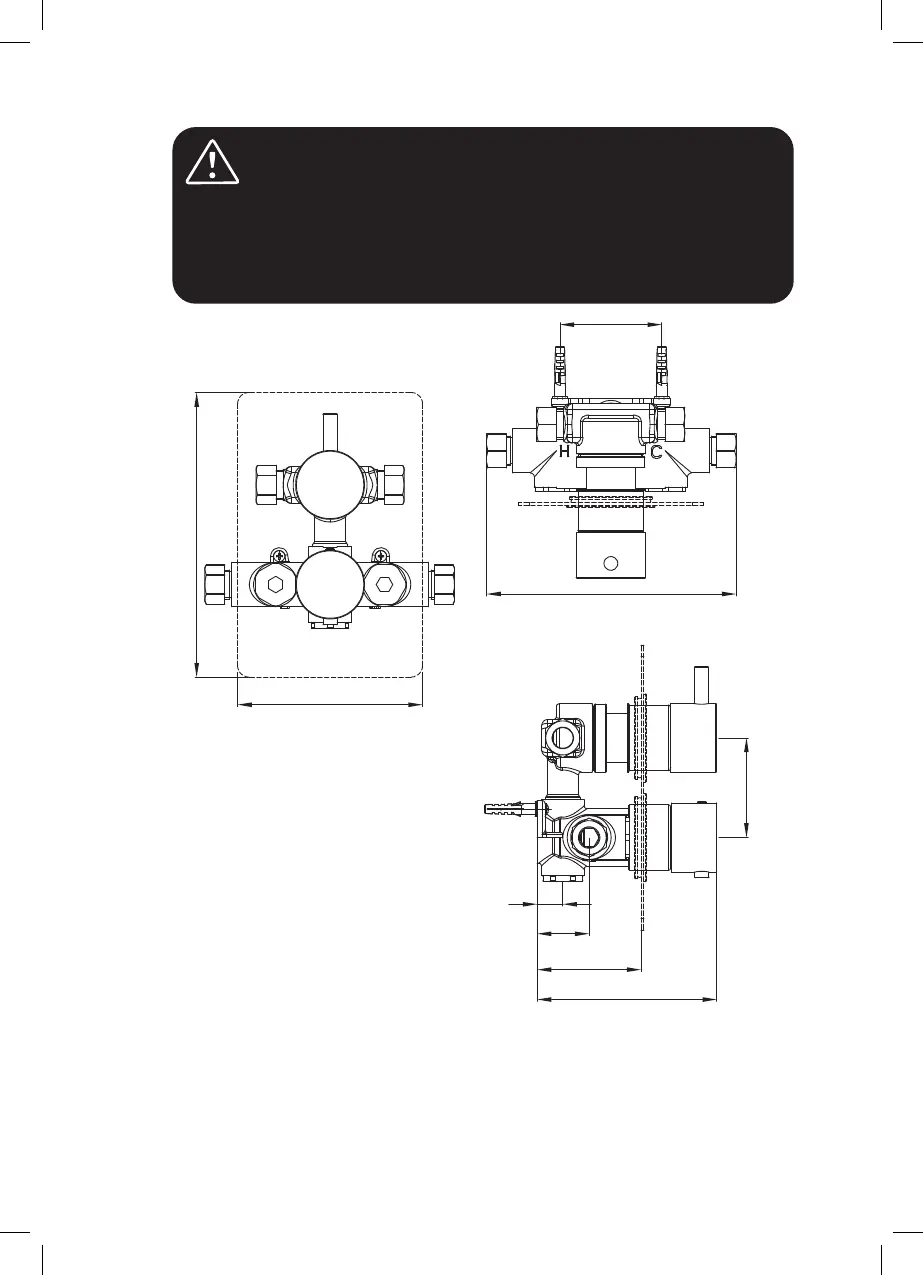

See below dimension drawing.
71.5
130
126
18
70
200
178
69~90
36.5
All sizes shown are
in millimetres.
Valve concealing depth
is from the back of the
valve to the wall plate:
min 69mm
max 90mm
71.5
130
126
18
70
200
178
69~90
36.5
71.5
130
126
18
70
200
178
69~90
36.5
N.B. Dual outlet valve shown for illustrative purposes. Refer to
page 16 for triple outlet valve.
