Aqualisa dream - IMPORTANT: Triple Outlet Valve Installation Dimensions; Minimum Wall Cavity and Plate Adjustment Specs

16
IMPORTANT:
Minimum wall cavity depth: 69mm
Min-Max Concealing Plate adjustment: 69-90mm

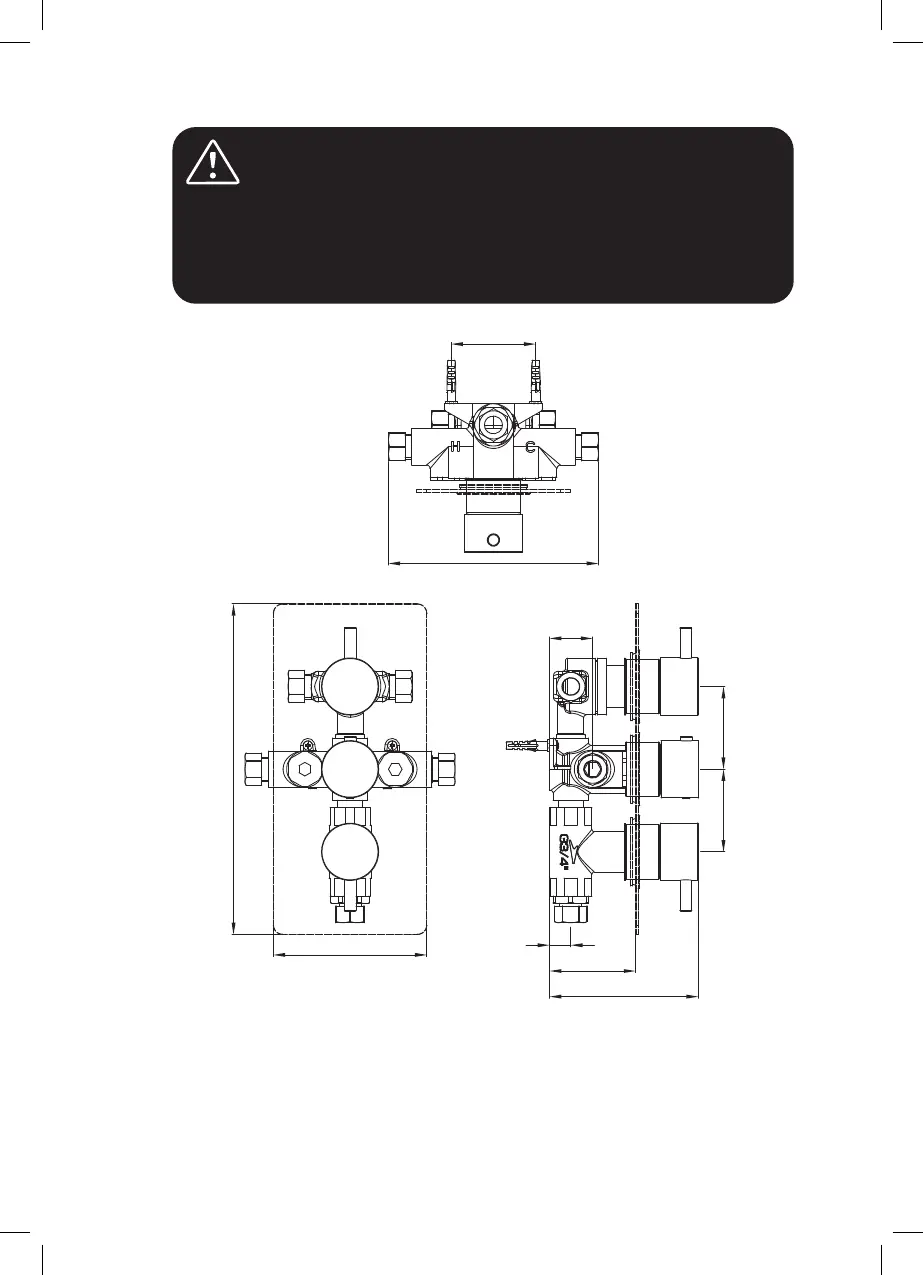

See below dimension drawing.
71.5
130
126
18
70 70
280
178
69~90
36.5
All sizes shown
are in millimetres.
Valve concealing depth
is from the back of the
valve to the wall plate:
min 69mm
max 90mm
