Aquatec Simplex - Inlet Connection and Final Backfill; Uniseal Option; Aussie Seal Option; Final Backfill

Page 15
STEP 7.
—
Steps & Tips:
- Inlet should not interfere with pump removal
or level control operation.
- Proper backfill should be done to prevent
damage from excessive settling.
- Backfill material should be free of large
rocks and rubbish.
- Slope finish grade away from pump chamber

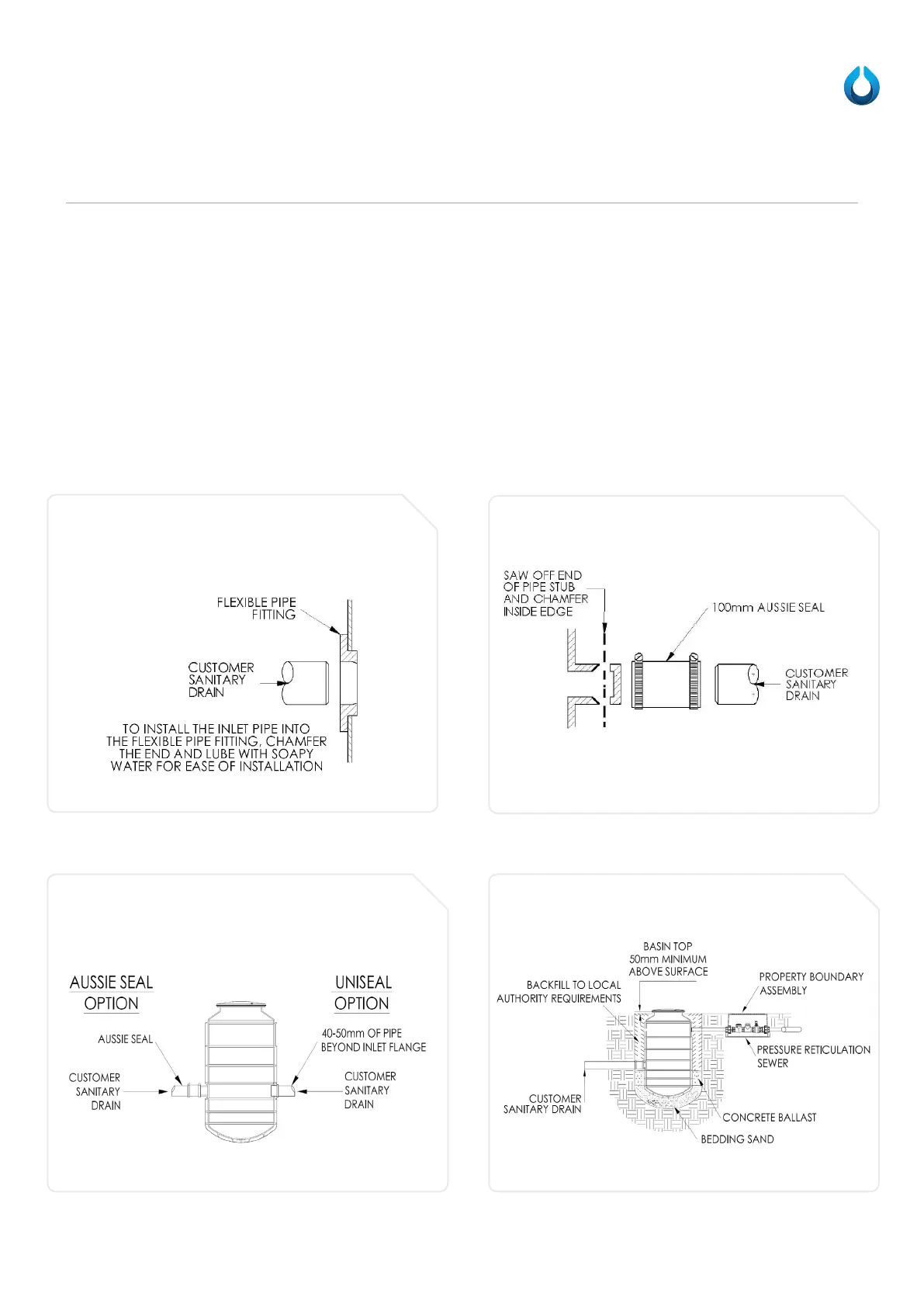

Figure 15: Inlet Installation
Figure 13. Uniseal Option
Figure 16: Final Backfill
Figure 14. Aussie Seal Option
A HOLE SAW THE CORRECT SIZE
MUST BE USED FOR THIS OPTION
REFER TO CHART 3 (PAGE 4)
FOR CORRECT SIZING
Inlet Connection and Final Backfill
