Aquatec Simplex - Power to Control Panel

Page 16
STEP 8.
—
Steps & Tips:
- Electrical power should be disconnected and locked
out during this part of the installation procedure.
- Check for nicks or defects in the cable and wires
before installing.
- Check that connections are secure by pulling
on the wires.
- A GFI type breaker should not be used.
- A separate ground and neutral wire are required
for proper operation.
- A rated Motor starting circuit breaker is required.

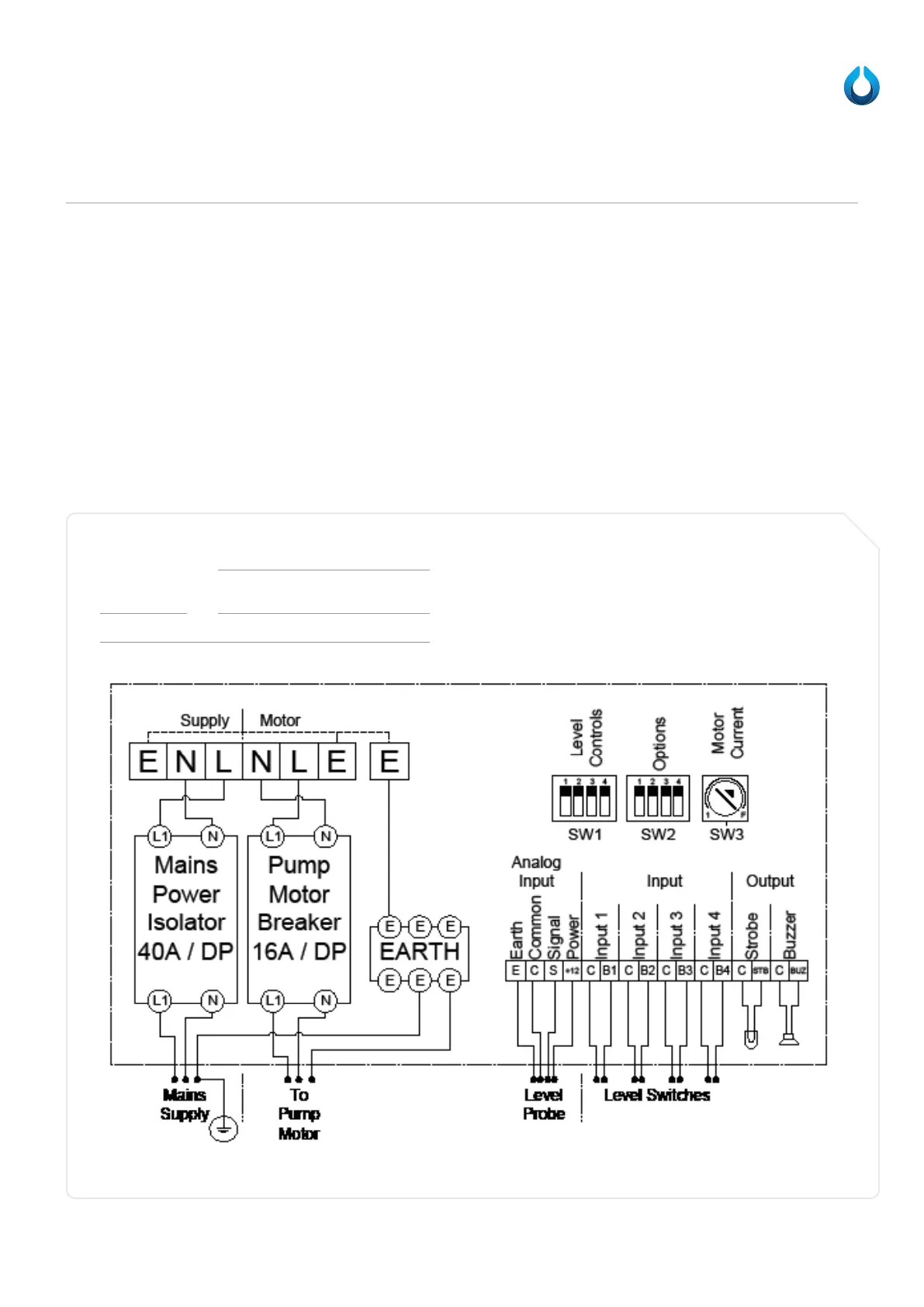

Figure 12. Power to Control Panel
Power to Control Panel
Pump Model Chamber Height
Service drop/household
Circuit breaker panel
OGT10S2AU Single Pole 16 Amp D Curve
