STEP 3.
—
Steps & Tips:
- Select a visible location that is less than 11 meters
from the pump chamber. The system comes with 15
meter cables by default. If a suitable location is not
within this radius, then longer cables can be ordered, or
the control panel can be pole mounted.
- All penetrations through the pump chamber must
be sealed watertight.
- Inlet not yet connected – shown for reference only.
- Leave approximately 2 metres of cable inside the pump
chamber to allow pump removal for maintenance.
Please note: The control panel must be mounted at least 1 metre above the ground level or the high water mark in flood prone areas.

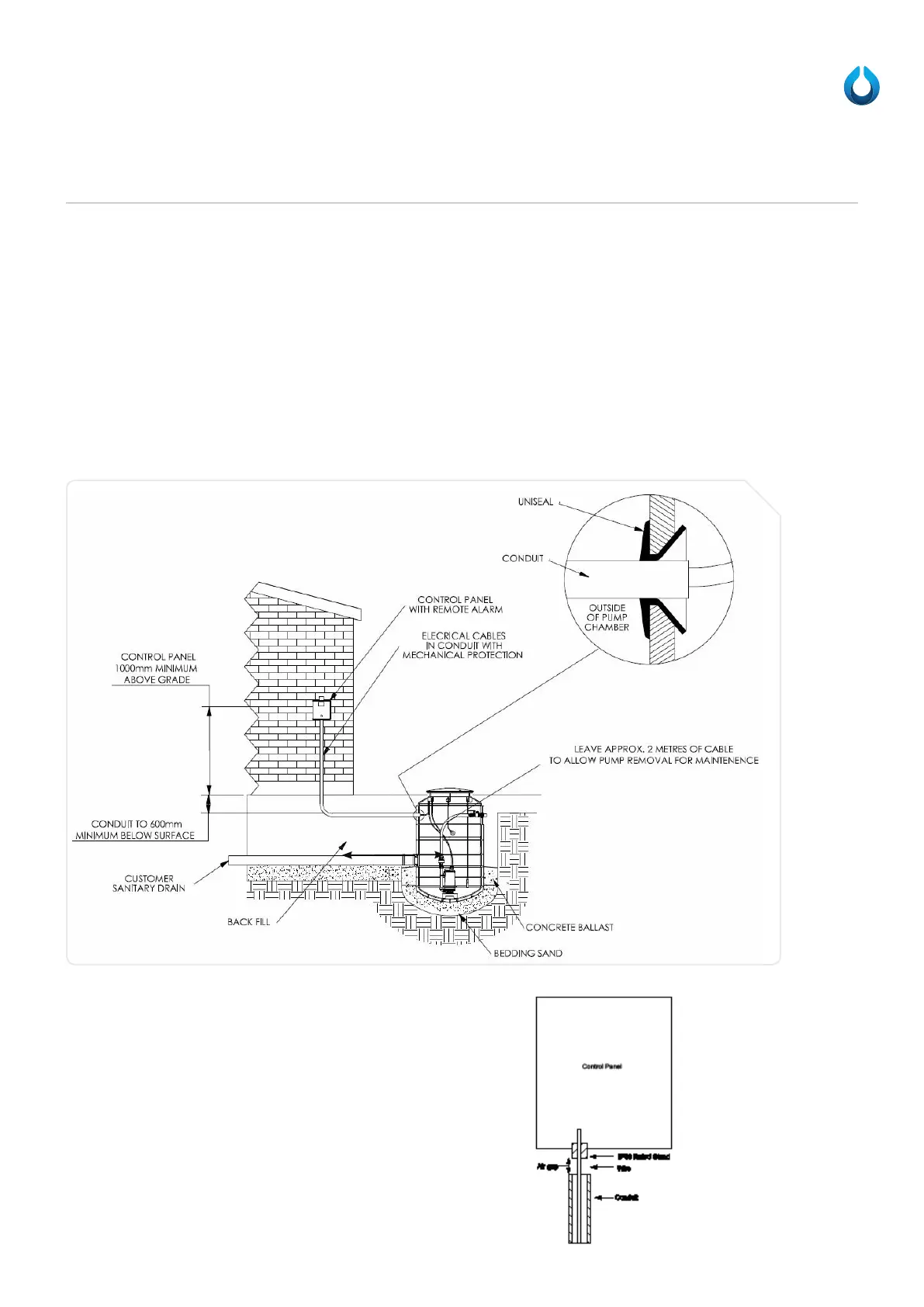

Running Cable from Pump Chamber to Alarm or Control Panel
MAX 11M
Sealing of Control Panel Conduit
Steps & Tips:
- Conduit should be sealed to prevent water infiltration.
- Before installing the cover make certain that all cords
are tied up and clear of the pump level control.
