Aquatec Simplex - Attach Rope to Pump, Record Pump Data; To Attach Lifting Device to Pump; Attaching Lifting Device

Page 17
STEP 9.
—
Steps & Tips:
- Remove parts from box inside unit.
It should contain the following items: liing device
(rope), Inlet fitting, flexible coupling
and uniseal options.
- Record pump information on user guide for
future reference.
- NEVER LOWER OR RAISE THE PUMP
BY THE ELECTRICAL CABLE
- To attach liing device to pump:
1. Make a small overhand loop in the rope.
2. Bring the short end through the overhand loop.
3. Place short end behind the fixed part of the rope.
4. Bring end around and back into the loop.
5. Pull on the fixed end of the rope away from
the loop to tighten the knot.
Attach Rope to Pump, Record Pump Data

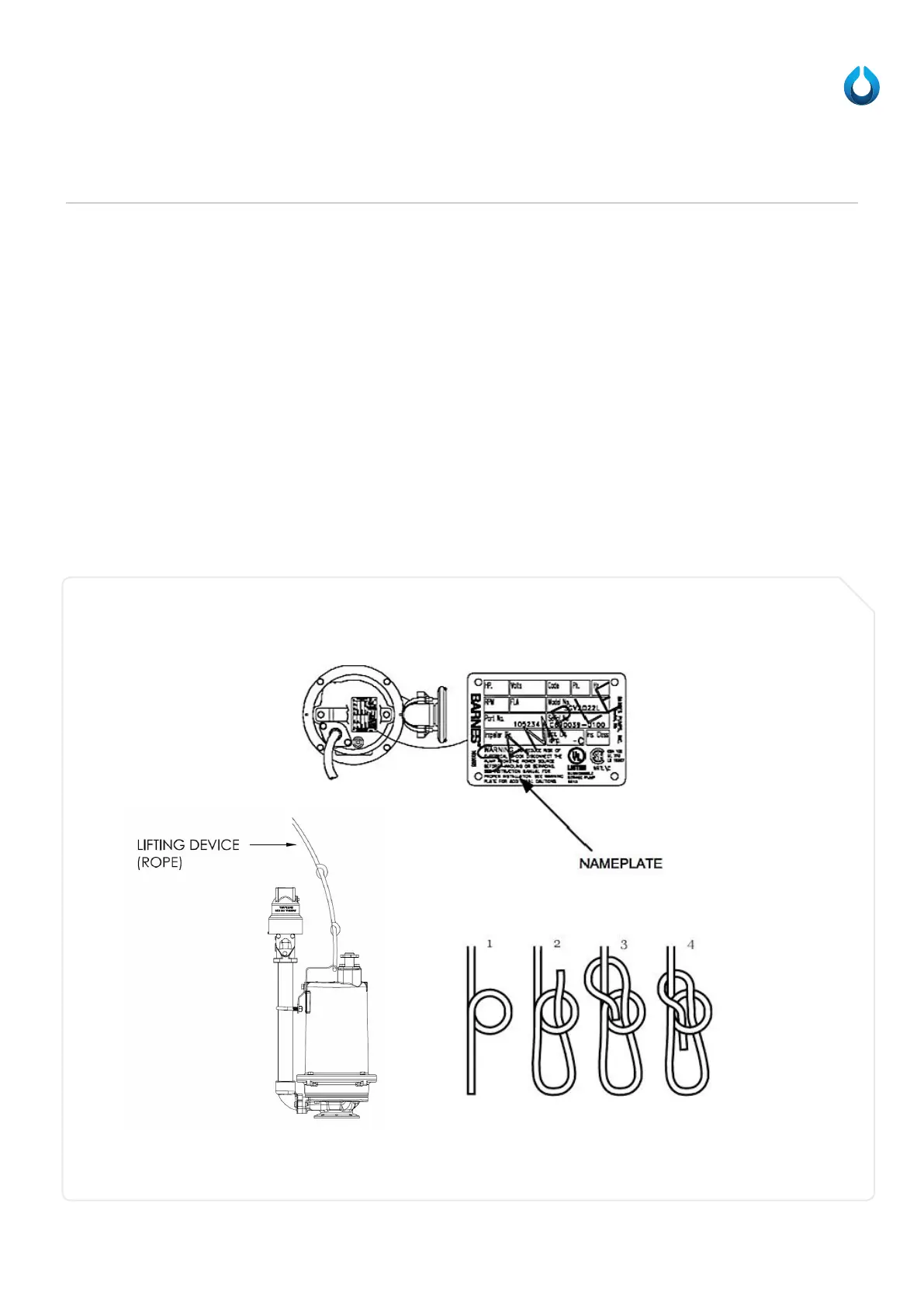

Figure 9: Attaching Liing Device
