arcelik K60365 - Page 47

45

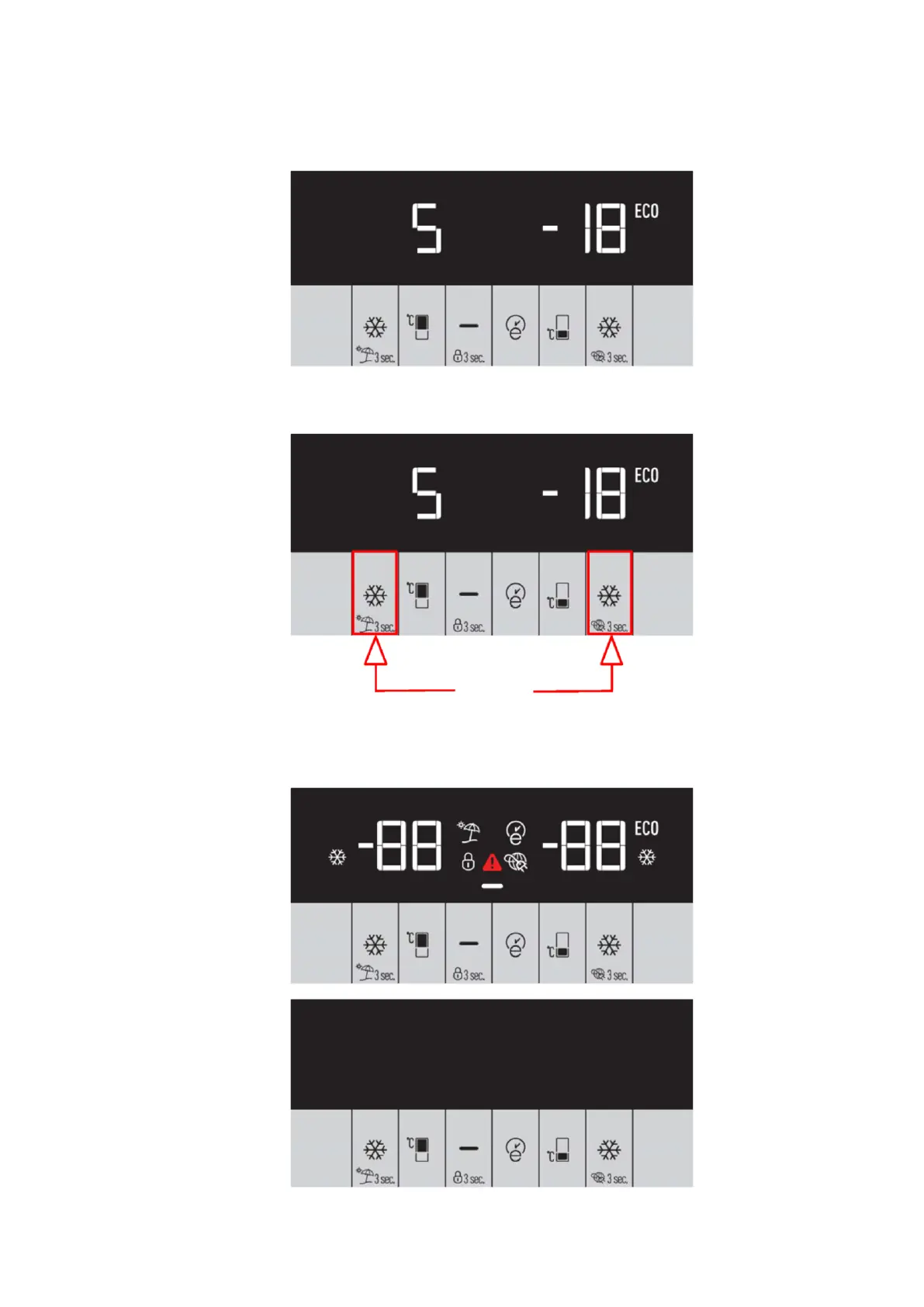

The display board we use in the refrigerator has a six-key system. Set values are
shown in the display.
Within the first 30 seconds after the refrigerator is energized, it can be taken to the Service Mode by simultaneously pressing Quick Cool
and Quick Freeze buttons for 2 seconds.
Following steps are applied respectively in the Service Mode.
Step 1: Buzzer will be active for a short time. After that, LEDs will illuminate for 0.5
sec and go off for 0.5 sec.
Service Mode (2 sec)
