Step 2: When any button is pressed, Step 1 is terminated.

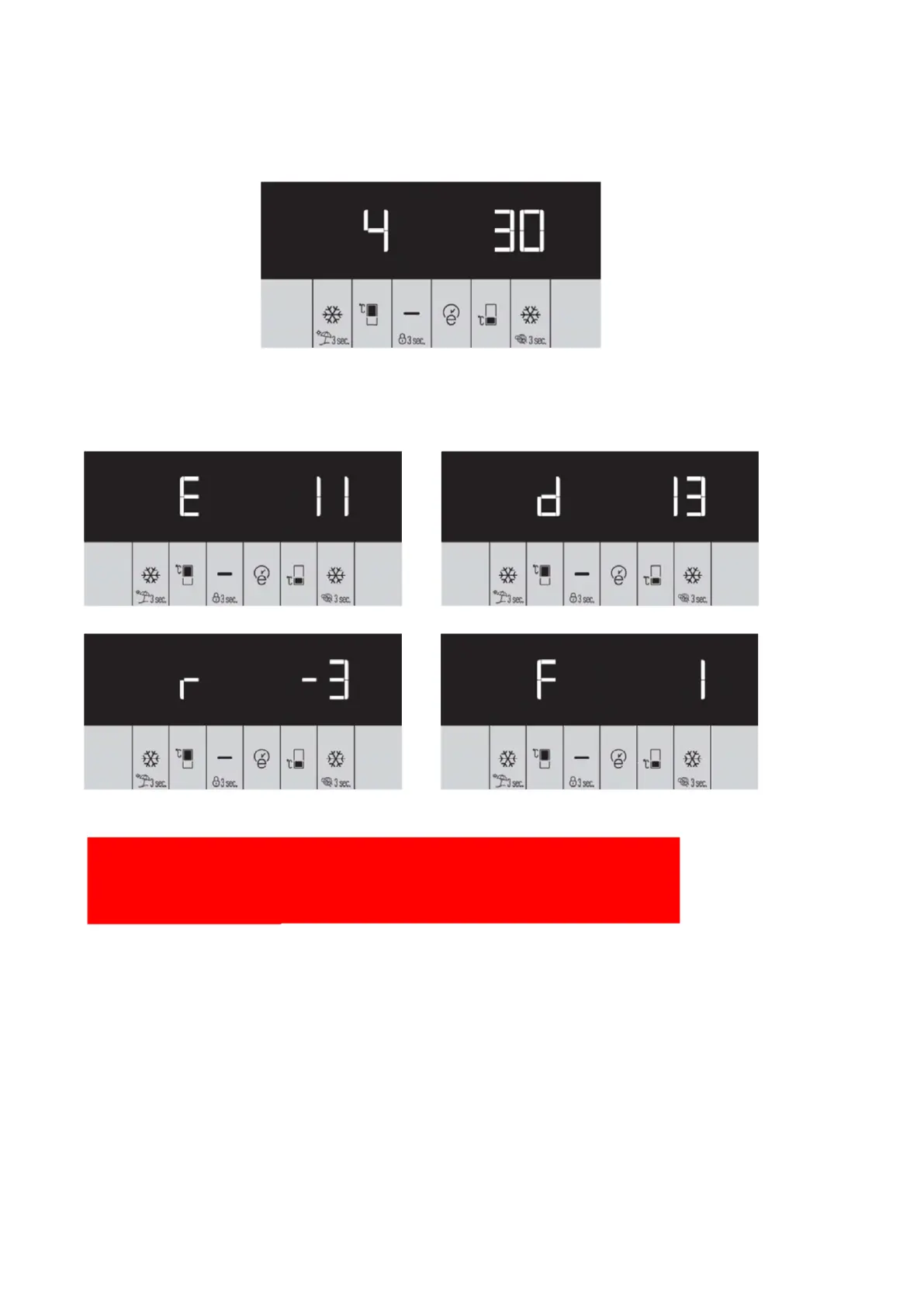

Software version and revision info are shown on the display as follows. Note:
Updated version revision should be checked from the technical drawing.
View 2 (Freezer Air Sensor):
Step 3: When any button is pressed,
all sensors are shown on the display in a loop with 1 sec intervals.
Open Circuit Error: If value read from ADC is higher than 245, it means that there is an open circuit condition, and in the display this is shown
by "O" and "P" (Open Circuit). "!" icon flashes and gives alarm.
Meanings of letters shown in the second segment are as follows:
E: FF Eva Sensor
r: Freezer Air Sensor
d: Defrost Sensor
