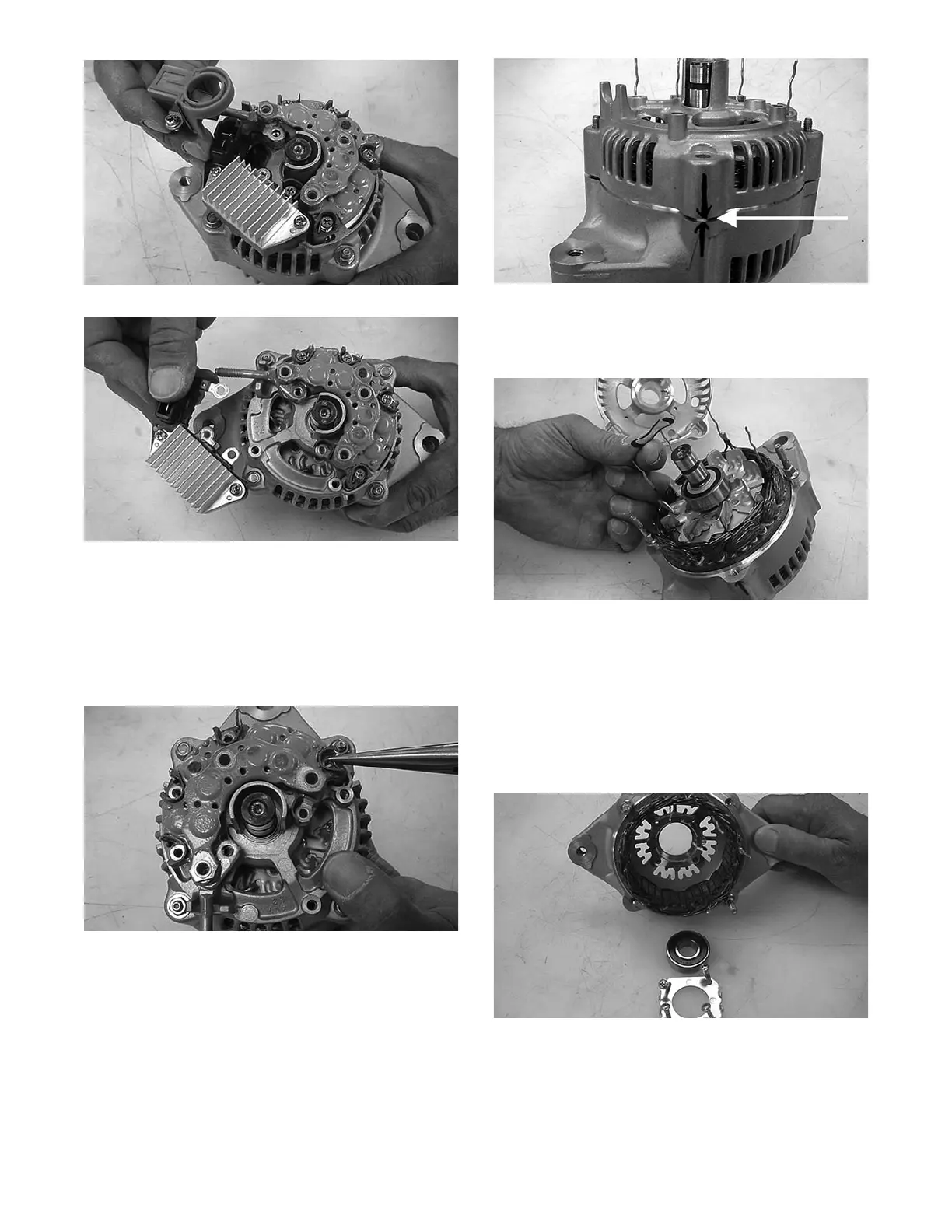

5. Remove the four cap screws securing the stator
windings to the rectifier assembly; then remove
the one screw securing the stator to the alternator
housing. Remove the stator.
NOTE: The stator wires will have to be straight-
ened for removal.
AO302
6. Remove the two cap screws and the two nuts
connecting the two alternator housing covers.
Prior to removing the covers, make sure to make
corresponding alignment marks on the covers for
assembling purposes.
AO303A
NOTE: Be sure to take note of the location of the
wave washer which is positioned in the alternator
housing outside the bearing.
AO304
7. Using a press, remove the rotor assembly from the
alternator housing. Inspect the bearings for
roughness.
NOTE: If replacement of the bearing is neces-
sary, remove the four Phillip-head screws securing
the bearing retainer located in the alternator hous-
ing. Using a suitable driver, press the bearings out
of the alternator housing.
AO305
