7-31
7
AL190D

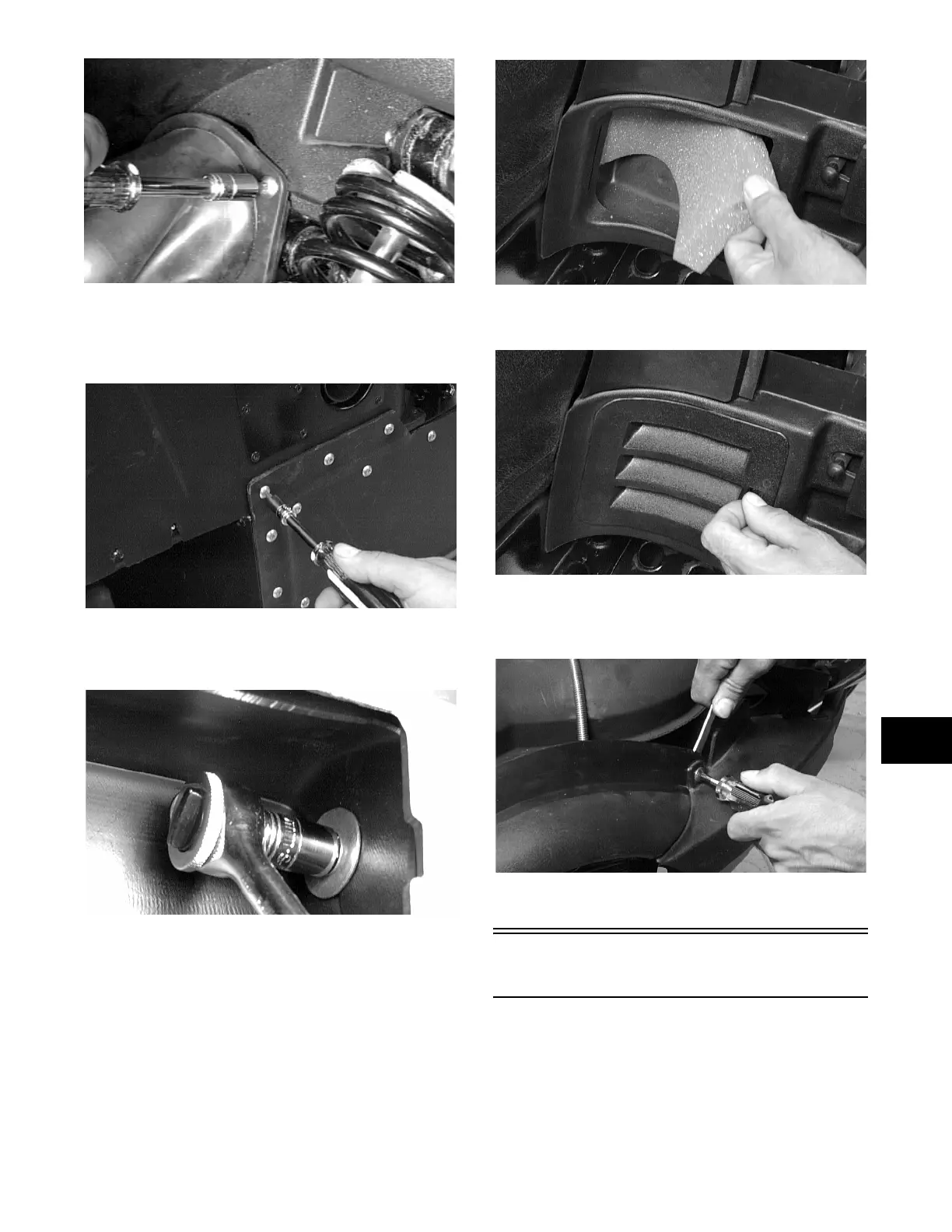

7. Install the right-side belly pan torx-head screws to
the center belly pan and tunnel; then return the
snowmobile to an upright position.
AL188D
8. Install the right-side cap screws securing the
bumper to the air-intake silencer plenum.
AL186D
9. Insert the right-side louver foam.
8
AL185D
10. Install the right-side louver.
AL184D
11. Install the right-side front belly pan cap screw,
washer, and lock nut.
AL183D
Gas Tank/Seat
Assembly
NOTE: Some components may vary from model
to model. The technician should use discretion
and sound judgment.
REMOVING (Touring/Trail)
1. Remove the console (see Console in this section).
To Next Page
