7. Disconnect the fuel hose from the carburetor.
NOTE: Be prepared to wipe up any fuel spillage.
8. Pull the recoil starter rope out approximately 60
cm (24 in.); then tie a slip-knot in the starter rope
below the console and allow the rope to slowly
retract against the starter case.
9. Remove the knot at the handle and remove the
handle; then thread the rope through the bushing in
the console.

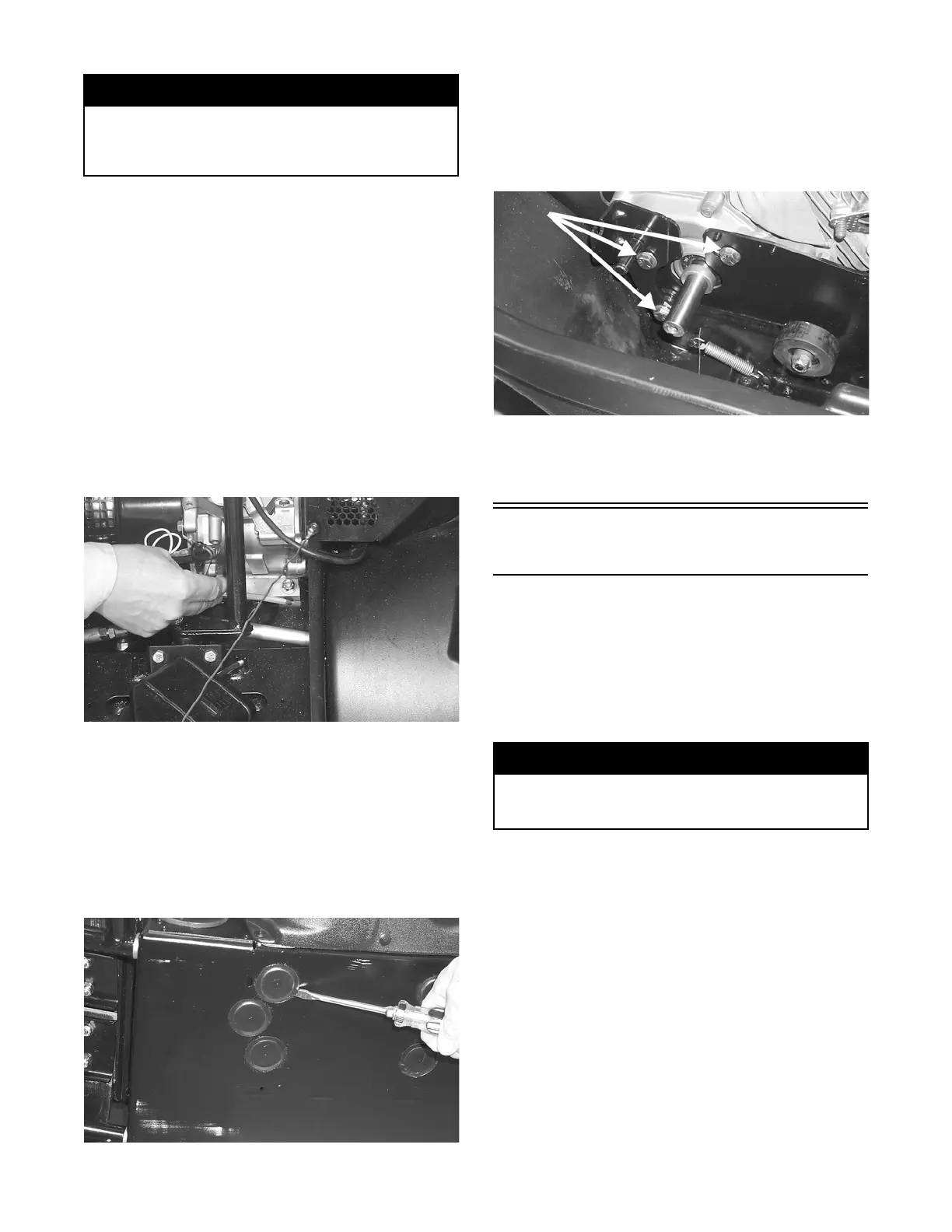

10. At this point, scribe a line at the front of the engine
and measure the distance between the crankshaft
and the driveshaft. Record the measurement for
installing purposes.
A048
11. Lay the snowmobile on its side.
NOTE: A piece of cardboard should be used to
protect the finish.
12. Using a flat-blade screwdriver, remove the four
belly pan plugs covering the engine mounting cap
screws; then remove the cap screws. Account for
eight washers and four lock nuts.
A049
NOTE: The front center plug is to access the oil
drain plug.
13. Place the snowmobile in the upright position; then
on the left-hand side of the engine, remove the
three cap screws securing the engine and brake
bracket to the front end.
A050A
14. Remove the engine from the engine compartment.
Removing Engine
(660 cc Models)
1. Remove the negative cable from the battery; then
remove the positive cable. Remove the battery
hold-down plate and the battery vent hose; then
remove the battery.
NOTE: There is no vent hose on the turbo-model
battery.
2. Remove the drain access plug from bottom of
belly pan; then remove the oil drain plug to drain
the oil.
3. Disconnect the two instrument panel electrical
connectors near the front of the hood.
! WARNING
Whenever any maintenance or inspection is made
on a fuel system when there may be fuel leakage,
there should be no welding, smoking, open flames,
etc., in the area.
! WARNING
Battery acid is harmful if it contacts eyes, skin, or
clothing. Care must be taken whenever handling a
battery.
To Next Page
