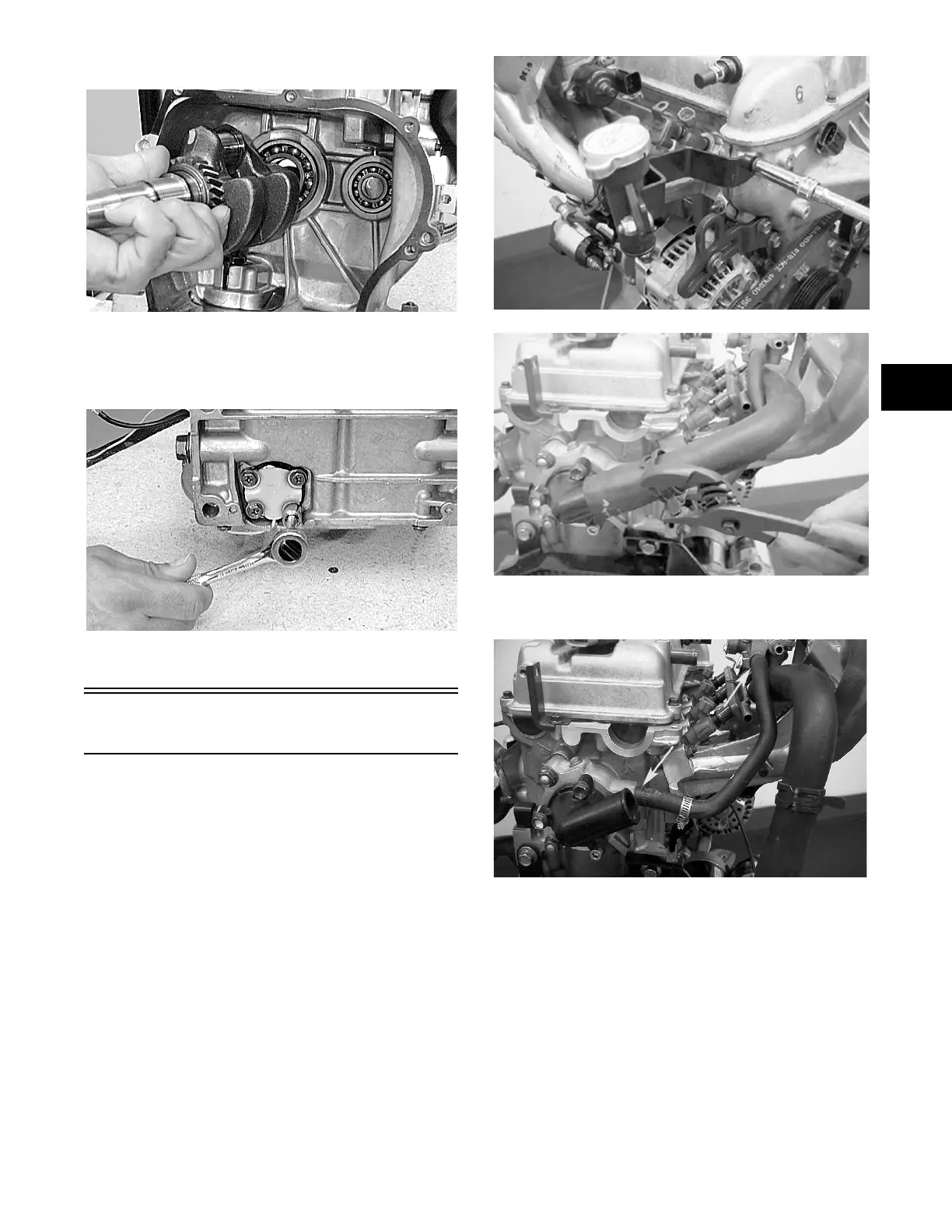

25. Remove the crankshaft.
GM124D
26. Remove the cap screws securing the oil level
sensor plate to the crankcase; then remove the
plate.
GM126D
Disassembling Engine
(660 cc Models)
1. Remove three cap screws holding the grooved belt
cover; then remove the belt cover. Remove the cap
screw holding the oil level stick tube in place; then
remove the tube and the oil level stick.
2. Remove the coolant filler neck and hose assembly
from the rear of the engine.
MD1690
MD1691
3. Remove the throttle body heater hose.
MD1679
4. Remove the intake manifold support bracket and
all wiring loom tabs and brackets.
