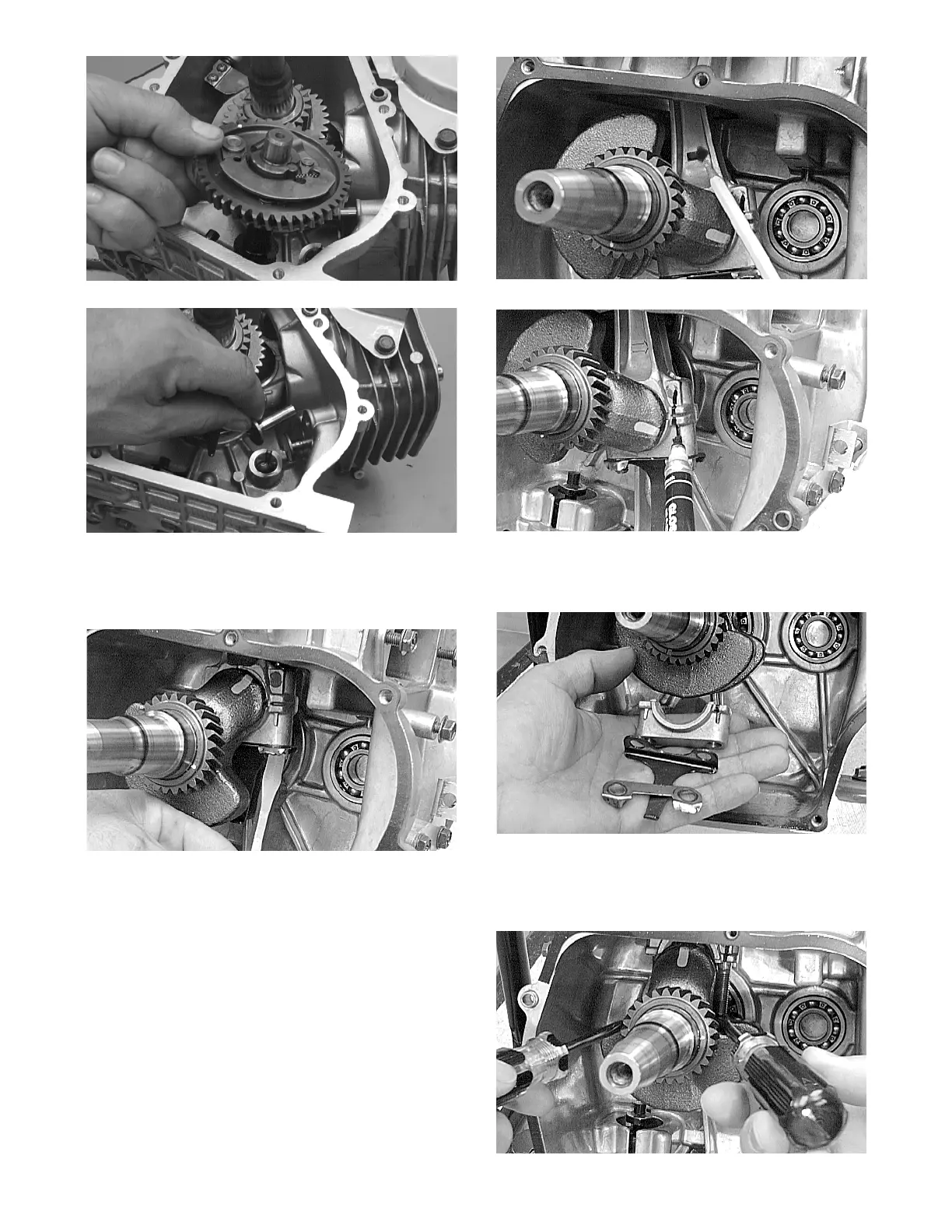

21. Rotate the crankshaft until the piston is at the top
of the stroke; then using a chisel, loosen the
connecting rod nut locking tabs.
GM119D
22. Note the direction of the arrow on the connecting
rod and mark the connecting rod and end cap for
reference during installation.
GM121D
GM120D
23. Remove the connecting rod end cap and account
for the splasher plate and lock tab.
GM123D
24. Using two flat blade screwdrivers between the
connecting rod studs and the crankshaft web, push
upward on the piston.
GM122D
