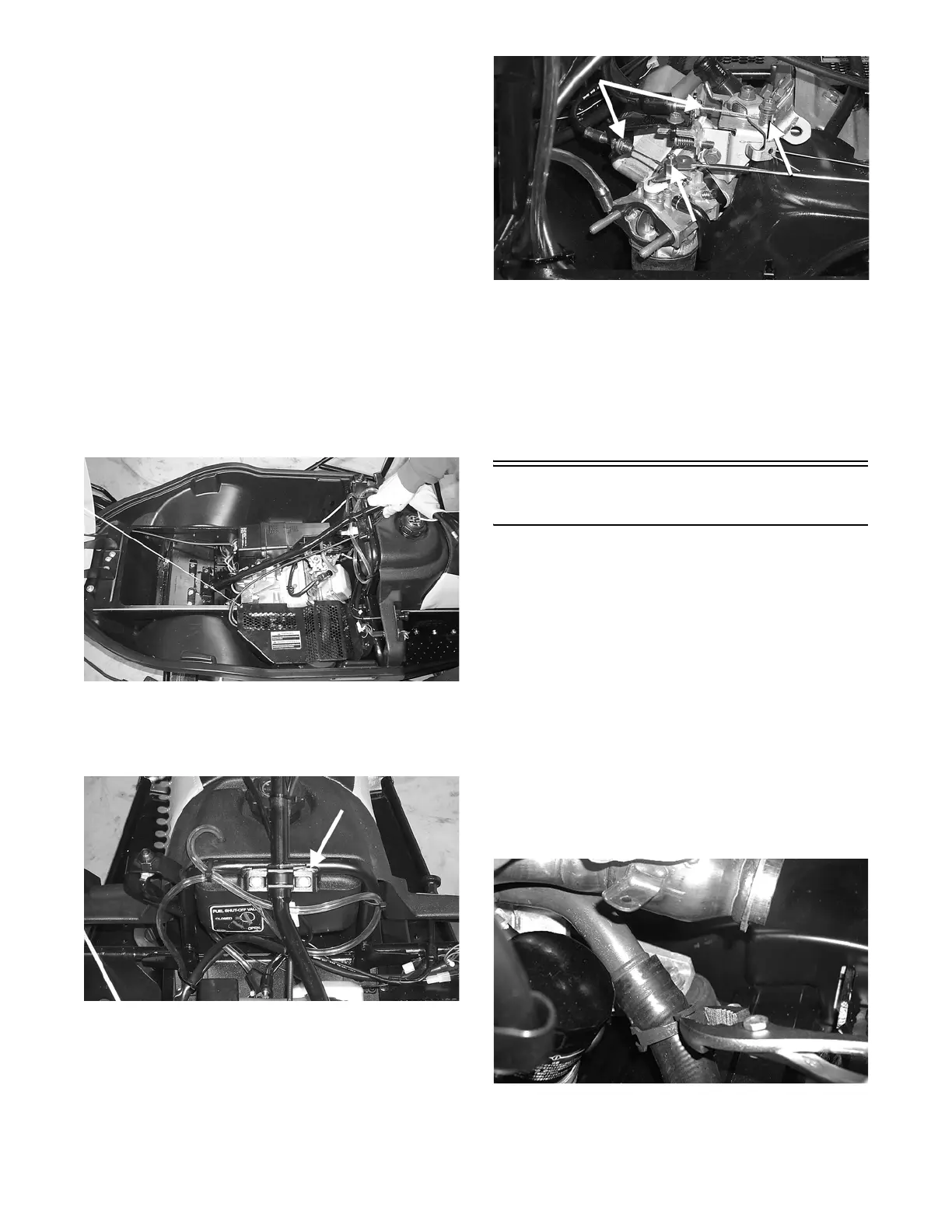

2-62
7. Thread the recoil starter rope through the bushing
in the console and the handle; then tie a knot at the
end of the rope and pull the handle up and onto the
knot.
8. Untie the slip-knot at the starter case and allow it
to slowly rewind into the case.
9. Connect the fuel hose to the carburetor; then turn
the gas tank shut-off valve to the OPEN position.
10. Connect the engine wiring harness to the main
wiring harness; then secure the wiring harnesses
with a cable tie.
11. Install the tie rods on the steering post; then secure
with lock nuts (threads coated with blue Loctite
#243) and washers. Tighten to 2.5-2.8 kg-m (18-
20 ft-lb).
12. Place the steering post in position in the lower
steering post bearing and on the steering post
support.
A025
13. Place the upper steering post bearing into position
on the steering post and support; then secure with
the bearing retainer, cap screws, and lock nuts.
A023A
14. Position the choke and throttle cables in the
bracket; then connect them to the carburetor.
A046A
15. Tighten the adjustment jam nuts securely.
NOTE: At this point, install the drive chain (see
Drive Chain and Sprockets sub-section in
Section 8).
Installing Engine
(660 cc Models)
1. Install the oil drain plug to the oil pan and tighten
to 5.0 kg-m (36 ft-lb) and place the access plug
into the drain hole in the belly pan.
2. Using an appropriate hoist, carefully lower the
engine into the engine compartment.
NOTE: Engine lift points consist of a bracket on
the front right side of the exhaust manifold and an
integral eye of the alternator adjustment bracket.
NOTE: It may be necessary to screw the engine
torque bumper in to allow the engine mounts to
line up properly.
3. Connect the recirculation hose to the main feed
coolant hose; then secure the hose with a clamp.
AO187
4. With the clamps in place on the main coolant hose,
connect the hose to the outlet at the underside of
the exhaust manifold.
To Next Page
