2-63
2

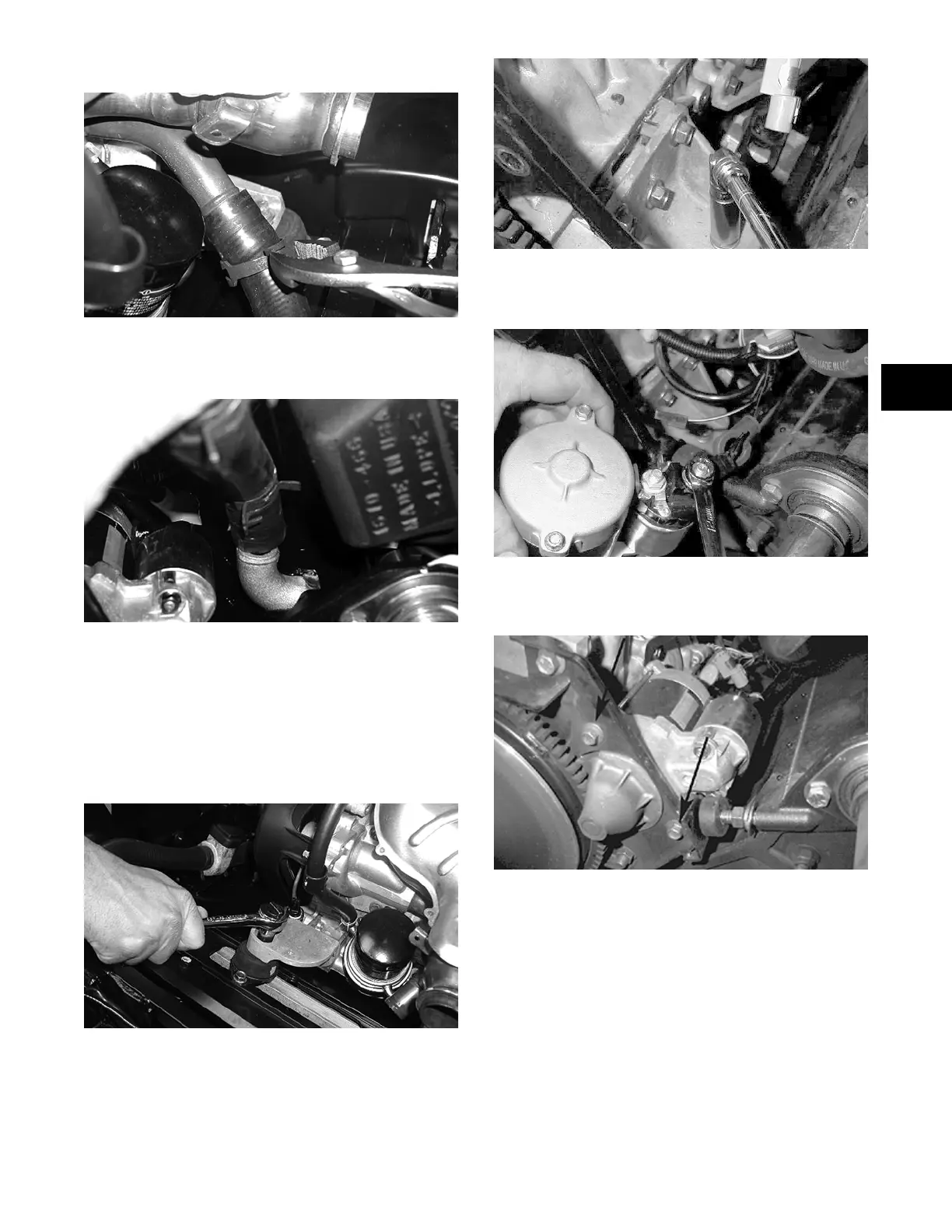

5. Secure with the hose clamp.
AO187
6. With the clamps in place on the hose, connect the
overflow tank hose to the filler cap housing.
AO182
7. With the engine mounts in place, first secure the
two front and then the two rear engine mount cap
screws (coated with blue Loctite #242). Tighten
the front mounts to 2.6 kg-m (19 ft-lb) and the rear
mounts to 4.8 kg-m (35 ft-lb).
NOTE: At this point if the torque bumper was
turned in, return it to the original position.
AO190
MD1698
8. Connect the starter solenoid and the starter motor
cable.
MD1700
9. Install the starter to the engine and secure with the
two cap screws. Tighten to 4.8 kg.m (35 ft-lb).
MD1437
NOTE: On the Bearcat after installing the starter,
connect the coolant hose from the filler neck hous-
ing to the heat exchanger.
To Next Page
