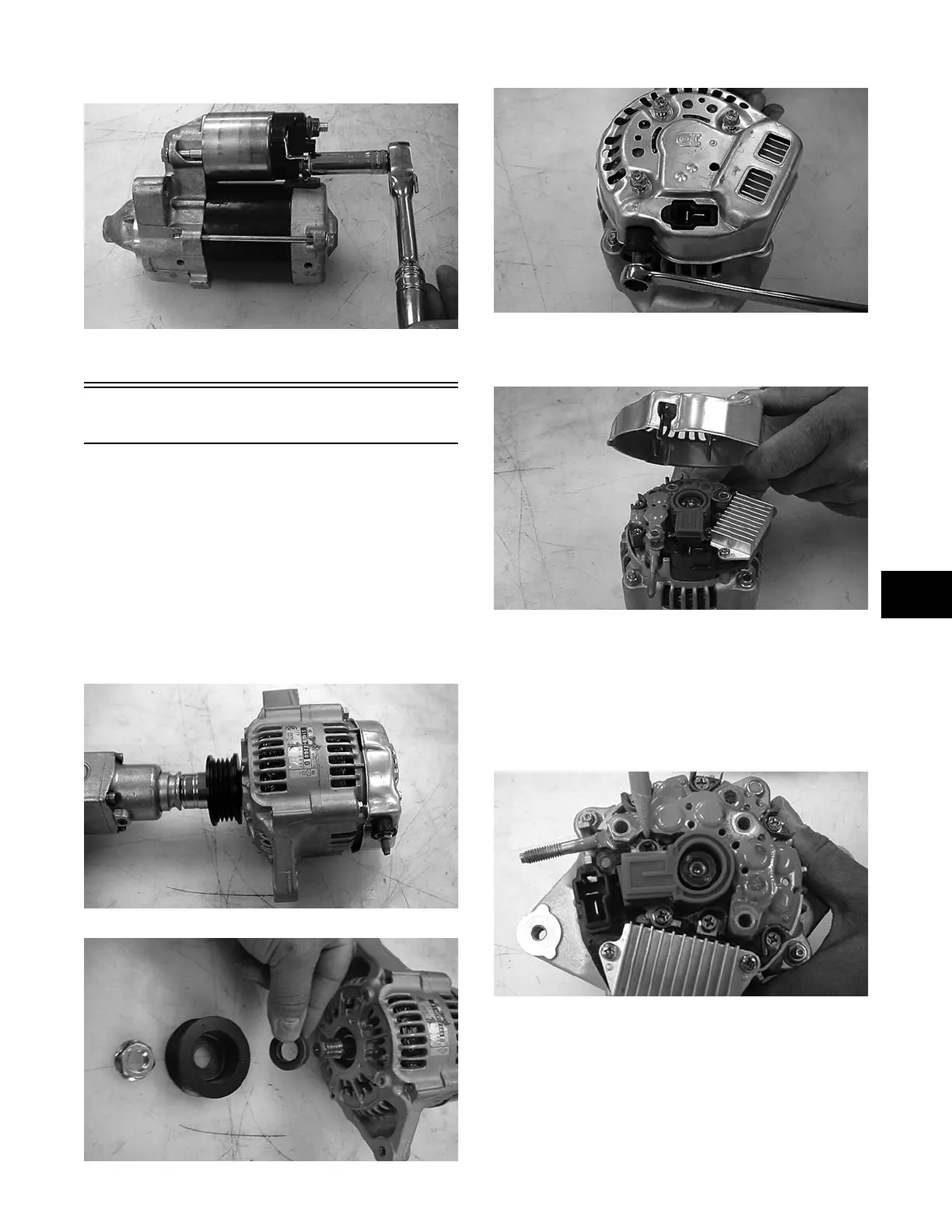

8. Secure the starter wire strap to the solenoid using
the existing solenoid nut. Tighten securely.
AO281
Alternator
(660 cc)
NOTE: Prior to servicing the alternator, check
output to the battery. With the engine running,
alternator output should be 14.2-14.8 V (±10%). If
output is lower than specification, proceed to dis-
assembling and testing the alternator compo-
nents.
DISASSEMBLING
1. Using a 3/8 in impact wrench and a 22 mm socket,
remove the alternator pulley nut; then remove the
pulley and spacer.
AO295
AO296
2. Remove the positive lead nut and insulator.
AO297
3. Remove the screws securing the dust cover; then
remove the cover.
AO298
4. Remove the two screws securing the brush holder
assembly and the three screws securing the voltage
regulator. Remove the brush holder and voltage
regulator.
NOTE: Make sure to take note of the screw loca-
tions for assembling purposes.
AO299
