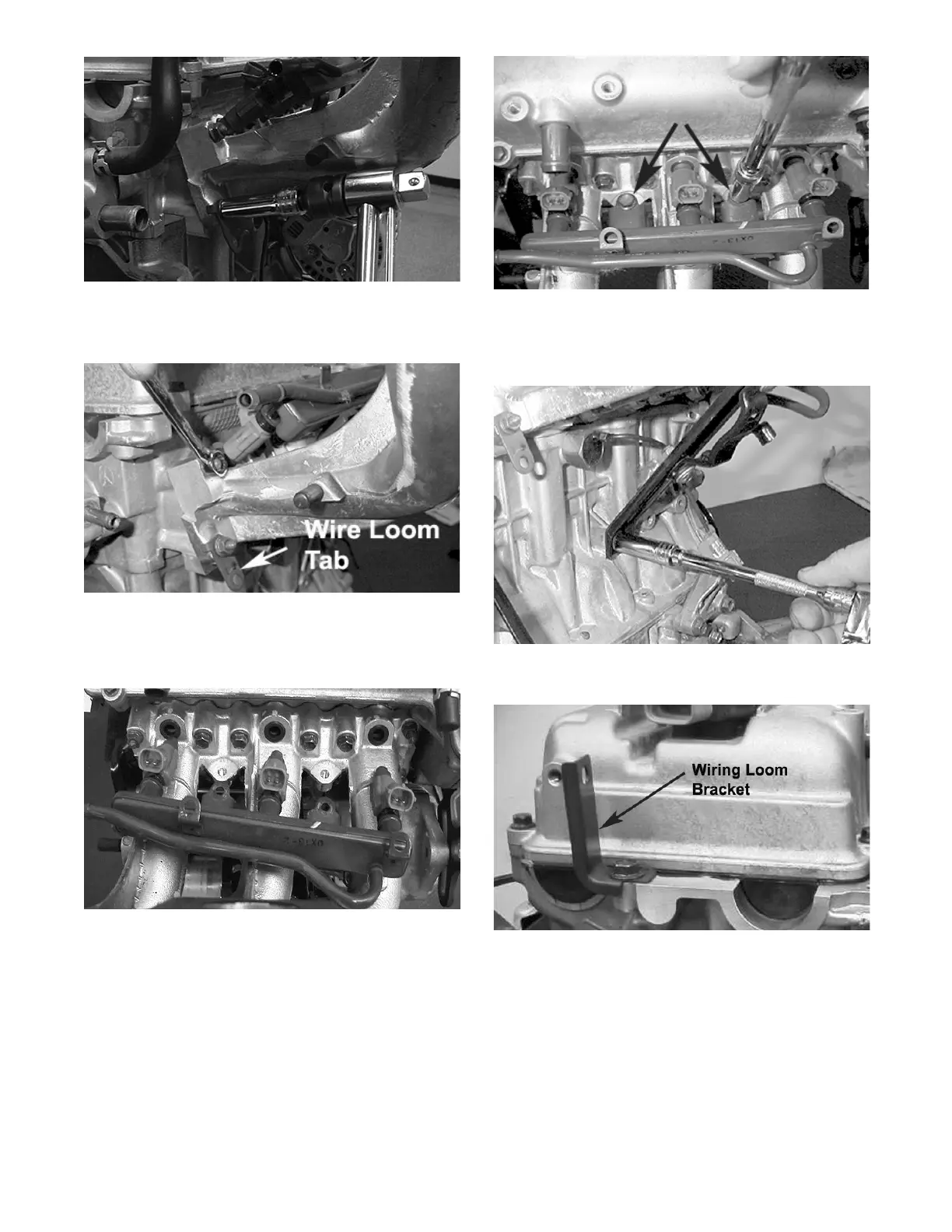

NOTE: The wire loom tab mounts to the stud on
the lower (PTO-end) of the air-intake manifold.
MD1452
63. Starting from the center of the manifold, install the
fuel injector manifold and injectors. Tighten the
two cap screws to 1.3 kg-m (9.5 ft-lb).
MD1676
MD1450
64. Install the air-intake manifold support bracket and
all wiring loom tabs and brackets. Tighten to 2.3
kg-m (16.5 ft-lb).
MD1454
65. Install the spark plug coil wiring loom bracket.
MD1675
66. Install the throttle body and a new gasket. Tighten
the four cap screws to 2.4 kg-m (17 ft-lb) (STD) or
to 1.3 kg-m (9.5 ft-lb) (turbo).
