2-65
2
MD1732

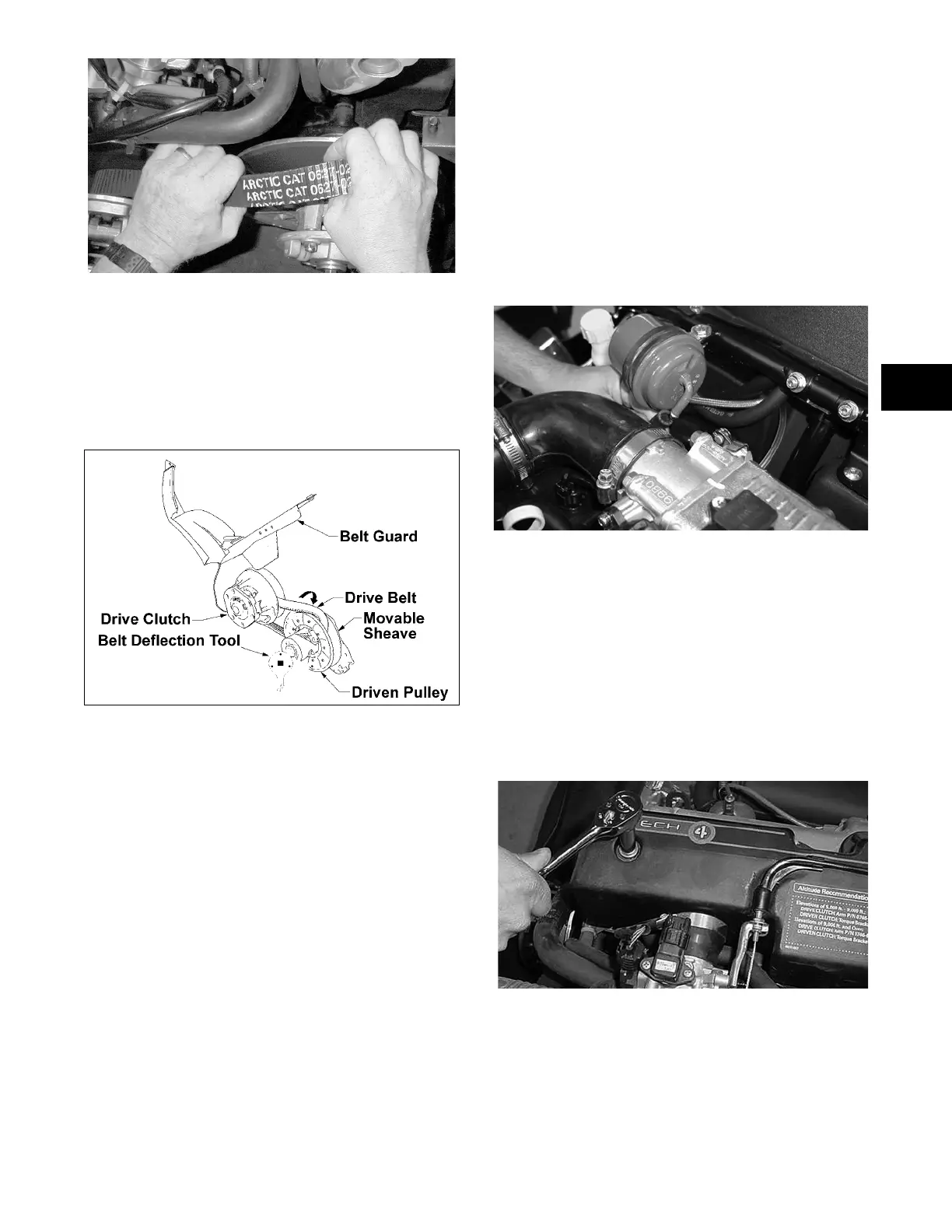

17. On turbo models, install the drive belt using the
following procedure:
A. With the O-ring and shim washers removed,
carefully thread the sheave adjuster back into
the driven pulley; then tighten the adjuster with
the deflection tool until it bottoms against the
driven shaft.
739-267B
NOTE: By bottoming the sheave adjuster against
the driven shaft, the sheaves at the driven pulley
will spread far enough to allow the installation of
the drive belt.
B. Place the drive belt (so the part number can be
read) between the sheaves of the drive clutch
first; then between the sheaves of the driven
pulley.
C. Using the deflection tool, remove the sheave
adjuster from the end of the driven pulley.
D. Place the shim washers and O-ring (as noted in
removing) onto the sheave adjuster; then
carefully thread the sheave adjuster back into
the driven pulley. Tighten the adjuster securely
using the deflection tool.
E. Close the belt guard; then install the driven
pulley plug.
18. With the two plastic collars, belt guard pin, and the
hairpin clip, secure the belt guard in place.
19. Connect the fuel hose and throttle body heater
hose to the throttle body and secure with the hose
clamps.
20. Connect the fuel hose to the fuel filter and the
throttle body heater hose to the main return
coolant hose.
AO188
NOTE: On turbo models, install the intercooler
bracket onto the engine; then tighten the two
flange nuts securely.
21. Install the air silencer bracket to the engine and
secure with the lock nut.
22. Connect the lower drain hose to the outlet at the
bottom of the belly pan.
23. On the standard model, install the air silencer (see
appropriate Servicing Air Silencer in Section 3).
AO271
24. Install the throttle cable to the throttle body; then
secure the bracket to the intake plenum.
To Next Page
