75
CWI-012

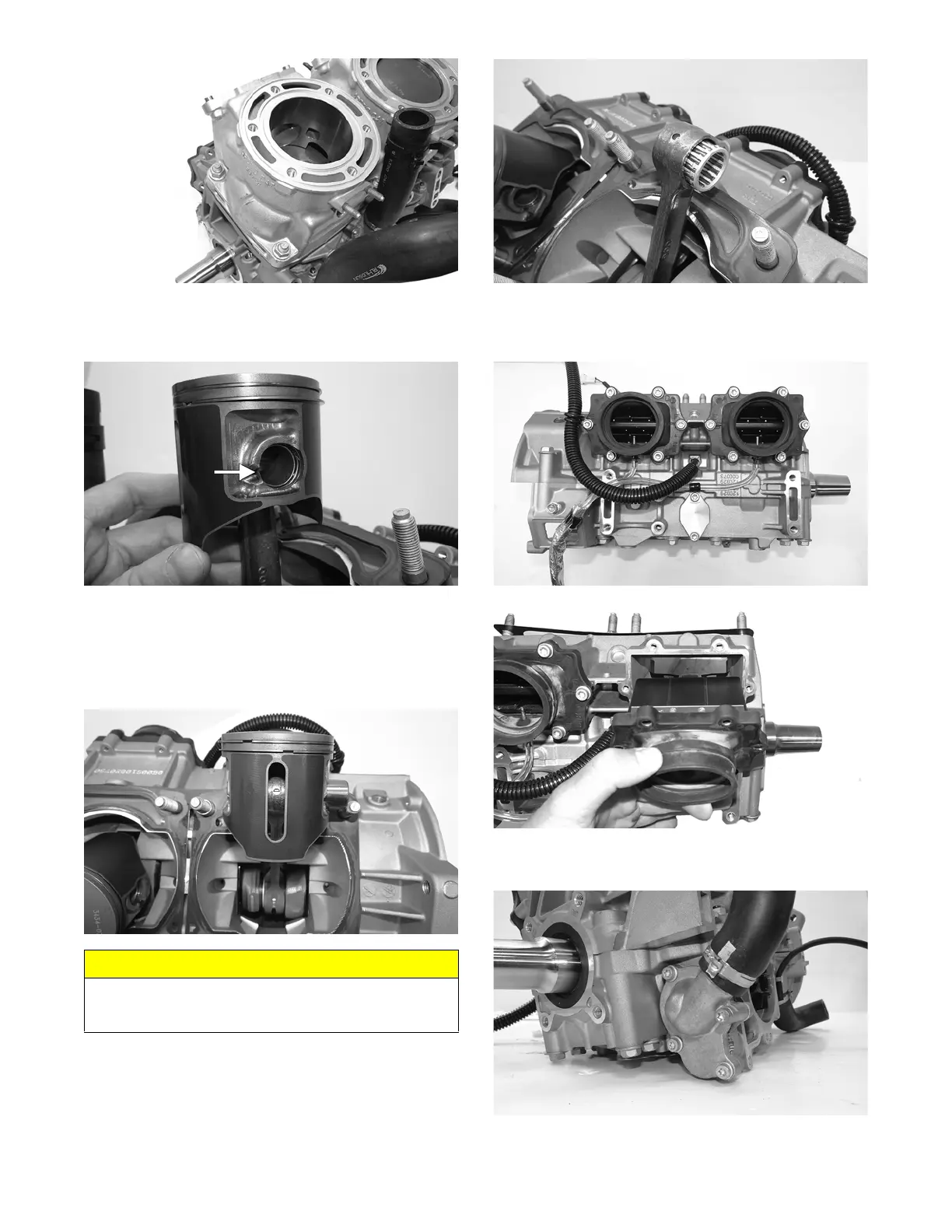

13. Remove the PTO-side piston-pin circlip from the
PTO-side piston; then remove the MAG-side pis-
ton-pin circlip from the MAG-side piston.
CWI-013A
14. Using Piston Pin Puller and medium Extractor Nut,
remove the piston pins from both pistons.
NOTE: For proper assembly, keep all MAG-side
components and all PTO-side components separated.
Assemble them on their proper sides.
CWI-014
15. Lift the pistons clear of the connecting rods and
remove the small-end connecting-rod bearings; then
remove the piston rings. Keep each piston with its
rings; keep each piston pin and bearing together as a
set.
CWI-015
16. Remove the screws securing the intake flanges.
Remove the intake manifolds and reed valve assem-
blies.
CWI-020
CWI-081
17. Remove the four screws securing the thermostat cap;
then remove the cap, gasket, and thermostat.
CWI-017
NOTE: For assembling purposes, note that the
bypass/check valve is directed up.
CAUTION
DO NOT use any type of punch to drive the piston pin
free of the piston; damage may result. Use a piston-pin
puller only.
