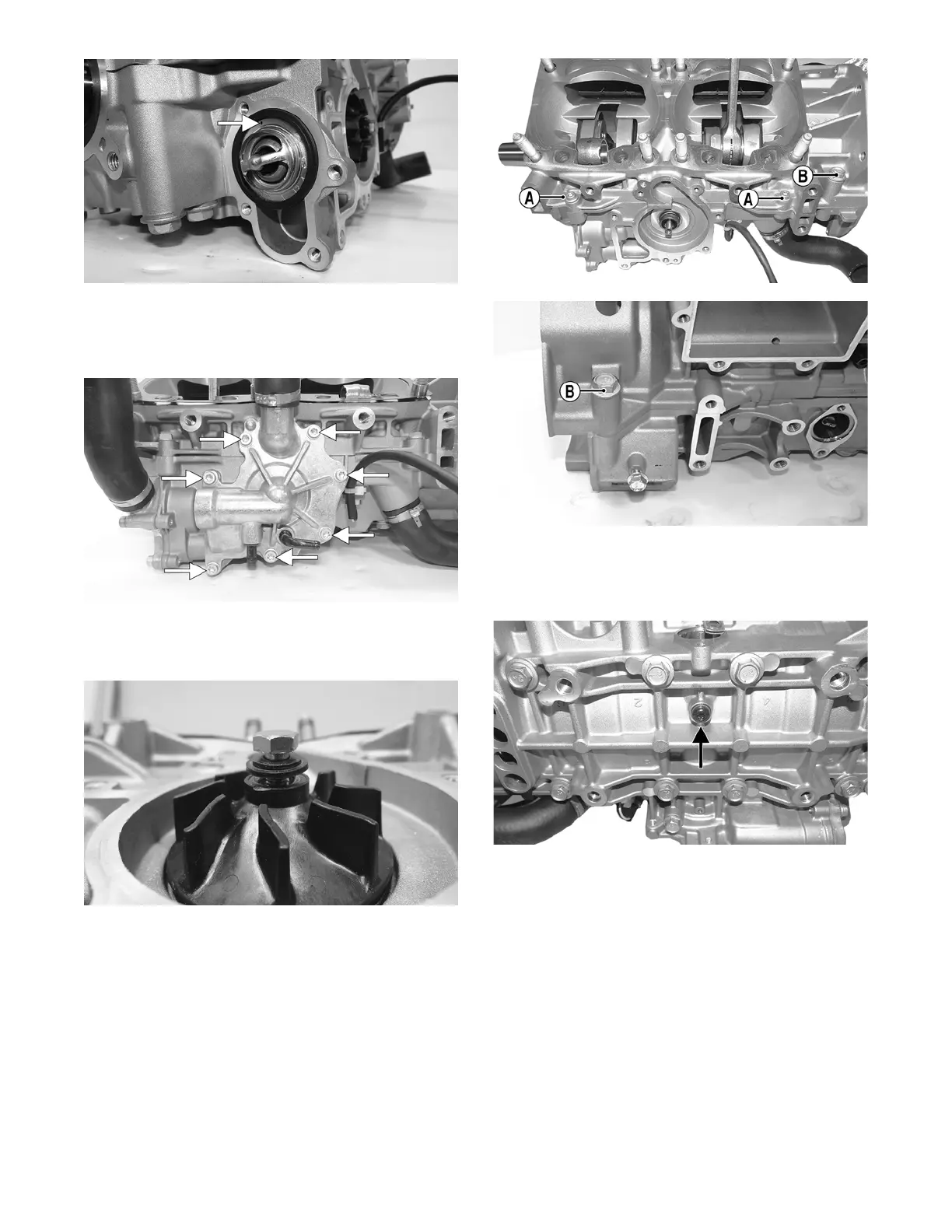

18. Remove the seven screws securing the water pump
cover to the crankcase and remove the cover.
Account for the O-ring gasket and the alignment
pins.
CWI-016A
19. Remove the cap screw securing the impeller.
Account for the rubber washer and gasket behind the
cap screw. Remove the impeller from the shaft.
CWI-082
20. Prior to turning the engine upside down, remove the
two crankcase torx screws (A) from the water pump
side of the engine; then remove the two cap screws
(B) from the magneto housing.
CWI-075A
CWI-023A
21. Tip the crankcase assembly up onto the water pump
side; then remove the black torx-screw from the bot-
tom of the crankcase and tip down and drain the
injection oil from the center cavity into a container.
CWI-071A
22. With the bottom side up on two support blocks,
remove the cap screws securing the crankcase
halves.
NOTE: Remove the cap screws in order from #10 to
#1. The numbers are embossed next to each cap
screw.
