ARECONT VISION AV100 VIDEO SYSTEM USER MANUAL
30
Arecont Vision 425 E Colorado St, 7
th
Floor Glendale, CA 91205 Revised 12/20/2010
www.arecontvision.com
www.arecontvision.comwww.arecontvision.com
www.arecontvision.com

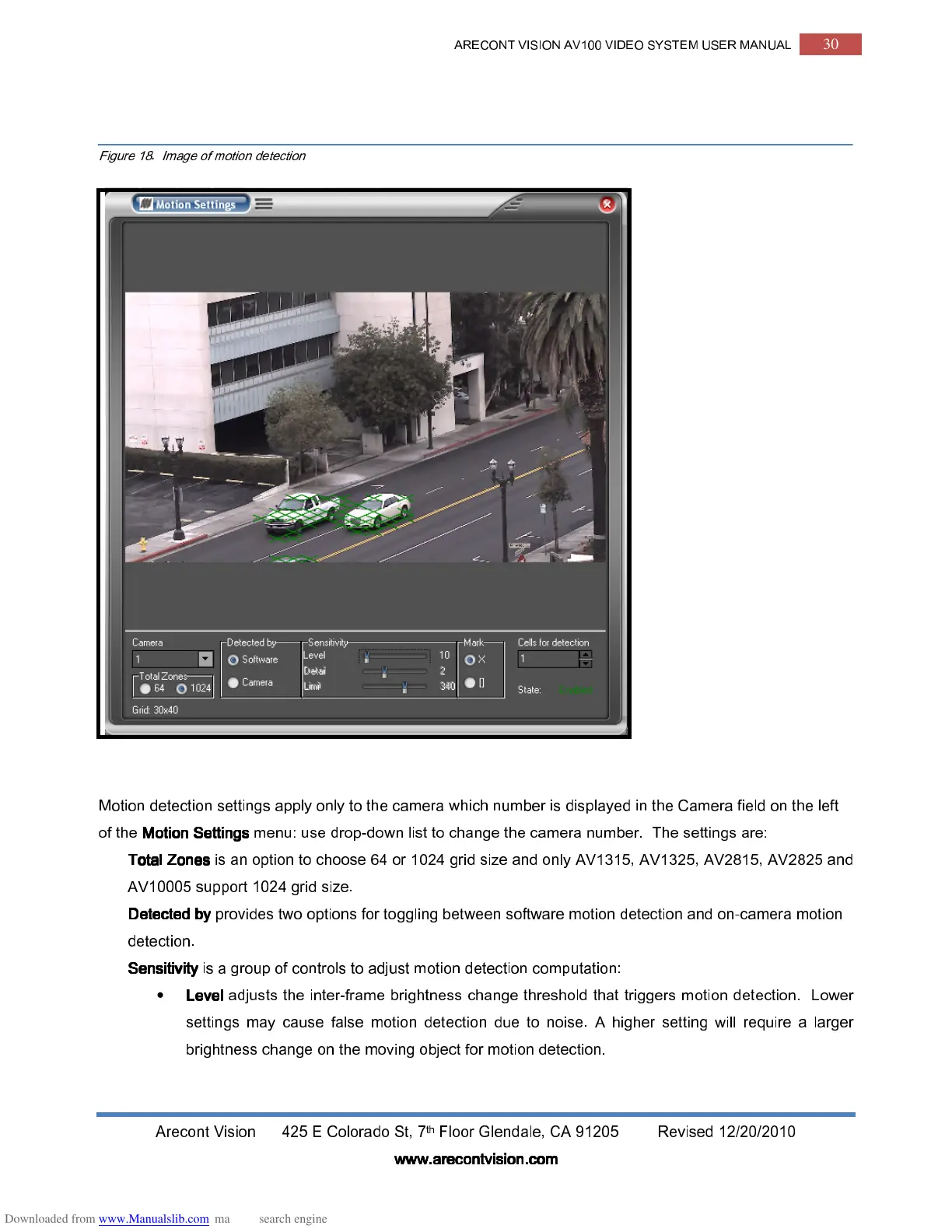

Figure 18. Image of motion detection
Motion detection settings apply only to the camera which number is displayed in the Camera field on the left
of the Motion
Motion Motion
Motion Settings
SettingsSettings
Settings menu: use drop-down list to change the camera number. The settings are:
Total Zones
Total ZonesTotal Zones
Total Zones is an option to choose 64 or 1024 grid size and only AV1315, AV1325, AV2815, AV2825 and
AV10005 support 1024 grid size.
Detected by
Detected byDetected by
Detected by provides two options for toggling between software motion detection and on-camera motion
detection.
Sensitivity
SensitivitySensitivity
Sensitivity is a group of controls to adjust motion detection computation:
• Level
LevelLevel
Level adjusts the inter-frame brightness change threshold that triggers motion detection. Lower
settings may cause false motion detection due to noise. A higher setting will require a larger
brightness change on the moving object for motion detection.
