ARECONT VISION AV100 VIDEO SYSTEM USER MANUAL
33
Arecont Vision 425 E Colorado St, 7
th
Floor Glendale, CA 91205 Revised 12/20/2010
www.arecontvision.com
www.arecontvision.comwww.arecontvision.com
www.arecontvision.com
Advanced
AdvancedAdvanced
Advanced
Select Advanced
Advanced Advanced
Advanced (figure 22) to set the following options:

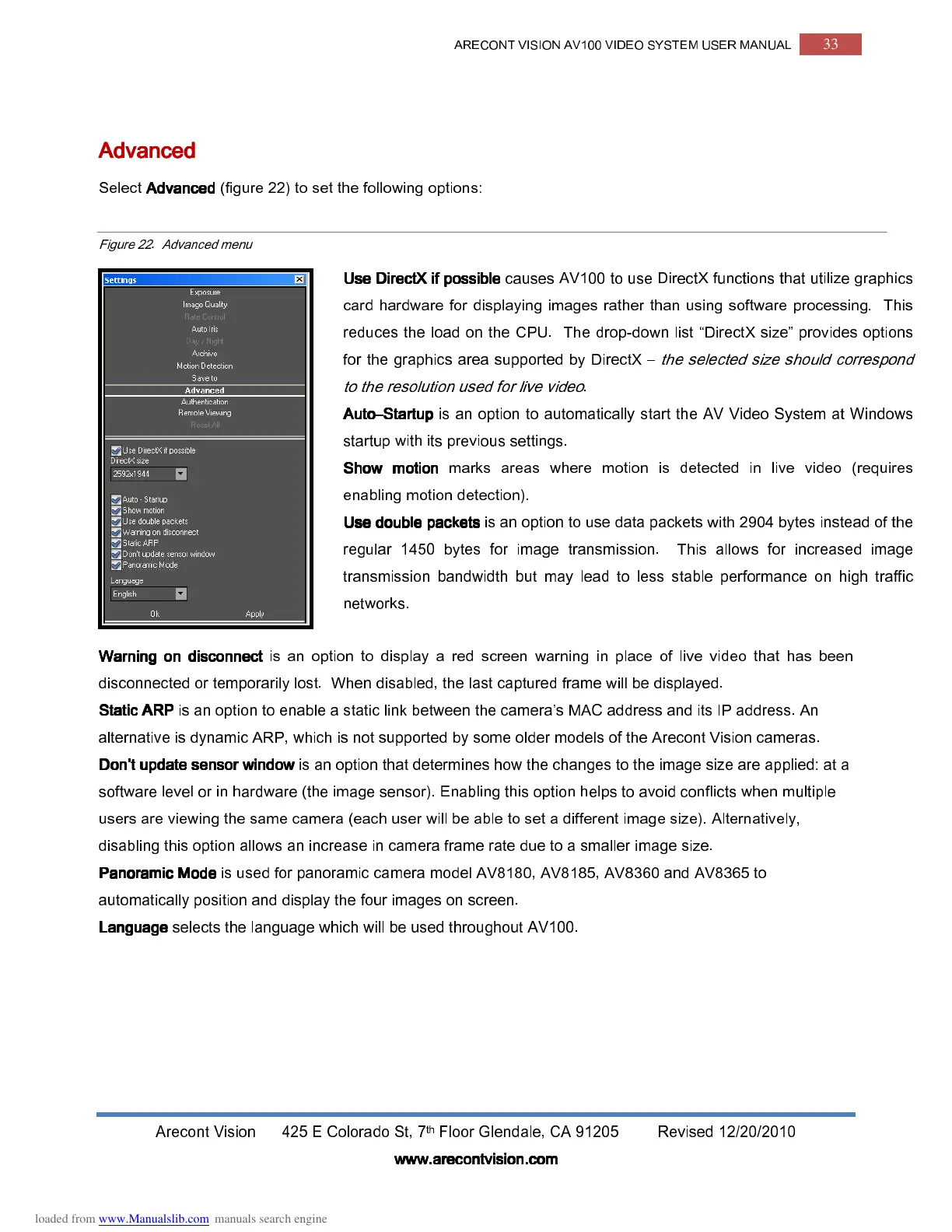

Figure 22. Advanced menu
Warning on disconnect
Warning on disconnectWarning on disconnect
Warning on disconnect is an option to display a red screen warning in place of live video that has been
disconnected or temporarily lost. When disabled, the last captured frame will be displayed.
Static ARP
Static ARPStatic ARP
Static ARP is an option to enable a static link between the camera’s MAC address and its IP address. An
alternative is dynamic ARP, which is not supported by some older models of the Arecont Vision cameras.
Don’t update
Don’t update Don’t update
Don’t update sensor window
sensor windowsensor window
sensor window is an option that determines how the changes to the image size are applied: at a
software level or in hardware (the image sensor). Enabling this option helps to avoid conflicts when multiple
users are viewing the same camera (each user will be able to set a different image size). Alternatively,
disabling this option allows an increase in camera frame rate due to a smaller image size.
Panoramic Mode
Panoramic ModePanoramic Mode
Panoramic Mode is used for panoramic camera model AV8180, AV8185, AV8360 and AV8365 to
automatically position and display the four images on screen.
Language
LanguageLanguage
Language selects the language which will be used throughout AV100.
Use DirectX if possible
Use DirectX if possibleUse DirectX if possible
Use DirectX if possible causes AV100 to use DirectX functions that utilize graphics
card hardware for displaying images rather than using software processing. This
reduces the load on the CPU. The drop-down list “DirectX size” provides options
for the graphics area supported by DirectX – the selected size should correspond
to the resolution used for live video .
Auto
AutoAuto
Auto–
––
–Startup
StartupStartup
Startup is an option to automatically start the AV Video System at Windows
startup with its previous settings.
Show motion
Show motionShow motion
Show motion marks areas where motion is detected in live video (requires
enabling motion detection).
Use double packets
Use double packetsUse double packets
Use double packets is an option to use data packets with 2904 bytes instead of the
regular 1450 bytes for image transmission. This allows for increased image
transmission bandwidth but may lead to less stable performance on high traffic
networks.
