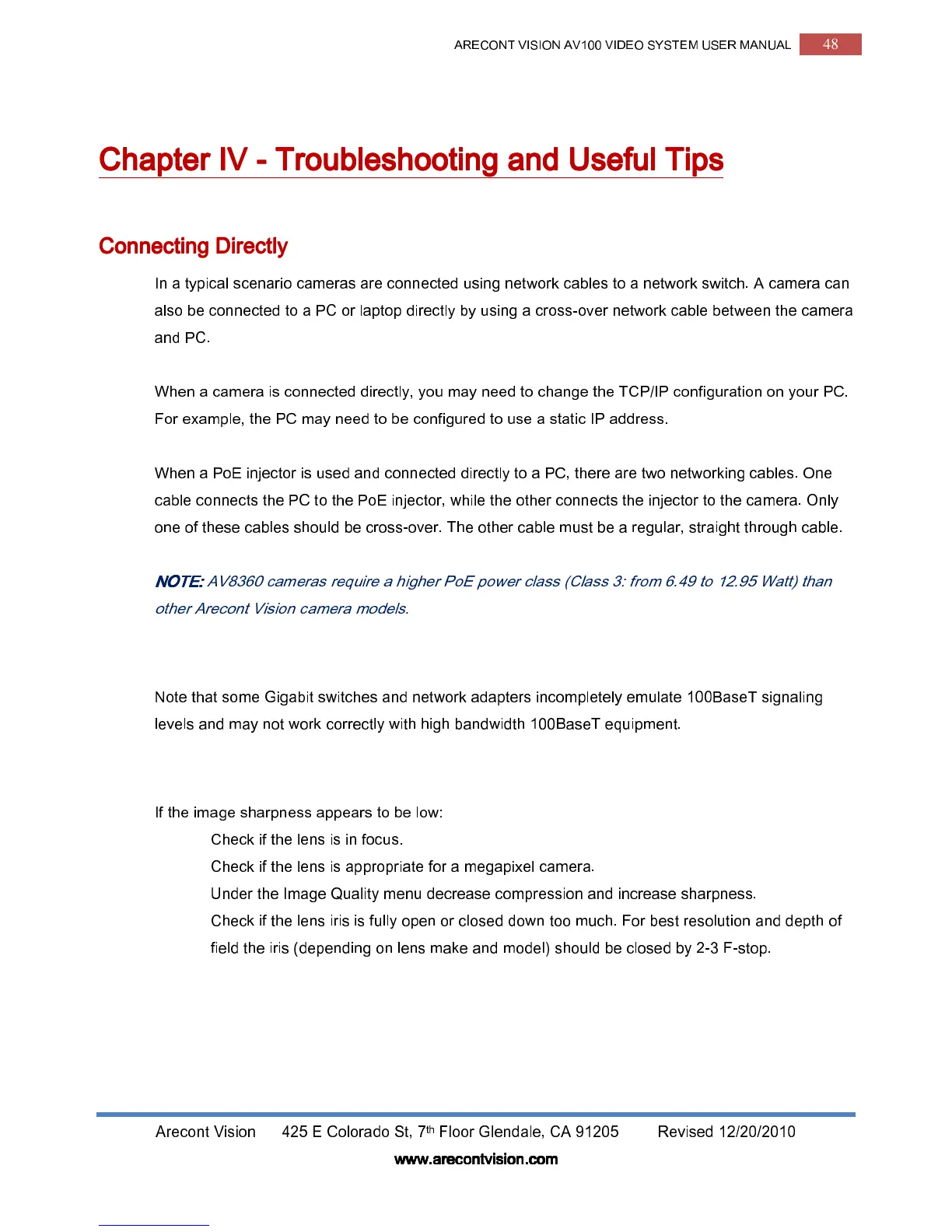

ARECONT VISION AV100 VIDEO SYSTEM USER MANUAL
48
Arecont Vision 425 E Colorado St, 7
th
Floor Glendale, CA 91205 Revised 12/20/2010
www.arecontvision.com
www.arecontvision.comwww.arecontvision.com
www.arecontvision.com
Chapter
ChapterChapter
Chapter I
II
IV
V V
V -
--
- Troubleshooting
TroubleshootingTroubleshooting
Troubleshooting and
and and
and Useful Tips
Useful TipsUseful Tips
Useful Tips
Connecting Directly
Connecting Directly Connecting Directly
Connecting Directly t
tt
to
o o
o a
a a
a Laptop
Laptop Laptop
Laptop or
oror
or PC
PCPC
PC
In a typical scenario cameras are connected using network cables to a network switch. A camera can
also be connected to a PC or laptop directly by using a cross-over network cable between the camera
and PC.
When a camera is connected directly, you may need to change the TCP/IP configuration on your PC.
For example, the PC may need to be configured to use a static IP address.
When a PoE injector is used and connected directly to a PC, there are two networking cables. One
cable connects the PC to the PoE injector, while the other connects the injector to the camera. Only
one of these cables should be cross-over. The other cable must be a regular, straight through cable.
N
NN
NOTE
OTEOTE
OTE:
::
: AV8360 cameras require a higher PoE power class (Class 3: from 6.49 to 12.95 Watt) than
other Arecont Vision camera models.
Switches
Switches Switches
Switches and
andand
and Routers
RoutersRouters
Routers
Note that some Gigabit switches and network adapters incompletely emulate 100BaseT signaling
levels and may not work correctly with high bandwidth 100BaseT equipment.
Low Sharpness
Low SharpnessLow Sharpness
Low Sharpness
If the image sharpness appears to be low:
• Check if the lens is in focus.
• Check if the lens is appropriate for a megapixel camera.
• Under the Image Quality menu decrease compression and increase sharpness.
• Check if the lens iris is fully open or closed down too much. For best resolution and depth of
field the iris (depending on lens make and model) should be closed by 2-3 F-stop.
