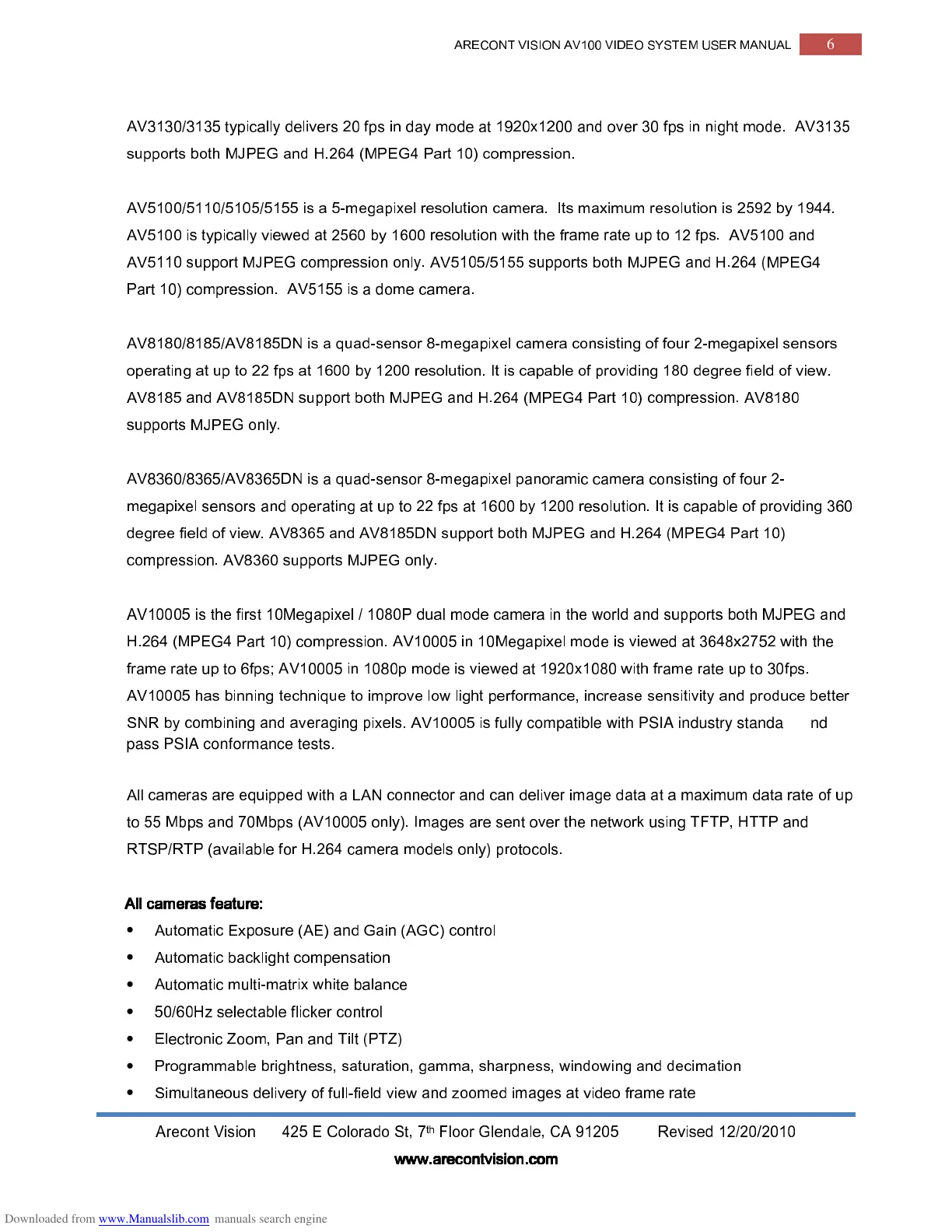

ARECONT VISION AV100 VIDEO SYSTEM USER MANUAL
6
Arecont Vision 425 E Colorado St, 7
th
Floor Glendale, CA 91205 Revised 12/20/2010
www.arecontvision.com
www.arecontvision.comwww.arecontvision.com
www.arecontvision.com
AV3130/3135 typically delivers 20 fps in day mode at 1920x1200 and over 30 fps in night mode. AV3135
supports both MJPEG and H.264 (MPEG4 Part 10) compression.
AV5100/5110/5105/5155 is a 5-megapixel resolution camera. Its maximum resolution is 2592 by 1944.
AV5100 is typically viewed at 2560 by 1600 resolution with the frame rate up to 12 fps. AV5100 and
AV5110 support MJPEG compression only. AV5105/5155 supports both MJPEG and H.264 (MPEG4
Part 10) compression. AV5155 is a dome camera.
AV8180/8185/AV8185DN is a quad-sensor 8-megapixel camera consisting of four 2-megapixel sensors
operating at up to 22 fps at 1600 by 1200 resolution. It is capable of providing 180 degree field of view.
AV8185 and AV8185DN support both MJPEG and H.264 (MPEG4 Part 10) compression. AV8180
supports MJPEG only.
AV8360/8365/AV8365DN is a quad-sensor 8-megapixel panoramic camera consisting of four 2-
megapixel sensors and operating at up to 22 fps at 1600 by 1200 resolution. It is capable of providing 360
degree field of view. AV8365 and AV8185DN support both MJPEG and H.264 (MPEG4 Part 10)
compression. AV8360 supports MJPEG only.
AV10005 is the first 10Megapixel / 1080P dual mode camera in the world and supports both MJPEG and
H.264 (MPEG4 Part 10) compression. AV10005 in 10Megapixel mode is viewed at 3648x2752 with the
frame rate up to 6fps; AV10005 in 1080p mode is viewed at 1920x1080 with frame rate up to 30fps.
AV10005 has binning technique to improve low light performance, increase sensitivity and produce better
SNR by combining and averaging pixels. AV10005 is f ully compatible with PSIA industry standard and
pass PSIA conformance tests.
All cameras are equipped with a LAN connector and can deliver image data at a maximum data rate of up
to 55 Mbps and 70Mbps (AV10005 only). Images are sent over the network using TFTP, HTTP and
RTSP/RTP (available for H.264 camera models only) protocols.
All cameras feature:
All cameras feature:All cameras feature:
All cameras feature:
• Automatic Exposure (AE) and Gain (AGC) control
• Automatic backlight compensation
• Automatic multi-matrix white balance
• 50/60Hz selectable flicker control
• Electronic Zoom, Pan and Tilt (PTZ)
• Programmable brightness, saturation, gamma, sharpness, windowing and decimation
• Simultaneous delivery of full-field view and zoomed images at video frame rate
