Areva S2DAT - 图 2: 1250 A 过流部件

INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE
安装和维护说明手册
D0578-02-ZH
58/100
AREVA T&D S.p.A. – Via Meucci, 22 30020 Noventa di Piave (VE) ITALY – Tel. : 39 0421 309511 – Fax : 39 0421 65254
Subsidiary of AREVA T&D Italy SpA (AREVA group) with registered office in Via Meucci, 22 30020 Noventa di Piave (VE) - ITALY, under Art. 2359 of the Italian Civil Code.

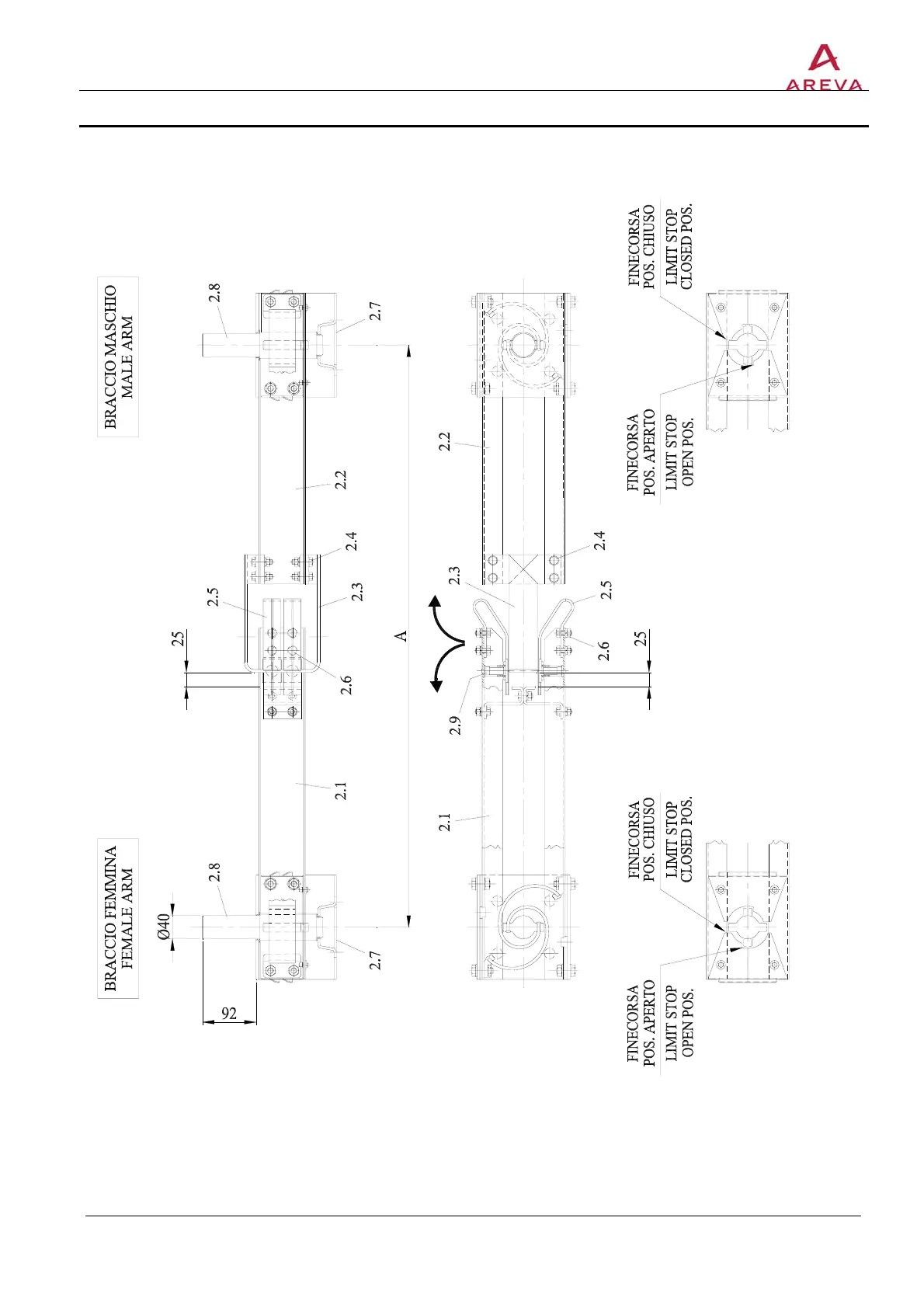

FIG. 2: LIVE PART, 1250 A
图 2: 1250A 过流部件
-
1
0
+
3
0
+
3
0
-
1
0
FEMALE ARM=雌刀臂
MALE ARM=雄刀臂
LIMIT STOP, CLOSED POSITION=限位档块 - 合闸位置
LIMIT STOP, OPEN POSITION=限位档块 -开闸位置
