Areva S2DAT - 在雄触头侧面有接地开关的 S2 Dat 隔离开关的下半部分组件 - 局部和细节

INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE
安装和维护说明手册
D0578-02-ZH
83/100
AREVA T&D S.p.A. – Via Meucci, 22 30020 Noventa di Piave (VE) ITALY – Tel. : 39 0421 309511 – Fax : 39 0421 65254
Subsidiary of AREVA T&D Italy SpA (AREVA group) with registered office in Via Meucci, 22 30020 Noventa di Piave (VE) - ITALY, under Art. 2359 of the Italian Civil Code.

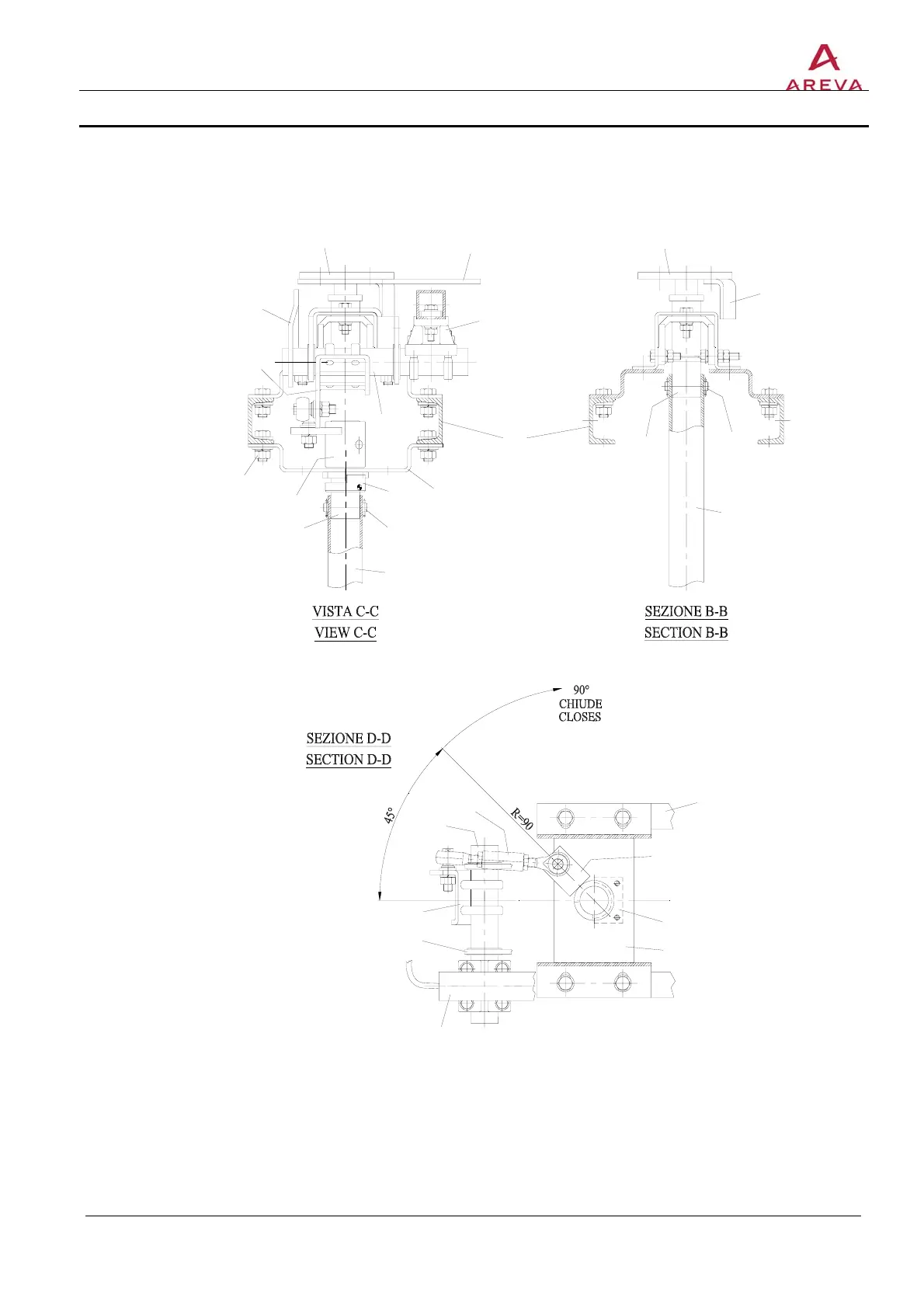

FIG. 5B: ASSEMBLY OF THE LOWER PART OF THE S2DAT DISCONNECTOR WITH
EARTHING SWITCH ON THE SIDE OF THE MALE CONTACT - SECTIONS
AND DETAILS
图 5B: 在雄触头侧面有接地开关的 S2DAT 隔离开关的下半部分组件 – 局部和细节
5.16
5.29
5.17
5.22
5.18
5.19
8.0
4.0
5.31
8.0
5.23
5.16
5.29
7.13
7.8.1
5.32
5.17
5.30
5.31
5.24
5.19
5.12
7.7.1
5.11
5.14
7.13
5.15
4.0
VIEW=图
SECTION=横截面
OPENS = 分闸
CLOSES =合闸
