Areva S2DAT - 图 4 A: 单极 S2 Da 隔离开关的支架结构 - 安装在矩形部分的钢筋混凝土支柱上

INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE
安装和维护说明手册
D0578-02-ZH
72/100
AREVA T&D S.p.A. – Via Meucci, 22 30020 Noventa di Piave (VE) ITALY – Tel. : 39 0421 309511 – Fax : 39 0421 65254
Subsidiary of AREVA T&D Italy SpA (AREVA group) with registered office in Via Meucci, 22 30020 Noventa di Piave (VE) - ITALY, under Art. 2359 of the Italian Civil Code.

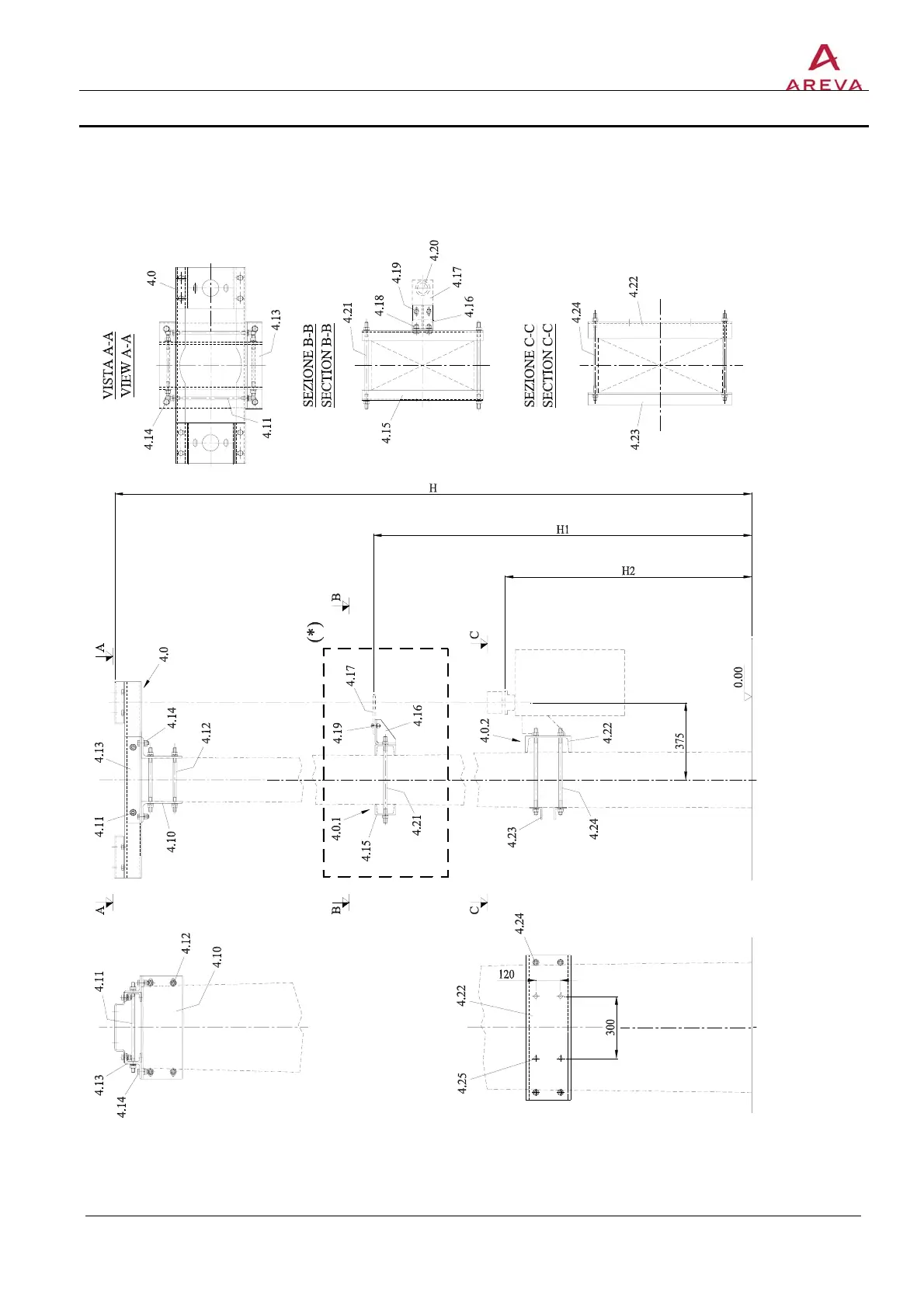

FIG. 4A: SUPPORT STRUCTURE FOR THE SINGLE-POLE S2DA DISCONNECTOR –
INSTALLATION ON RECTANGULAR-SECTION REINFORCED-CONCRETE
PILLAR
图 4A: 单极 S2DA 隔离开关的支架结构 - 安装在矩形部分的钢筋混凝土支柱上
VIEW=图
SECTION=横截面
