INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE
安装和维护说明手册
D0578-02-ZH
84/100
AREVA T&D S.p.A. – Via Meucci, 22 30020 Noventa di Piave (VE) ITALY – Tel. : 39 0421 309511 – Fax : 39 0421 65254
Subsidiary of AREVA T&D Italy SpA (AREVA group) with registered office in Via Meucci, 22 30020 Noventa di Piave (VE) - ITALY, under Art. 2359 of the Italian Civil Code.

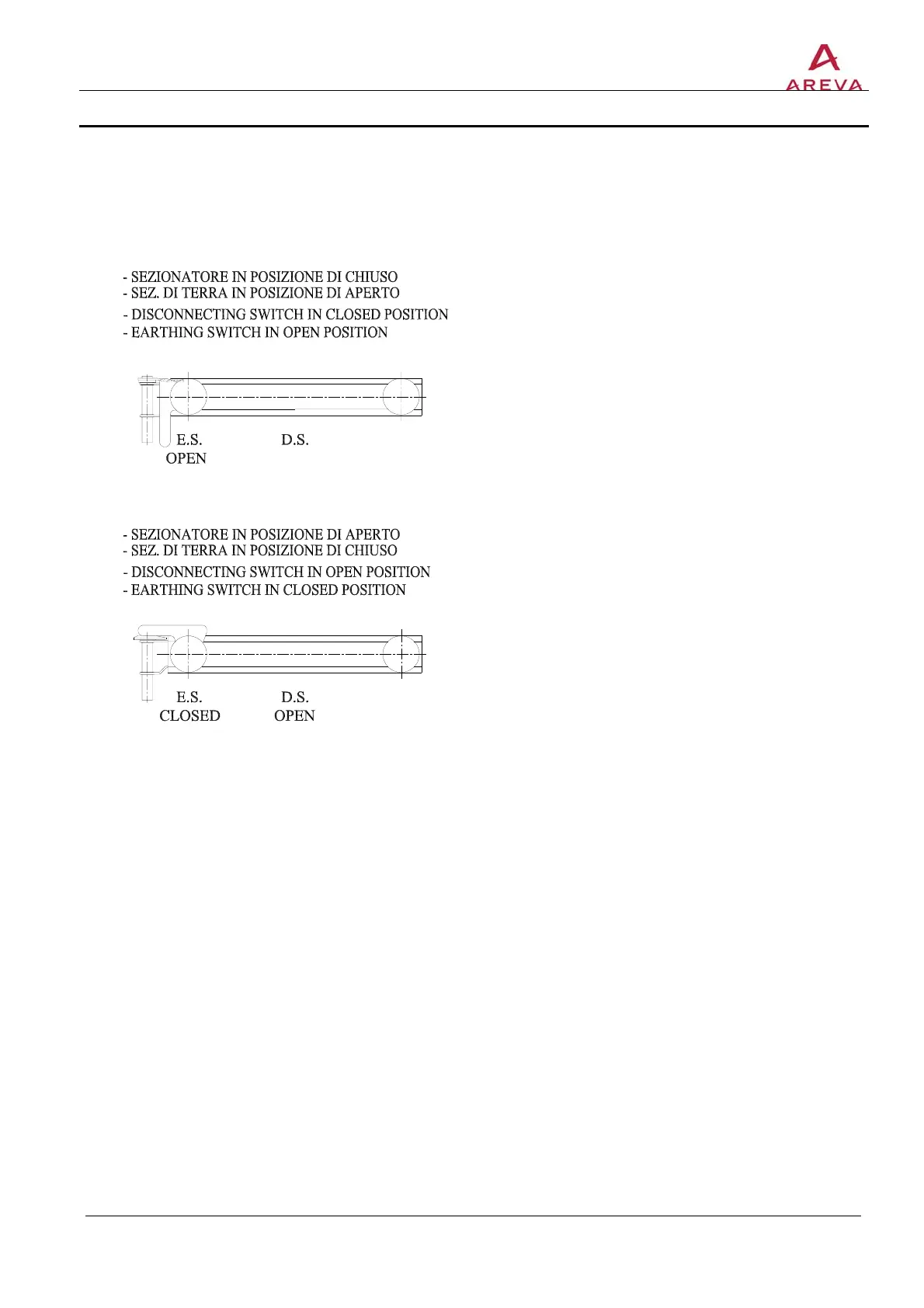

FIG. 5C: ASSEMBLY OF THE LOWER PART OF THE S2DAT DISCONNECTOR WITH
EARTHING SWITCH ON THE SIDE OF THE MALE CONTACT - DIAGRAM
OF THE INTERLOCKING DEVICE
图 5C: 在雄触头侧面有接地开关的 S2DAT 隔离开关的下半部分组件 – 连锁装置的图表
CLOSED
- 隔离开关处于关合位置
- 接地开关处于打开位置
打开的接地开关-------- 闭合的隔离开关
- 隔离开关处于打开位置
- 接地开关处于关合位置
闭合的接地开关-------- 打开的隔离开关
