INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE
安装和维护说明手册
D0578-02-ZH
96/100
AREVA T&D S.p.A. – Via Meucci, 22 30020 Noventa di Piave (VE) ITALY – Tel. : 39 0421 309511 – Fax : 39 0421 65254
Subsidiary of AREVA T&D Italy SpA (AREVA group) with registered office in Via Meucci, 22 30020 Noventa di Piave (VE) - ITALY, under Art. 2359 of the Italian Civil Code.

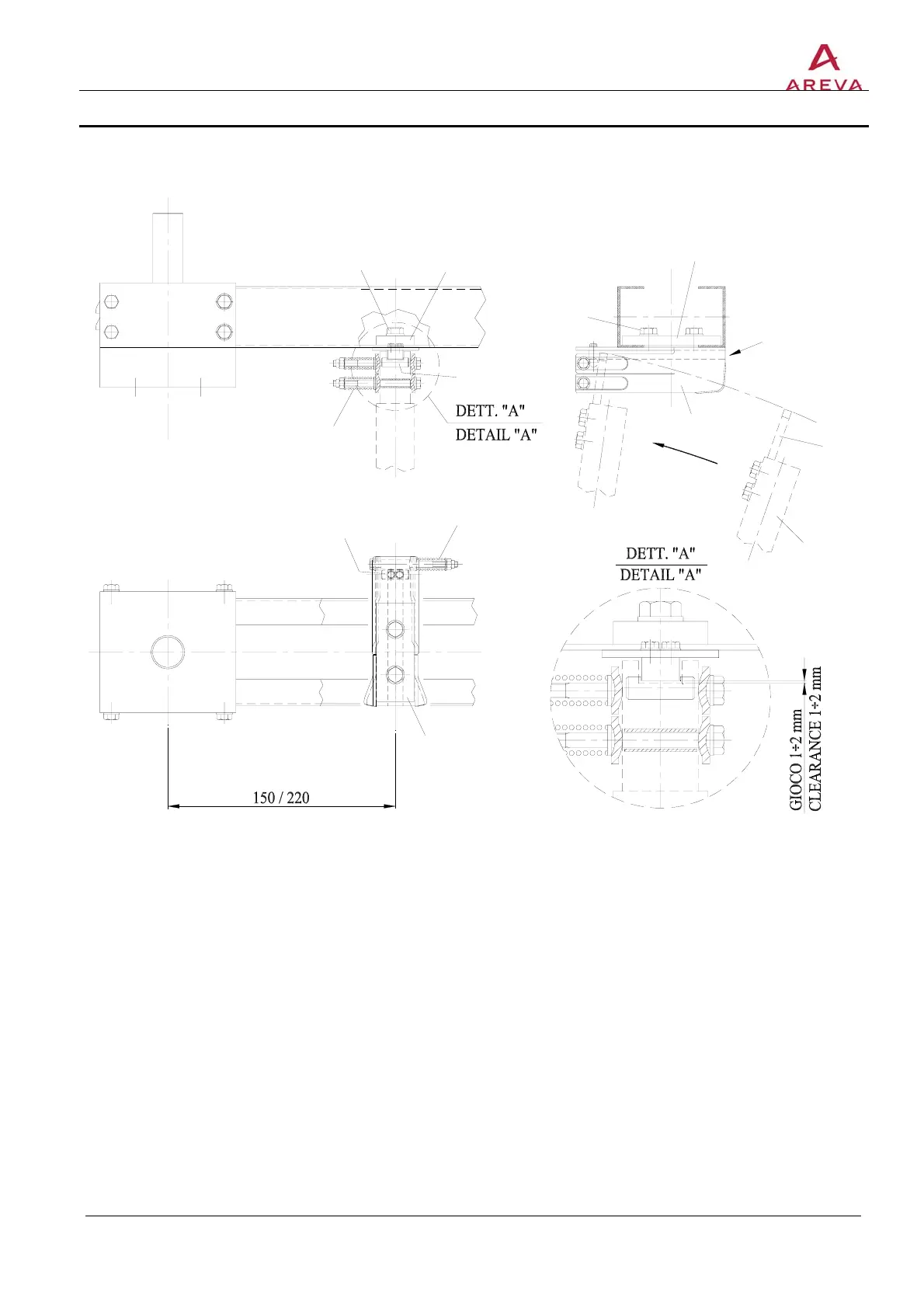

FIG. 9: ASSEMBLY OF THE FIXED CONTACT OF THE EARTHING SWITCH
图 9: 接地开关静触头组件
9.5
9.4
9.3
9.4
9.5
8.2
8.1
9.3
9.2
9.1
9.2
9.1
9.0
DETAIL = 细节
CLEARANCE=间隙
WARNING: THE FIXED CONTACT OF THE EARTHING SWITCH IS INSTALLED IN THE
SAME WAY ON THE MALE ARM AND ON THE FEMALE ARM.
警告： 在雄刀臂和雌刀臂上安装接地开关静触头的方法相同。
8.1 MOBILE ARM OF THE EARTHING SWITCH — 接地开关动臂
8.2 MALE MOBILE CONTACT — 雄动触头
9.0 FIXED CONTACT UNIT — 静触头装置
9.1 CONTACT HOLDING PLATE — 触头固定板
9.2 SCREWS FOR FASTENING OF THE CONTACT-HOLDING PLATE — 用于紧固触头固定板的螺钉
9.3 FEMALE FIXED CONTACT OF THE EARTHING SWITCH — 接地开关的雌静触头
9.4 PRESSURE SPRINGS — 压力弹簧
9.5 END STOP — 端头挡板
