Service Manual
Maintenance
35

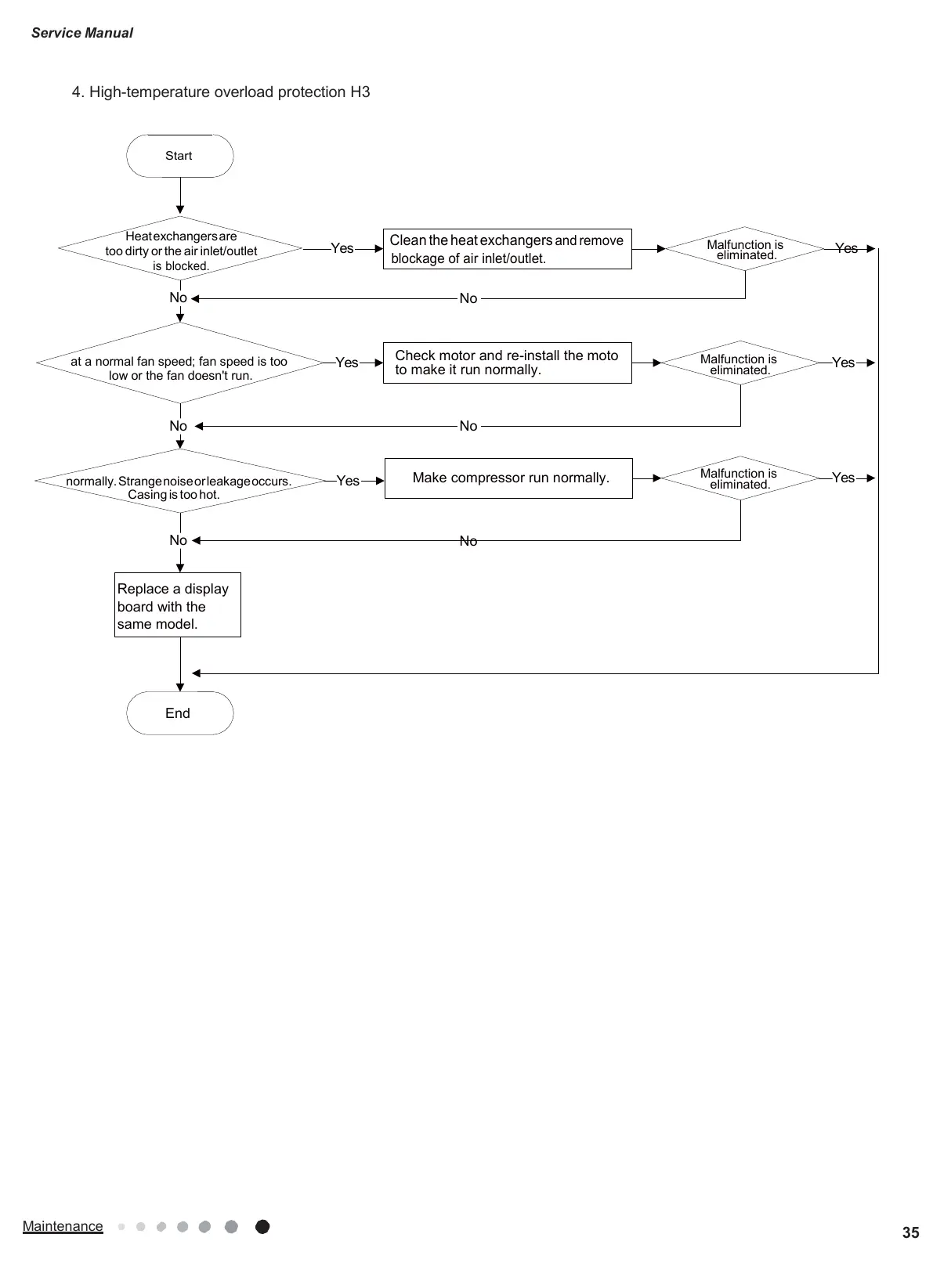

4. High-temperature overload protection H3
Clean the heat exchangers and remove
blockage of air inlet/outlet.
Check motor and re-install the moto
to make it run normally.
Make compressor run normally.
Replace a display
board with the
same model.
Start
Heat exchangers are
too dirty or the air inlet/outlet
is blocked.
Yes
Malfunction is
eliminated.
Yes
No
No
at a normal fan speed; fan speed is too
low or the fan doesn't run.
Yes
Malfunction is
eliminated.
Yes
No
No
normally. Strange noise or leakage occurs.
Casing is too hot.
Yes
Malfunction is
eliminated.
Yes
No
No
End

Argo ALICE 13 Specifications

General

Airflow	115 m³/h
Display	LED
Noise level	43 dB
Product color	White
Built-in display	Yes
Water tank capacity	3 L
Suitable for room area up to	15 m²
Suitable for room volume up to	- m³
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (typical)	220 W
Operating temperature (T-T)	5 - 32 °C
Operating relative humidity (H-H)	35 - 80 %

Weight and Dimensions

Depth	225 mm
Width	353 mm
Height	496 mm
Weight	11500 g
