Service Manual
Maintenance
34

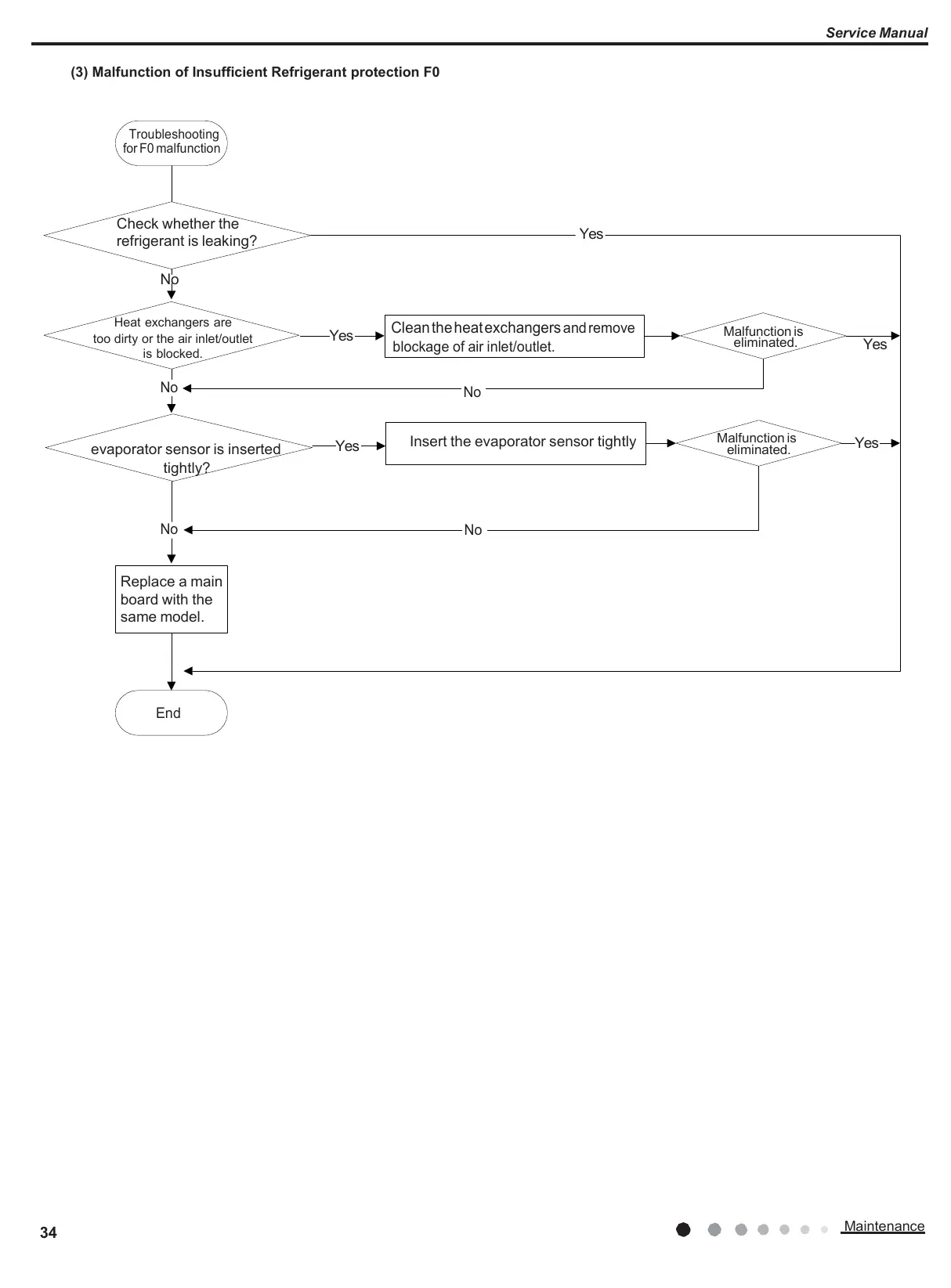

(3) Malfunction of Insufficient Refrigerant protection F0
Clean the heat exchangers and remove
blockage of air inlet/outlet.
Insert the evaporator sensor tightly
Replace a main
board with the
same model.
Troubleshooting
for F0 malfunction
Check whether the
refrigerant is leaking?
Yes
No
Heat exchangers are
too dirty or the air inlet/outlet
is blocked.
Yes
Malfunction is
eliminated.
Yes
No
No
evaporator sensor is inserted
tightly?
Yes
Malfunction is
eliminated.
Yes
No
No
End

Argo ALICE 13 Specifications

General

Airflow	115 m³/h
Display	LED
Noise level	43 dB
Product color	White
Built-in display	Yes
Water tank capacity	3 L
Suitable for room area up to	15 m²
Suitable for room volume up to	- m³
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (typical)	220 W
Operating temperature (T-T)	5 - 32 °C
Operating relative humidity (H-H)	35 - 80 %

Weight and Dimensions

Depth	225 mm
Width	353 mm
Height	496 mm
Weight	11500 g
