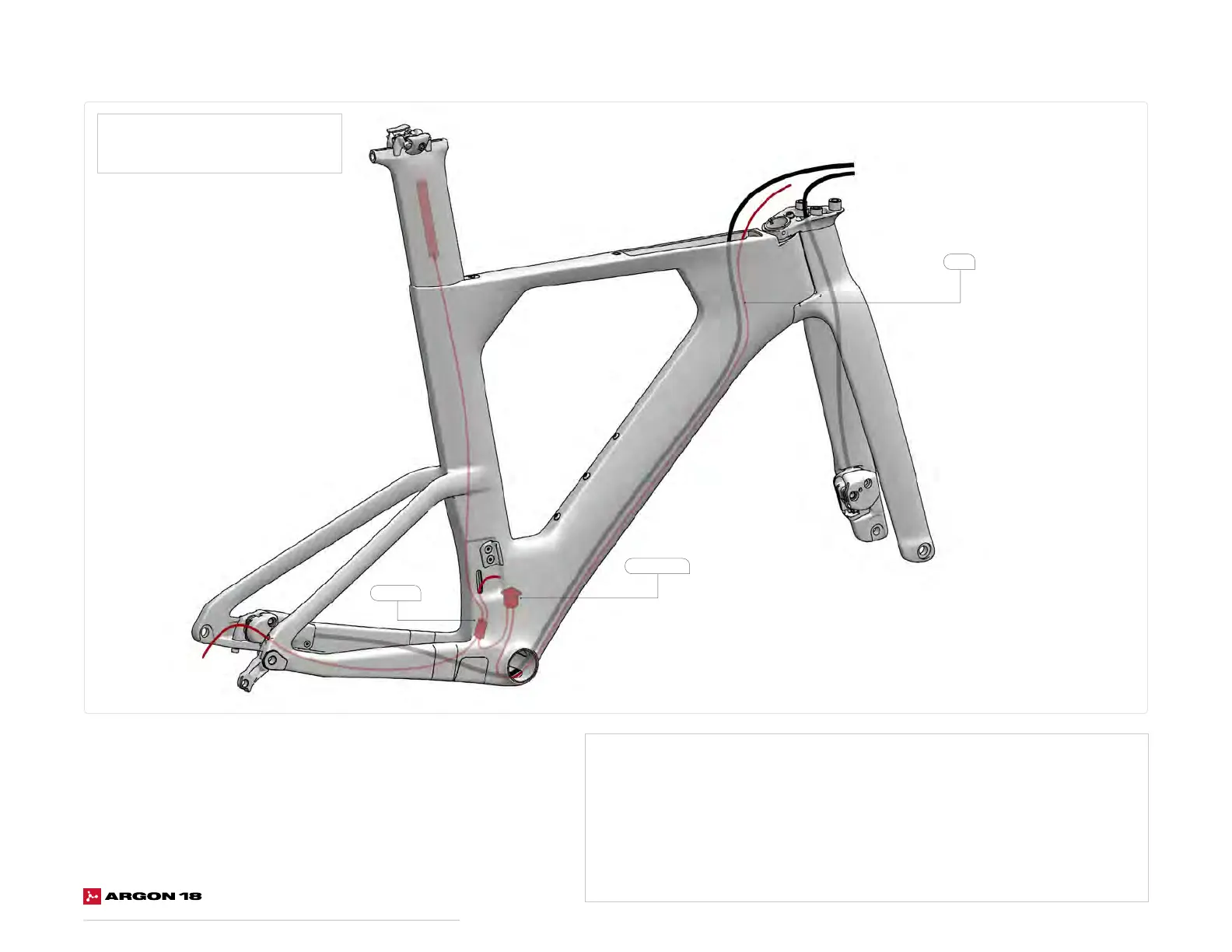

10.1 Frame Routing - OVERVIEW - di2
1. The rear brake housing must be routed under the bottom bracket sleeve.
2. The Di2 cable going to the front end must be routed under the bottom bracket
sleeve. (A)
3. The JC-41 junction box will rest behind the BB.
4. The rear brake housing MUST be covered by a foam liner up to the BB shell.
See page 23. (SKU: 80811).
For eTap routing see page 30.
For mechanical routing see page 35.
