11.4 FRame routing – handlebar - etap

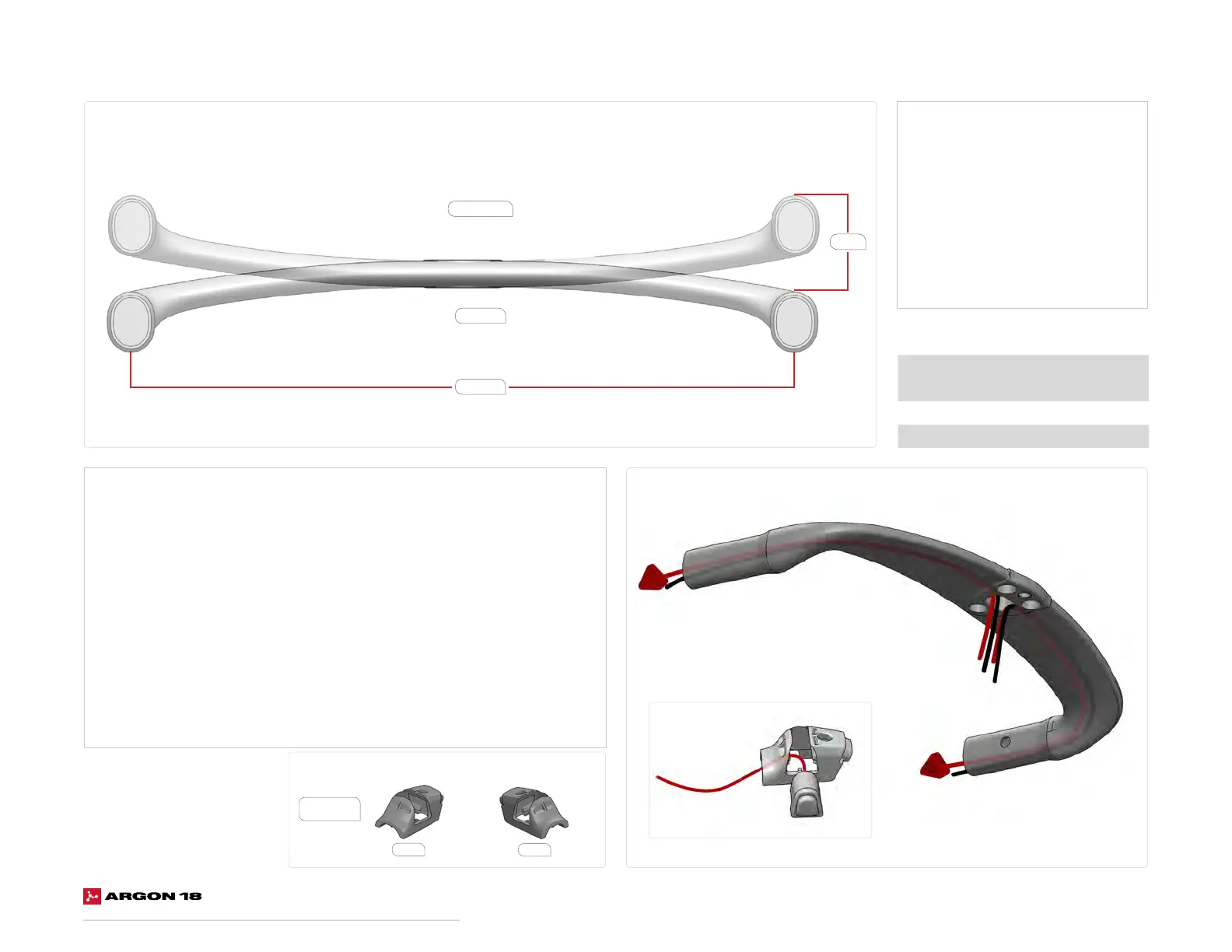

1. Choose the SRAM eTap shifter adapter (included in SKU: 81514).
2. Insert the cable tie into the multiclic shifter cavity in the shifter adapter.
3. Slide the multiclic shifter through the SRAM eTap shifter adapter, aligning both
grooves of the shiter with the rail in the adapter
4. Run both multiclic shifter cables through the handlebar. Both cables must exit
through the oval hole on the underside of the handlebar.
5. Run the rear hydraulic brake housing through the desired side of the handlebar.
The housing must exit through the oval hole on the underside of the handlebar.
6. Run the front hydraulic brake housing through the desired side of the
handlebar. The housing must exit through the oval hole on the underside
the handlebar.
1. The handlebar is reversible:
flipping it will raise the hand
position by 57.8mm from the
basebar. Choose the handlebar
orientation you prefer (see the
table below for reference values).
2. The handlebar can be flipped
after assembly, but will need to
disconnect the hydraulic
brake housing.
Stack Heigth
Handlebar
Orientation
0 - 70 Normal
60 - 90 Inverted
Inverted
Normal
40cm
58mm
Left
Right
included with:
81514
To Next Page
