E-119TRI+DISC 345A / 345B: ASSEMBLY GUIDE
11.5 frame routing - Handlebar - etap
81545
M6 x 16mm
81531

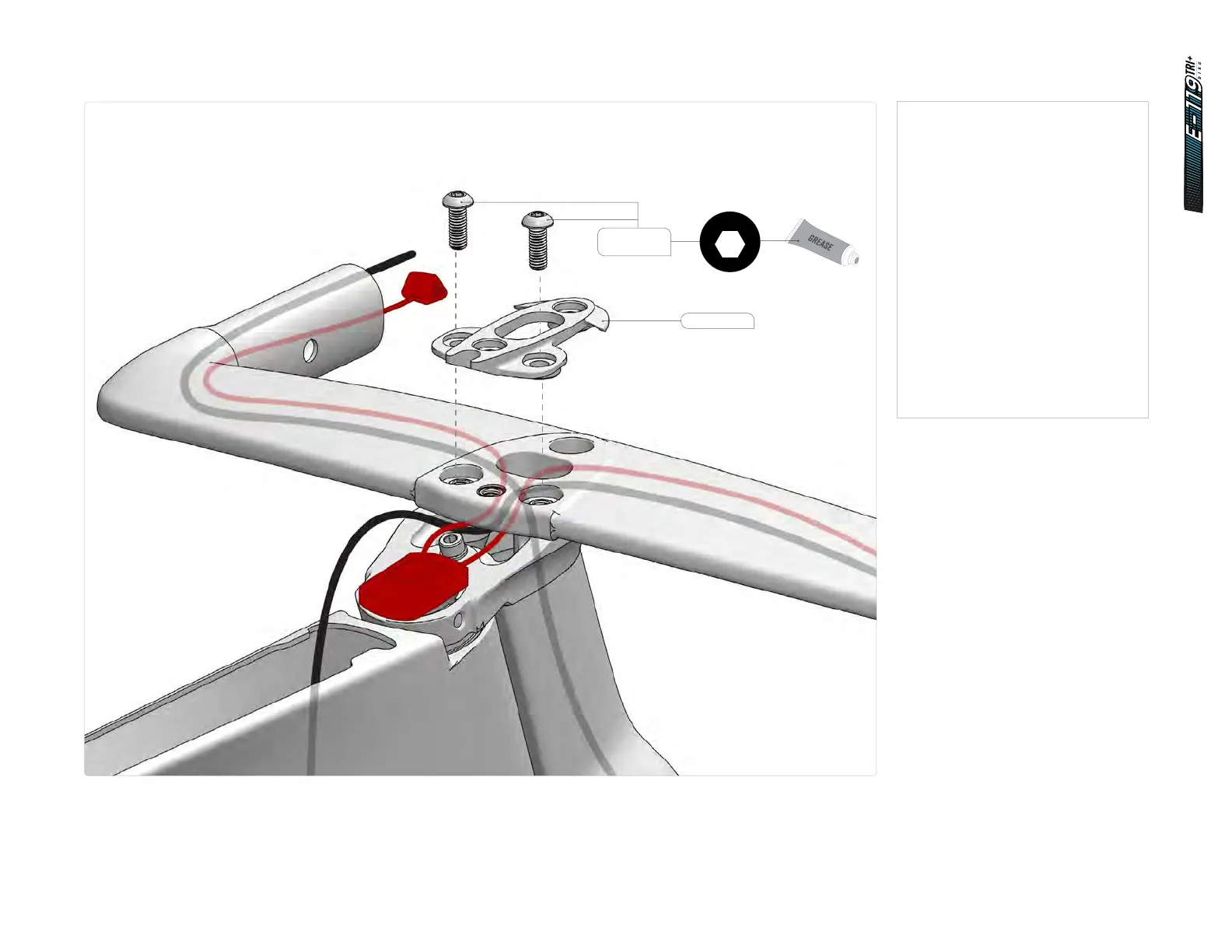

1. Run both brake housings through
the handlebar.
2. Set the handlebar onto the fork,
making sure cables are not
in-between the handlebar and
the fork.
3. Set the first spacer onto
the handlebar.
4. Apply grease to the treads of both
M6 x 16 mm button head screws
(SKU: 81545).
5. Tighten both M6 x 16 mm button
head screws
to 6 Nm.
