46
E-119TRI+DISC 345A / 345B: ASSEMBLY GUIDE

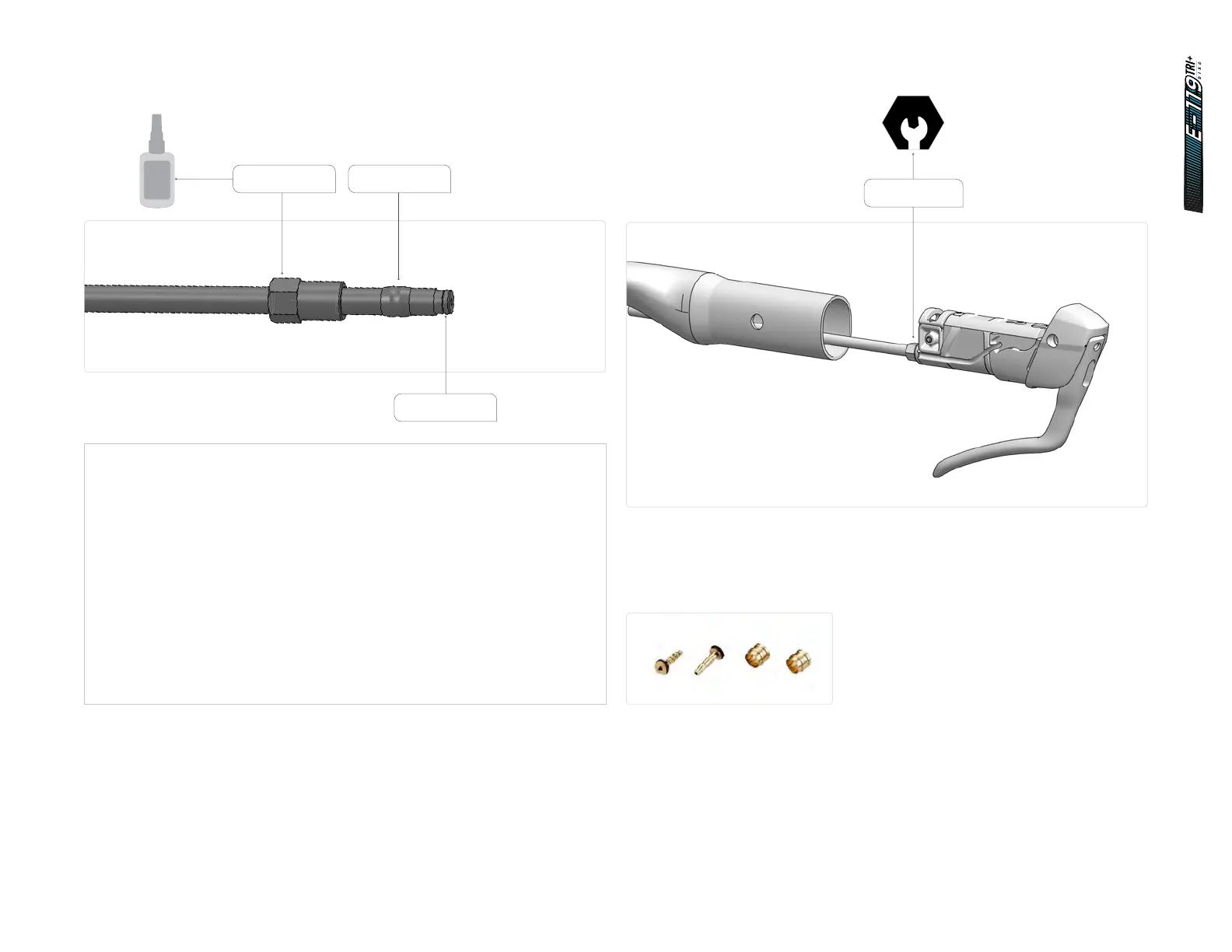

13.7 Brake Lever Assembly
TRP
Compression nut
1. Using a hydraulic barb compression tool, press the TRP barb into place in the
hydraulic hose.
2. Make sure the O-ring is installed and the barb is flush against the
hydraulic hose.
3. Slide the TRP compression nut onto the hydraulic hose.
4. Slide the TRP olive onto the hydraulic hose.
5. Push the hydraulic hose all the way into the lever until it stops.
6. Screw the TRP compression nut on, and thighten to 5-7 Nm.
7. Repeat for the second brake lever.
TRP
Compression nut
TRP
Olive
TRP
Barb and O-ring
TRP replacement part, available at :
https://trpcycling.com/product/olive-and-barb-set/
TRP barbs & pins 5 mm
4Nm6Nm
8
