13.8 Brake Lever Assembly

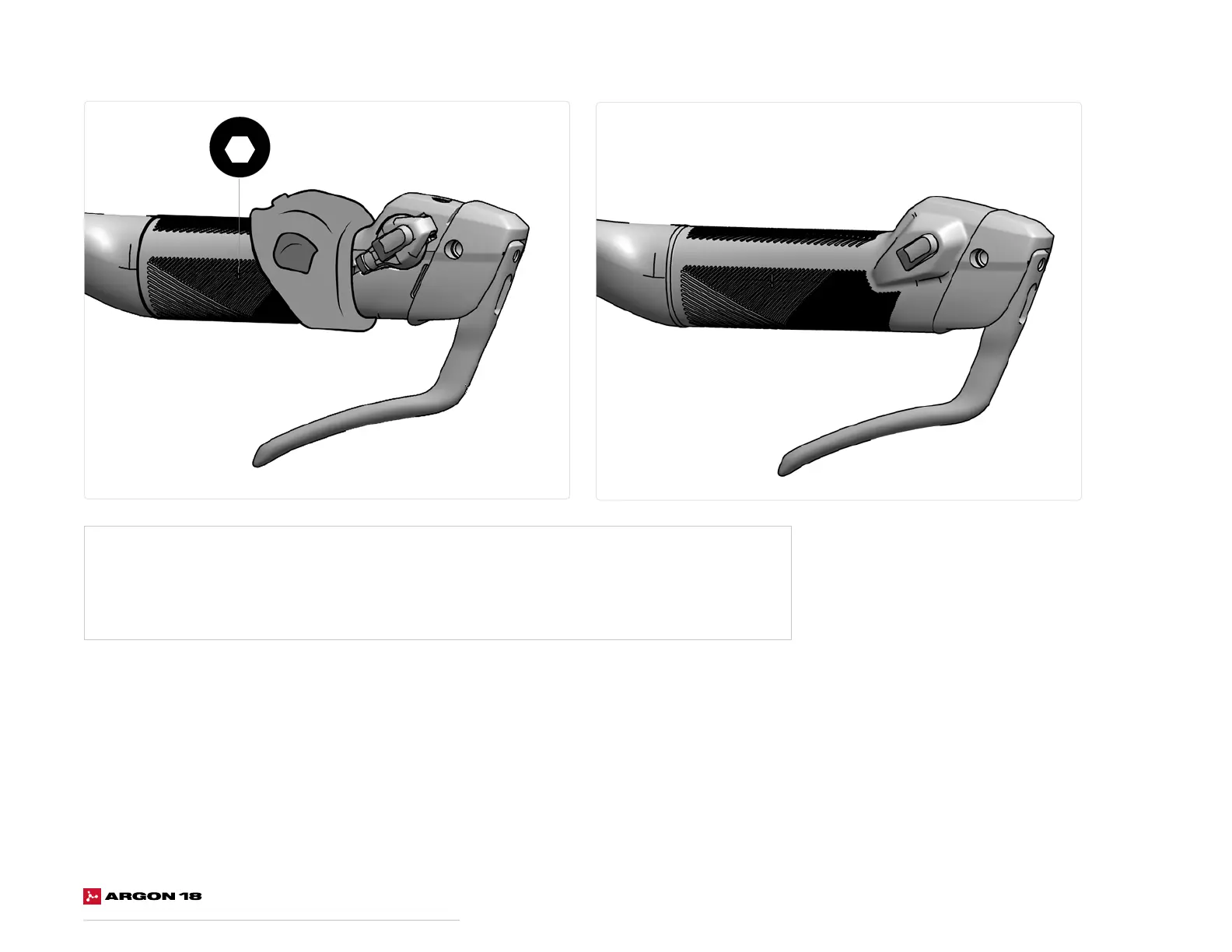

1. Connect the electronic shifter wire (if Di2 build).
2. Push the lever into position until it sits on the handlebar face.
3. Using a 2.5mm Allen key, screw the wedge bolt to 2 Nm. You can reach the bolt through the hole in the grip.
4. Flip back the grip, securing it in the groove in the brake lever.
