Argon 18 E-119 TRI+ - 14.6 COCKPIT ASSEMBLY - ARMREST ASSEMBLY

58
E-119TRI+DISC 345A / 345B: ASSEMBLY GUIDE

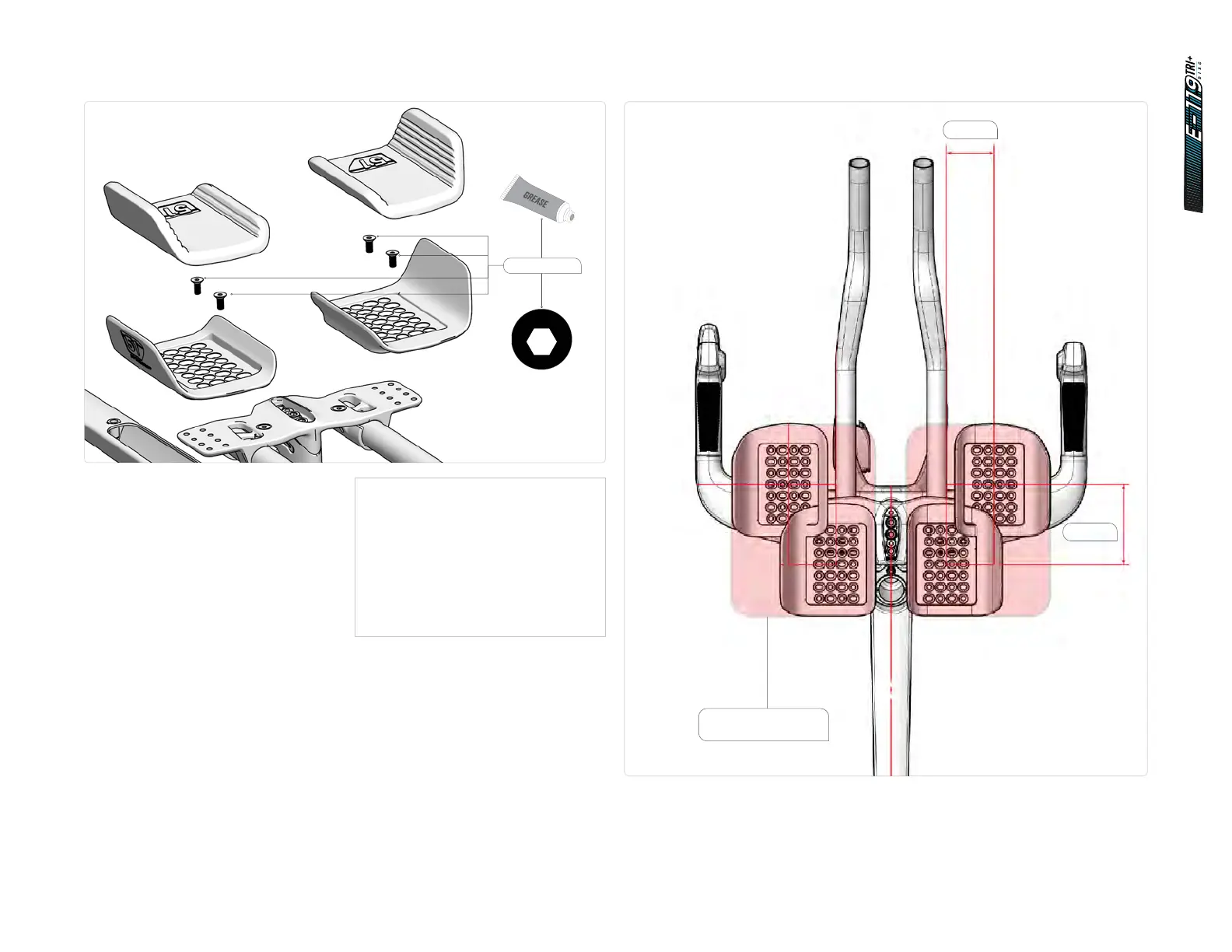

14.6 Cockpit assembly - Armrest Assembly
1. Fix the adhesive Velcro to
the armrests.
2. Screw the armrests onto the
bridge at 2 Nm in the
desired position.
3. Finish the assembly by installing
the armrest pads onto the Velcro.
4
6Nm
2.5
1Nm
4
5.5Nm
4
7Nm
2
HT-1/4
5
12Nm
2
2Nm
3
3Nm
4
3Nm
8
35Nm
2.5
HT
3
HT
40Nm
4Nm
T25
T25
4
3Nm
10
HT
2.5
5
9Nm
2.5
HT-2
2.5
HT-5
2.5
2Nm
3
2.5
HTHT
3
4Nm
3
2Nm
6
10Nm
2.5
HT
4Nm6Nm
8
M5 x 12mm
Armrest Positioning
Zone
87mm
31mm
