Argox A-2240 - Detection Area of the Transmissive Sensor (Centre); Detection Area of the Reflective Sensor

A Series User’s Manual
43

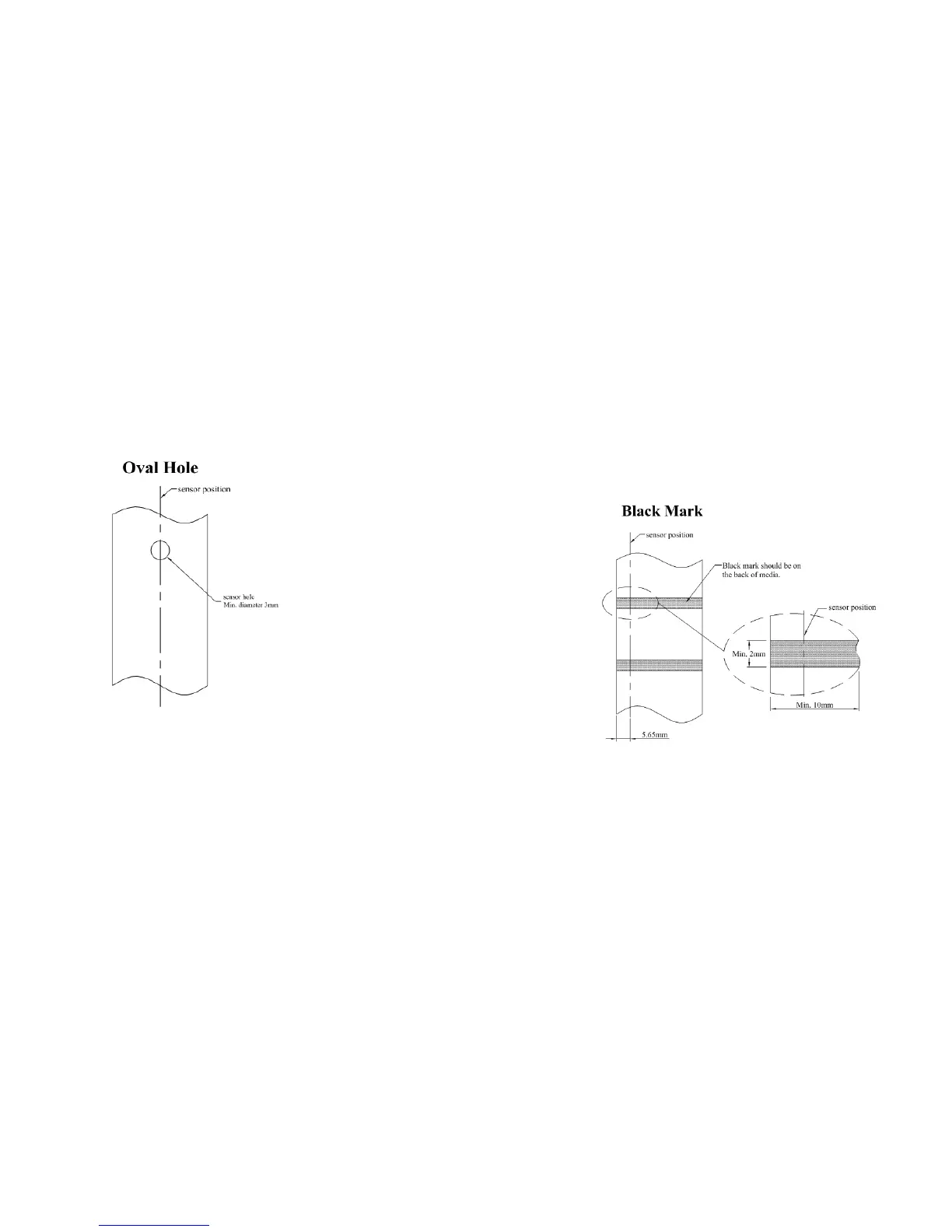

Detection Area of the Transmissive Sensor (centre)
The Transmissive Sensor (centre) is positioned at the centre of
the media.The detection area, as illustrated below.
A Series User’s Manual
44
Detection Area of the Reflective Sensor
The reflective Sensor (edge) is positioned at 5.65mm from
the left edge of media.The black mark minimum width
(horizontal) should be 10mm on the left edge of media. The
detection area, as illustrated below.
