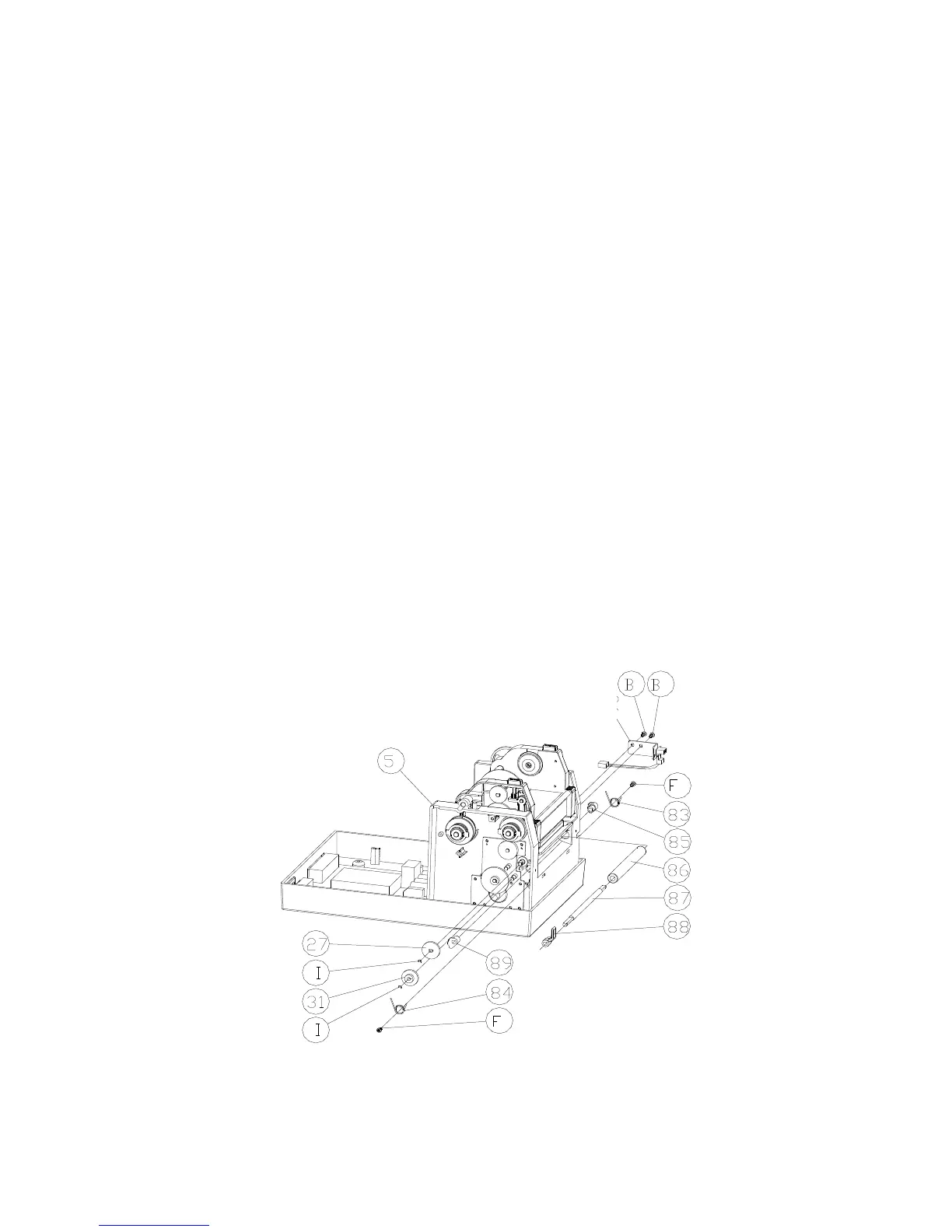

3. Remove gear (27) and (31).
4. Plug spring–peeler (83) into the right hole on chassis
2 and lock screw (F) up.
5. Put shaft-peeler (86) and peeler-switch (88) into
shaft-peeler (87) and then insert it in hole on right
side.
6. Guide peeler-switch (85) go through shaft-peeler
(87).
7. Hook spring-peeler (83) on the circle notch of
shaft-peeler (87).
8. Put spring-peeler (84) into the left hole of chassis 2
and lock screw (F) up.
9. Put peeler-switch (89) into shaft-peeler (87).
10. Hook spring-peeler (84) on the circle notch of
shaft-peeler (87).
