Argus E25 MOD II User Manual

Argus E25 MOD II - Operating Instructions
35
Turn the switching cams (4.11) until
the limit switches LS1 and LS 3 are
unloaded.
Tighten the socket set screw (4.16)
with a suitable level of torque.
Move the unit to its “Closed” position
at 0° or 180° (90° or 270° for trans-
verse installation) with the aid of the
hand lever
(see the section “Emer-
gency manual operation”)
. When set-
ting with the valve, set the position so
that the valve is fully closed.
ATTENTION!
When
setting with the valve, ob-
serve
the separate operating
instructions
for the valve.
Loosen the screws (4.16).

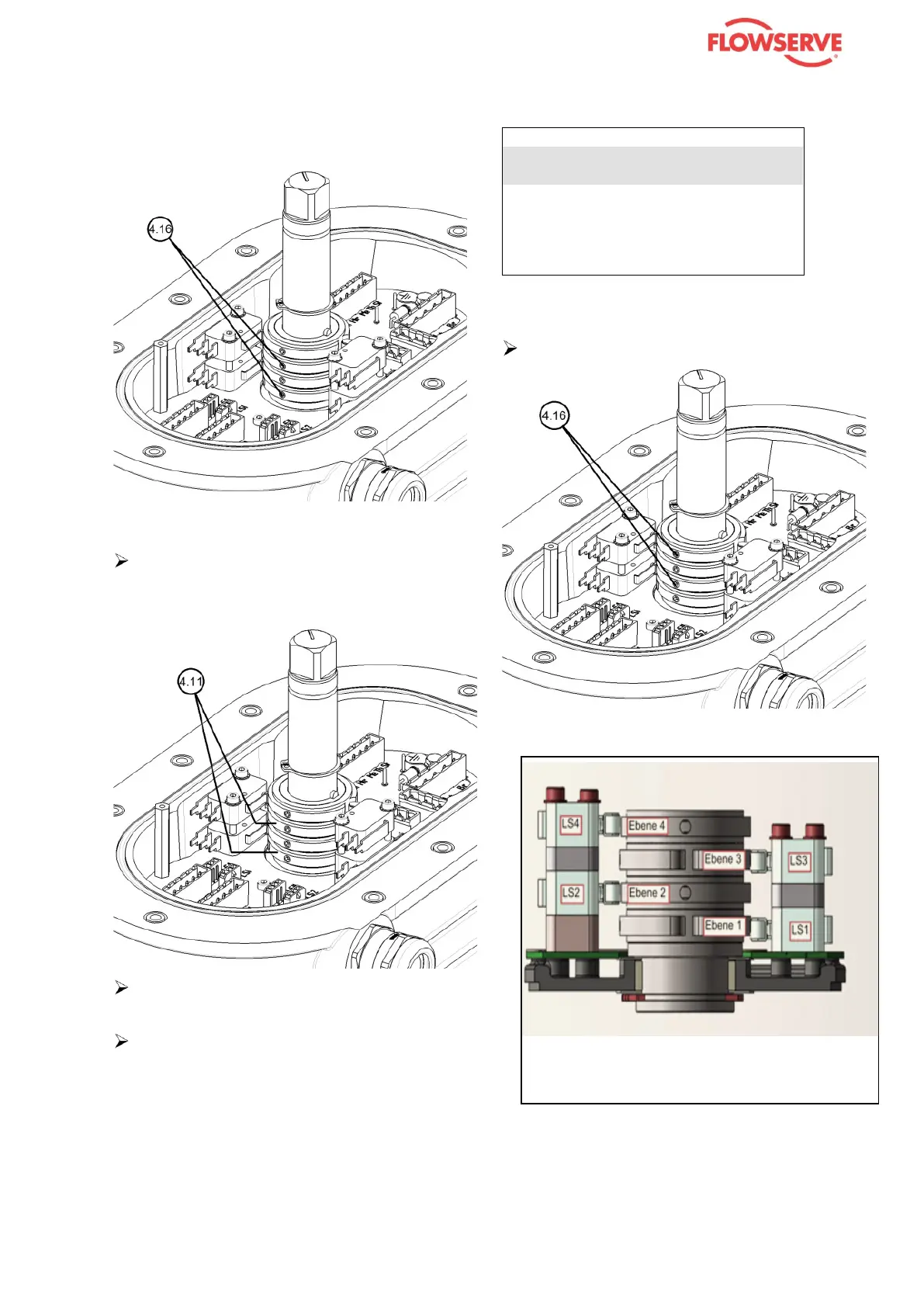

Assignment of end-position limit switch-
es to switching cam levels
.
Turn the switching cams (4.11) until
the limit switches LS2 and LS 4 are
unloaded.
