EN – 9

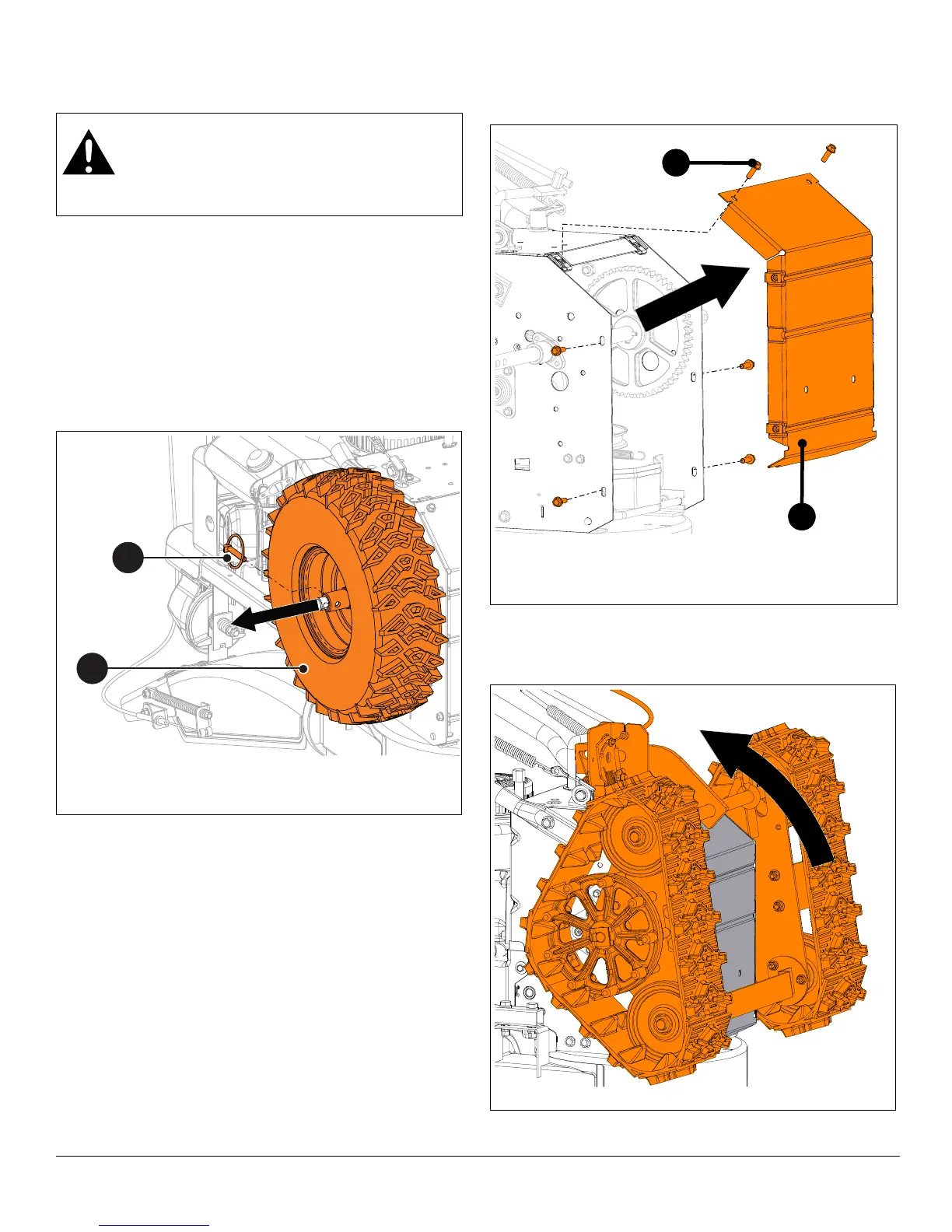

BOTTOM COVER REMOVAL
NOTICE: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
3. Place unit in service position. See Service Position on
page 8.
See Figure 3.
4. Remove lock pins from axle ends and remove wheels.
NOTICE: For track models, it is not necessary to remove
tracks to remove bottom cover.
See Figure 4.
5. Remove hardware retaining bottom cover to frame
and remove cover.
NOTICE: For track models, track angle must be in the
“Raised Position” to remove bottom cover. Refer to
Operator’s Manual. See Figure 5.
WARNING: AVOID INJURY. Before placing unit
in service position, close fuel valve and drain
fuel from tank and fuel system. See Draining
Fuel System on page 8. Make sure unit is
secure and will not tip.
Figure 3
1. Lock Pin
2. Wheel
1
2
Figure 4
1. Bottom Cover
2. Hex Bolt
2
1
