EN – 10
SEPARATE AUGER HOUSING FROM
FRAME
NOTICE: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
3. Remove cable hanger from chute rotation rod.
See Figure 6.
4. Remove hardware retaining chute gear cover to chute
pedestal and remove cover.
5. Remove spring clip from chute rotation rod and
remove rod.
See Figure 7.
6. Remove hairpin and sleeve bushing from deflector
arm under dash panel.
7. Remove cable from deflector arm and remove cable
snap from deflector anchor.
8. Reinstall hairpin so it is not misplaced.
See Figure 8.
9. Loosen, but DO NOT remove hardware securing belt
cover to unit and remove belt cover.

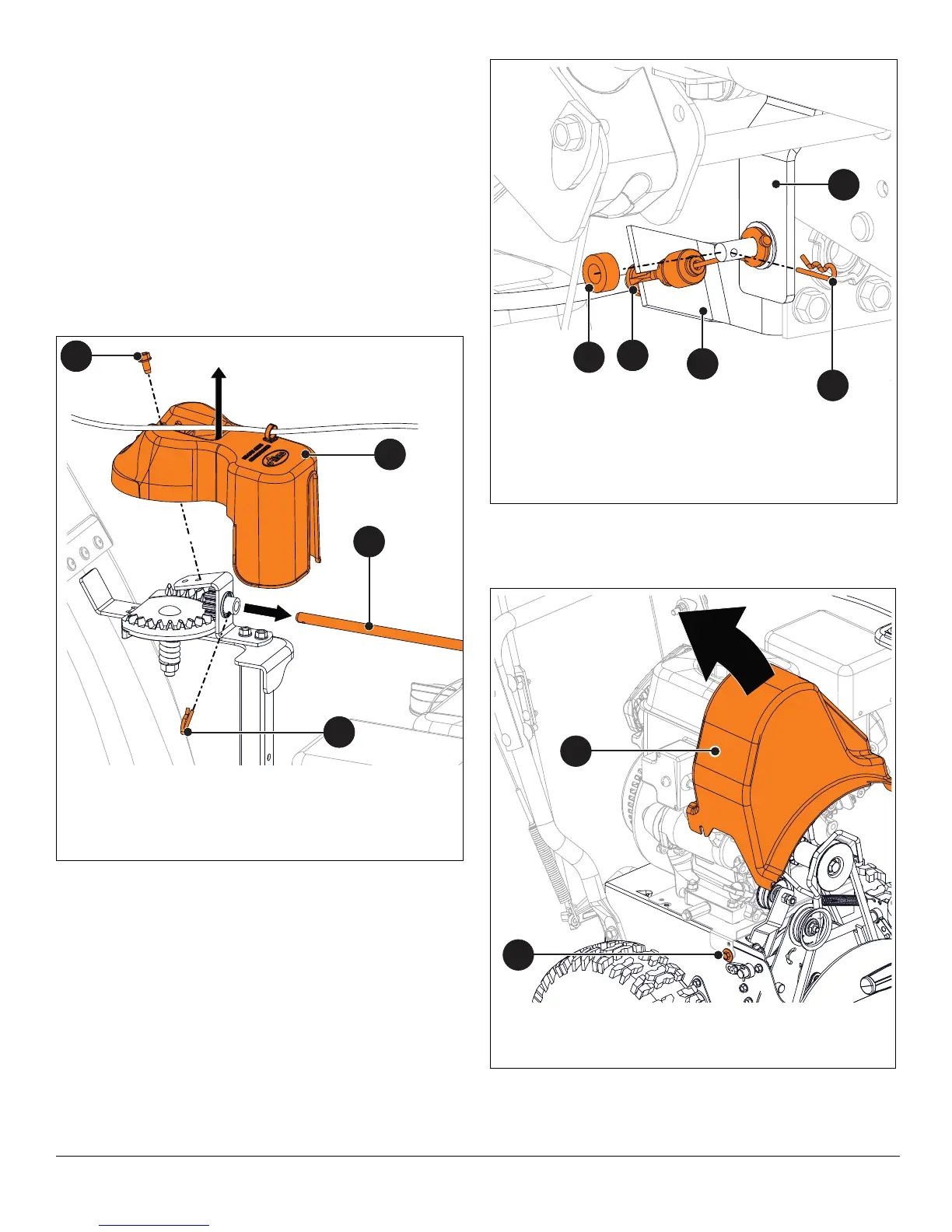

Figure 6
1. Tapping Screw
2. Chute Gear Cover
3. Spring Clip
4. Chute Rotation Rod
1
2
4
3
Figure 7
1. Sleeve Bushing
2. Hairpin
3. Cable Snap
4. Deflector Arm
5. Deflector Anchor
1
2
5
3
4
Figure 8
1. Belt Cover
2. Tapping Screw
1
2
