EN – 14
Install Traction Drive Belt
See Figure 16.
1. Install belt onto traction drive pulley.
2. Install belt onto traction sheave.
3. Move swing gate so swing gate tab aligns with stop
hole in frame.
4. Move swing gate so top of swing gate inserts through
support bushing and swing gate tab inserts through
stop hole.
IMPORTANT: Make sure pivot bushing is correctly seated
in frame and is flush with frame.
5. Reinstall swing gate spacer.
6. Align pivot bushing holes with holes in frame and
swing gate spacer. Secure with two tapping screws.
7. Reconnect idler spring to traction drive idler.
8. With a flathead screwdriver or similar pry bar,
reconnect swing gate return spring to frame.
9. Reinstall attachment drive belt. See Install Attachment
Drive Belt on page 12.
10. Adjust traction drive clutch. Refer to Operator’s
Manual for adjustment procedure.
11. Reconnect spark plug wire.
IMPORTANT: Check all adjustments after first use.
ATTACHMENT BRAKE REPLACEMENT
Remove Attachment Brake
NOTICE: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
3. Separate auger housing from frame. See Separate
Auger Housing from Frame on page 10.
See Figure 17.
4. Remove hardware securing attachment brake to brake
mount bracket.
5. With a flathead screwdriver or similar pry bar,
disconnect extension spring from attachment brake
arm and remove attachment brake arm.
Install Attachment Brake
1. Install hex bolt through brake mount bracket.
2. Install attachment brake arm onto hex bolt.
3. Reinstall sleeve bushing into attachment brake arm.
4. Secure attachment brake arm to brake mount bracket
with top locking flange nut, but DO NOT overtighten.
5. With a flathead screwdriver or similar pry bar,
reconnect extension spring to attachment brake arm.

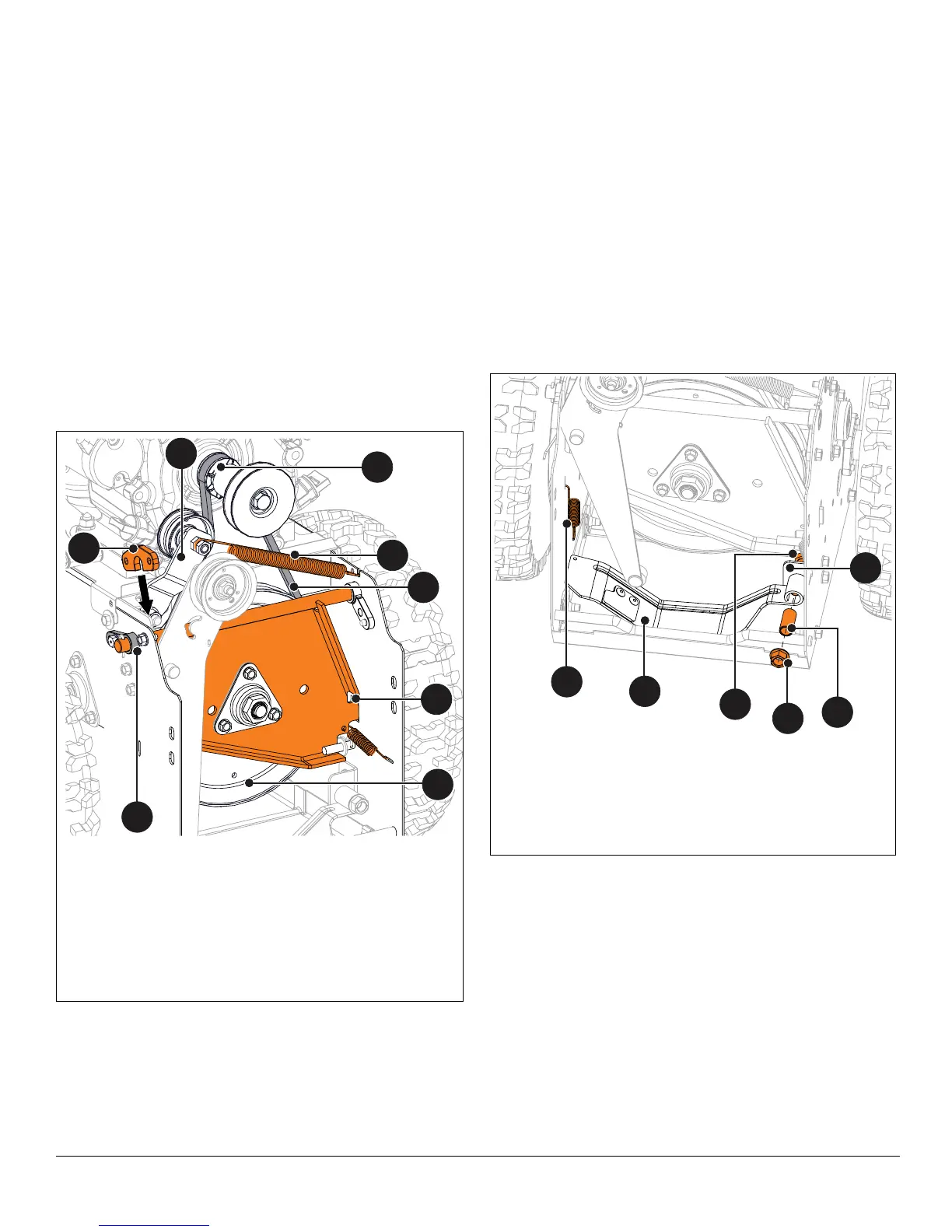

Figure 16
1. Traction Drive Pulley
2. Traction Drive Belt
3. Traction Sheave
4. Swing Gate Spacer
5. Swing Gate Tab & Stop Hole
6. Pivot Bushing
7. Idler Spring
8. Traction Drive Idler
1
3
2
4
6
5
8
7
Figure 17
1. Top Locking Flange Nut
2. Sleeve Bushing
3. Hex Bolt
4. Attachment Brake Arm
5. Extension Spring
6. Brake Mount Bracket
1
2
3
4
5
6
