EN – 18
9. Reinstall adjustment pivot pin into speed selector arm
and secure with hairpin.
10. Reinstall bottom cover and secure with six hex bolts.
11. For wheel models, reinstall wheels and secure with
axle lock pins.
12. Return unit to operating position.
13. Reconnect spark plug wire.
14. Adjust speed selector lever. Refer to Operator’s
Manual for adjustment procedure.
IMPORTANT: Check all adjustments after first use.
AUGER REPLACEMENT
Remove Auger
NOTICE: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
3. Separate auger housing from frame. See Separate
Auger Housing from Frame on page 10.
See Figure 27.
4. Hold attachment drive pulley in place and remove
hardware securing pulley assembly to impeller shaft.
5. Remove pulley assembly from impeller shaft.
6. Loosen, but DO NOT remove hardware securing
bearing plate to housing.
CAUTION: AVOID INJURY. Attachment drive
pulley edges are sharp. Wear gloves when
handling pulley.

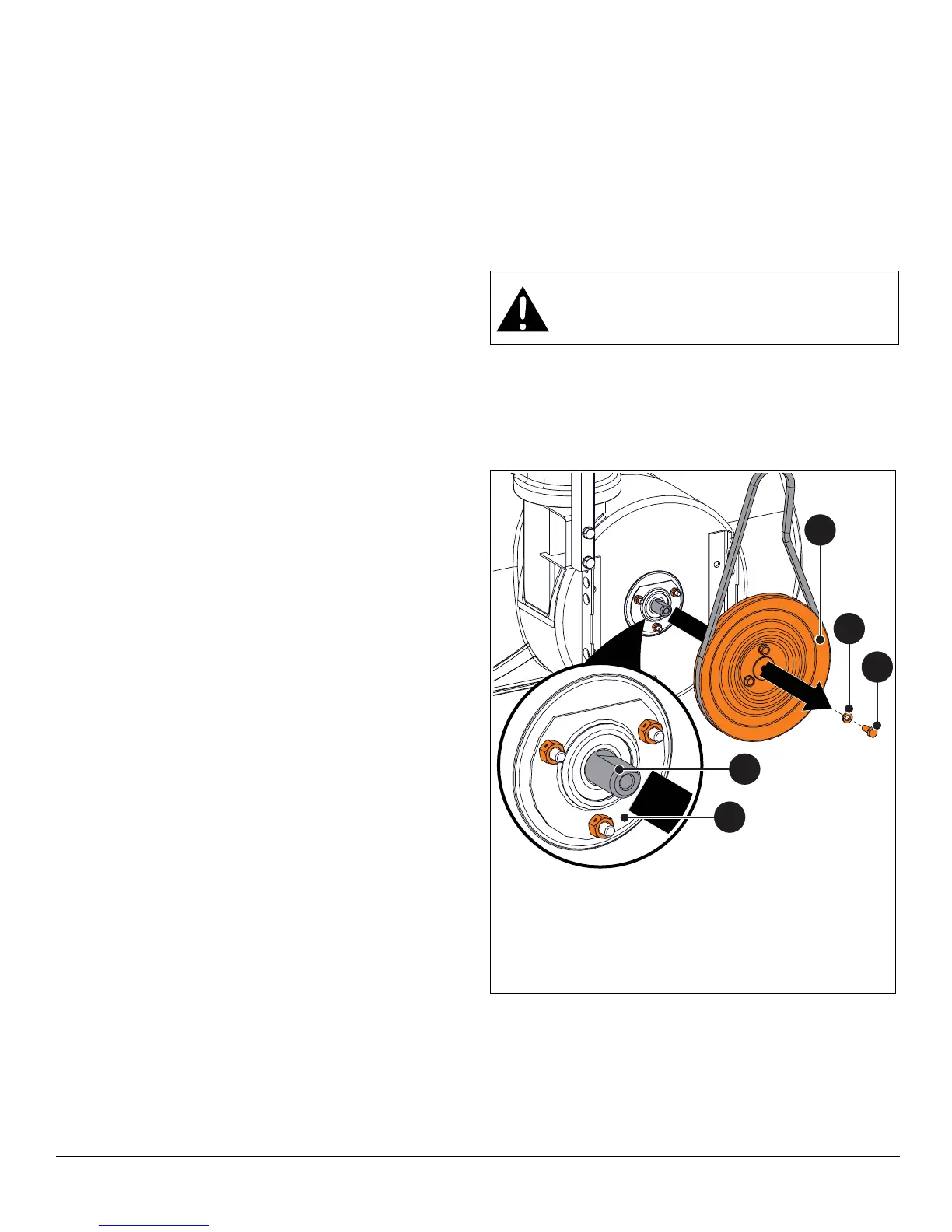

Figure 27
1. Hex Bolt
2. Locking Washer
3. Attachment Drive Pulley
4. Bearing Plate
5. Impeller Shaft
1
2
3
4
5
