EN – 16
FRICTION DISC REPLACEMENT
Remove Friction Disc
NOTICE: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
3. Place unit in service position. See Service Position on
page 8.
4. Remove bottom cover. See Bottom Cover Removal on
page 9.
See Figure 21.
5. Remove hairpin securing adjustment pivot pin to
speed selector arm and remove adjustment pivot pin.
See Figure 22.
6. Remove spring clip from right side of hex shaft.
7. Remove hardware securing bearing flange to left side
of frame and remove bearing flange.
NOTICE: For track models, track angle must be in the
“Lowered Position” to remove hex shaft. Refer to
Operator’s Manual. See Figure 23.
WARNING: AVOID INJURY. Before placing unit
in service position, close fuel valve and drain
fuel from tank and fuel system. See Draining
Fuel System on page 8. Make sure unit is
secure and will not tip.

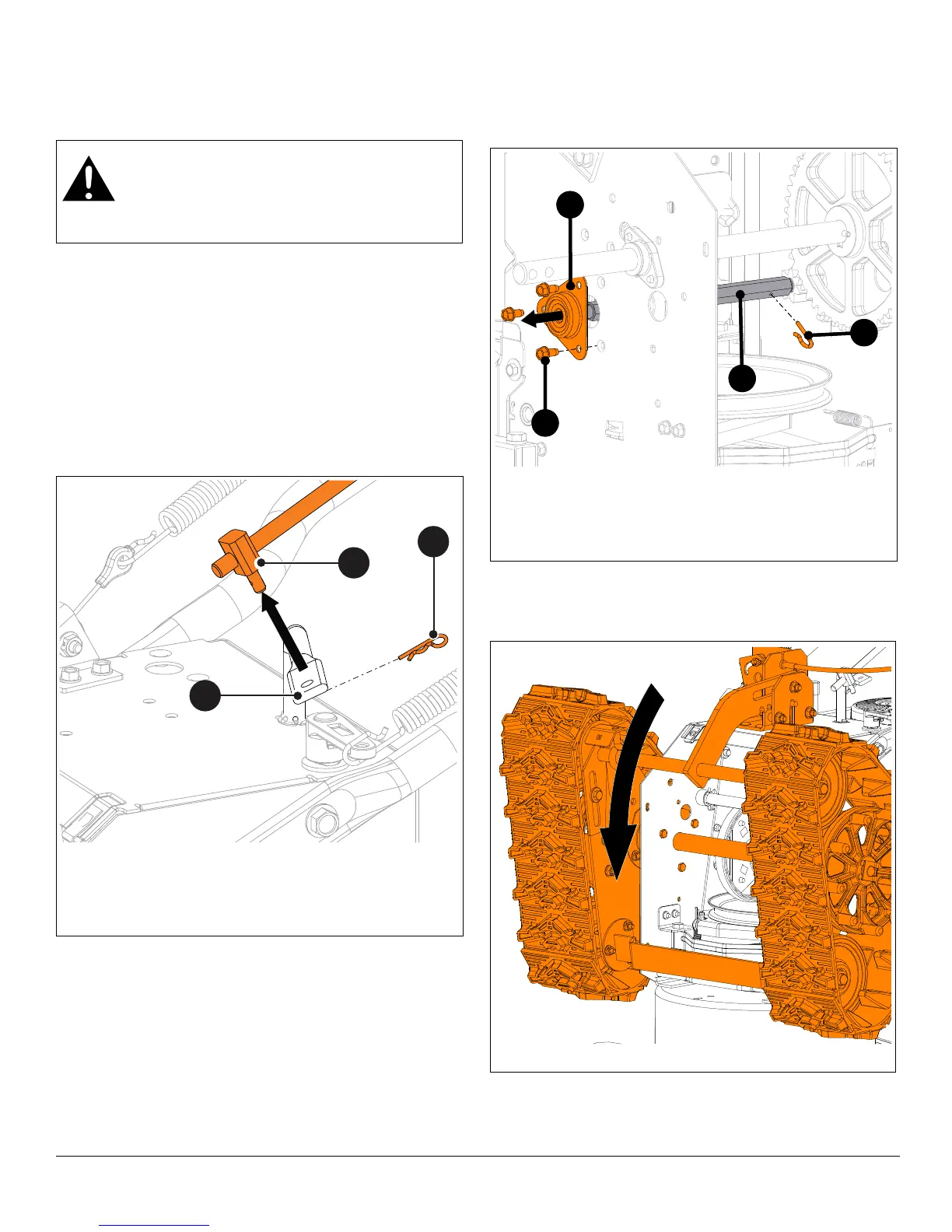

Figure 21
1. Speed Selector Arm
2. Hairpin
3. Adjustment Pivot Pin
1
3
2
Figure 22
1. Bearing Flange
2. Hex Shaft
3. Spring Clip
4. Tapping Screw
1
2
3
4
