EN – 11

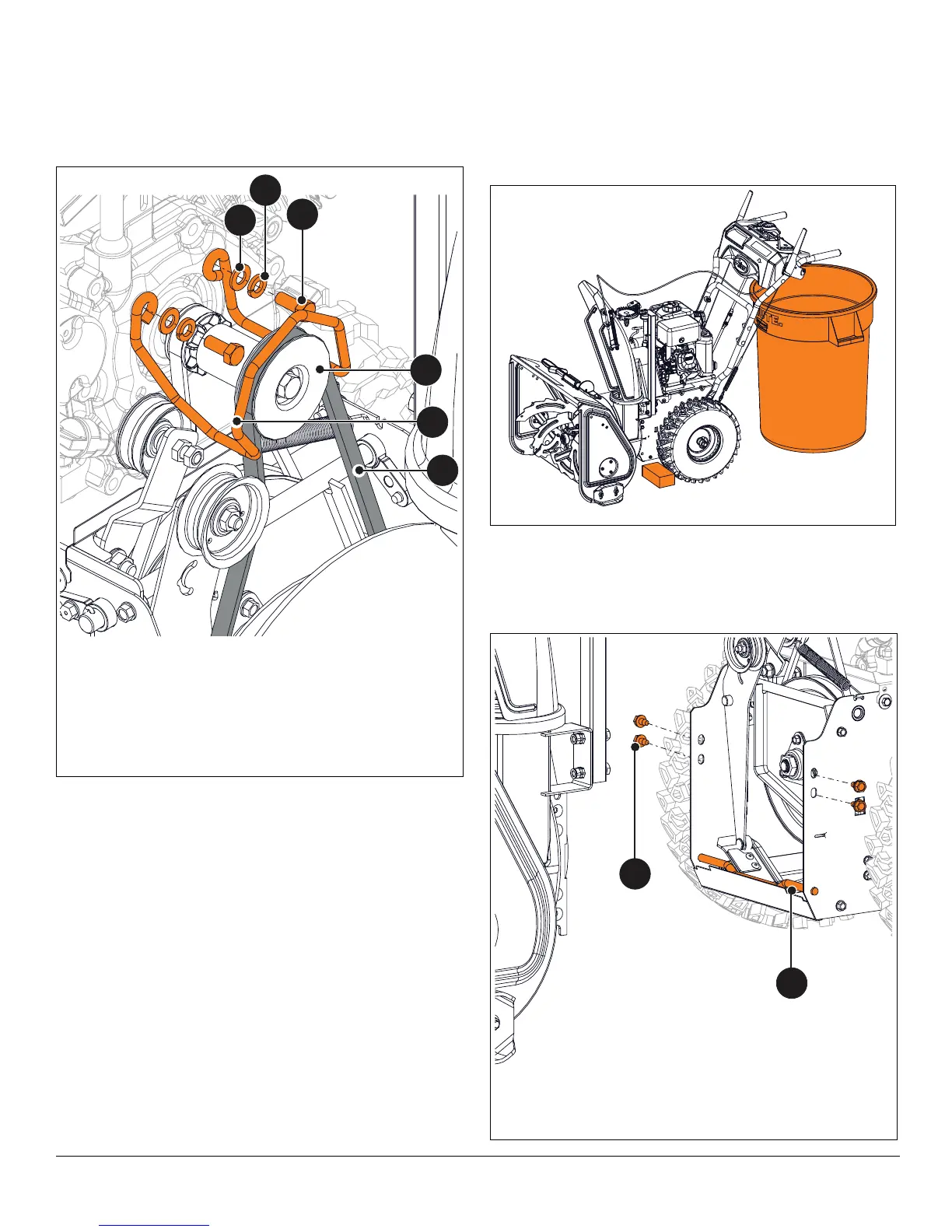

See Figure 9.
10. Remove hardware securing belt finger to engine and
remove belt finger.
11. Remove attachment drive belt from attachment
sheave.
See Figure 10.
12. Position support, such as a trash can, under
handlebars so tractor / frame remains upright when
separated from auger housing.
13. Chock or block wheels to prevent tractor / frame
movement when separated from auger housing.
See Figure 11.
14. Remove hardware securing auger housing to frame.
15. Tip auger housing apart from frame on mount rod and
separate housing from unit.
Figure 9
1. Attachment Drive Belt
2. Attachment Sheave
3. Belt Finger
4. Flat Steel Washer
5. Locking Washer
6. Hex Bolt
1
2
3
4
5
6
Figure 11
1. Tapping Screw
2. Mount Rod
1
2
