EN – 28
Install Chute Rotation Gear
1. Position discharge chute facing forward.
See Figure 48.
2. Position chute rotation gear on chute mount so gear
edge is square with chute mount bracket.
3. Align hole in chute gear with chute mount, flat steel
washer, friction washer, and pedestal plate.
4. Insert round head square neck bolt through chute
gear.
5. Reinstall friction washer, friction plate, compression
spring and top locking flange nut onto bolt.
IMPORTANT: Make sure notch in friction plate fits around
tab in chute mount.
6. Reinstall pinion gear bracket to pedestal plate and
secure with two tapping screws. Tighten hardware.
7. Reinstall chute rotation rod into chute gear and secure
with spring clip.
8. Reinstall chute gear cover and secure with tapping
screw.
9. Adjust discharge chute rotation. Refer to Operator’s
Manual for adjustment procedure.
10. Reconnect spark plug wire.
IMPORTANT: Check all adjustments after first use.

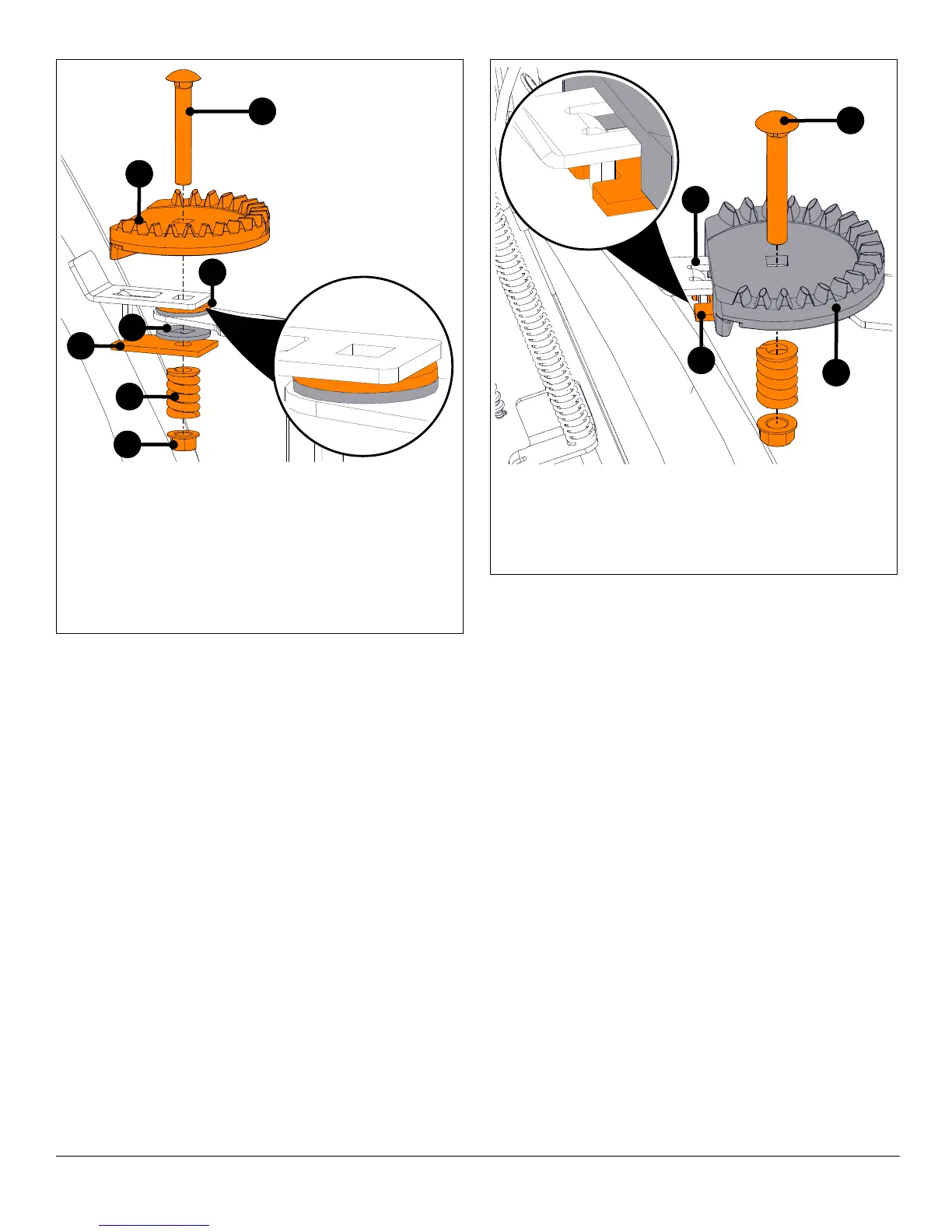

Figure 47
1. Top Locking Flange Nut
2. Compression Spring
3. Friction Plate
4. Friction Washer
5. Round Head Square Neck Bolt
6. Chute Rotation Gear
7. Flat Steel Washer & Friction Washer
1
2
3
7
5
6
4
Figure 48
1. Friction Plate
2. Chute Mount Bracket
3. Chute Rotation Gear
4. Round Head Square Neck Bolt
1
2
4
3
