Ariens RAZOR 911607 - Controls & Features

EN - 9
1. Operator Presence Control (OPC) Lever
2. Wheel Drive Control Lever (Model
911608)
3. REFLEX Drive Handle (Models 911609,
911614)
4. Handlebar
5. Height-of-Cut (HOC) Adjustment Lever
(2)
6. Grass Bag
7. Rear Door
8. Mulch Plug
9. Fuel Tank and Cap
10. Oil Fill / Dipstick
11. Air Filter
12. Recoil Starter Handle
13. Deck Washout Port (Models 911607,
911608)
14. Hose Coupler (Models 911607, 911608)
15. Handlebar Adjustment Knob (2)

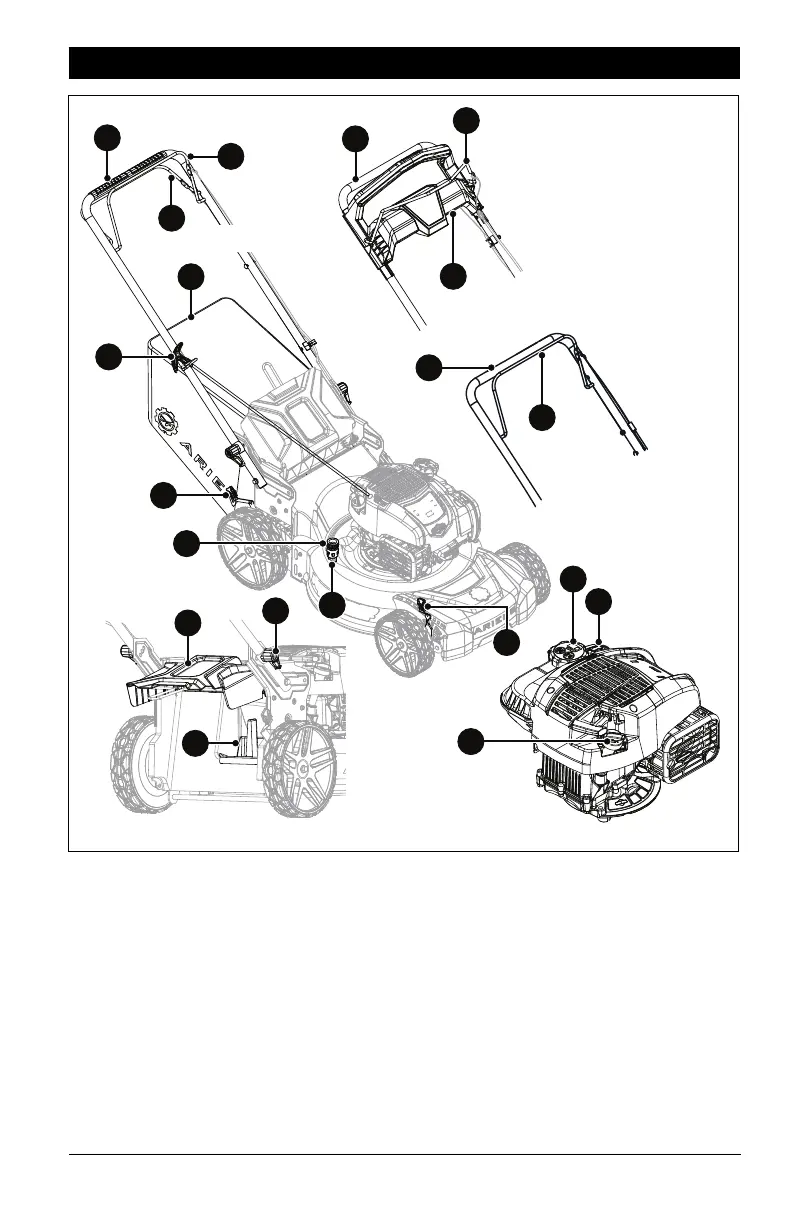

CONTROLS & FEATURES
Figure 4
1
12
14
6
7
15
13
10
5
9
1
1
4
11
4
Model 911608
Models 911609,
911614
Model 911607
8
5
2
4
3
