EN - 10
See Figure 4 for all controls and features
locations.
OPERATOR PRESENCE
CONTROL (OPC) LEVER
See Figure 5.
Allows for engine start, operation and blade
rotation when pulled against handlebar. Lever
MUST remain engaged to mow.
When released, blade rotation disengages
and engine stops.
IMPORTANT: Releasing the OPC lever stops
engine and blade within 3 seconds. If feature
fails, see your Ariens dealer.
REAR DOOR
Opens to collect grass clippings while
bagging. Mulch plug must be removed before
operating with bagger.
MULCH PLUG
Installs in rear panel for mulching setup. See
Mulching Grass Clippings on page 12.
GRASS BAG
Collects grass clippings for bagging setup.
See Bagging Grass Clippings on page 12.
HANDLEBAR
Height-adjustable for operator comfort. See
Adjust Handlebar Height on page 13.
CUTTING HEIGHT-ADJUSTMENT
LEVER
Adjusts cutting height from 2.5 cm – 10.2 cm
(1" – 4"). See Adjust Cutting Height on
page 13.
DECK WASHOUT PORT
Models 911607, 911608
When secured to coupler, garden hose
fastens to washout port and washes grass
clippings and debris from under deck. See
Wash Deck on page 16.
REFLEX DRIVE HANDLE
Models 911609, 911614
See Figure 6.
When pushed down, engages REFLEX drive
and propels mower forward at operator’s
pace. Release lever to stop wheel drive.
REFLEX drive system has variable speed
control. The closer its position to the bottom
of the pace match guide the faster the mower
drives forward.
CAUTION: AVOID INJURY. Read
and understand the Safety section
before proceeding.

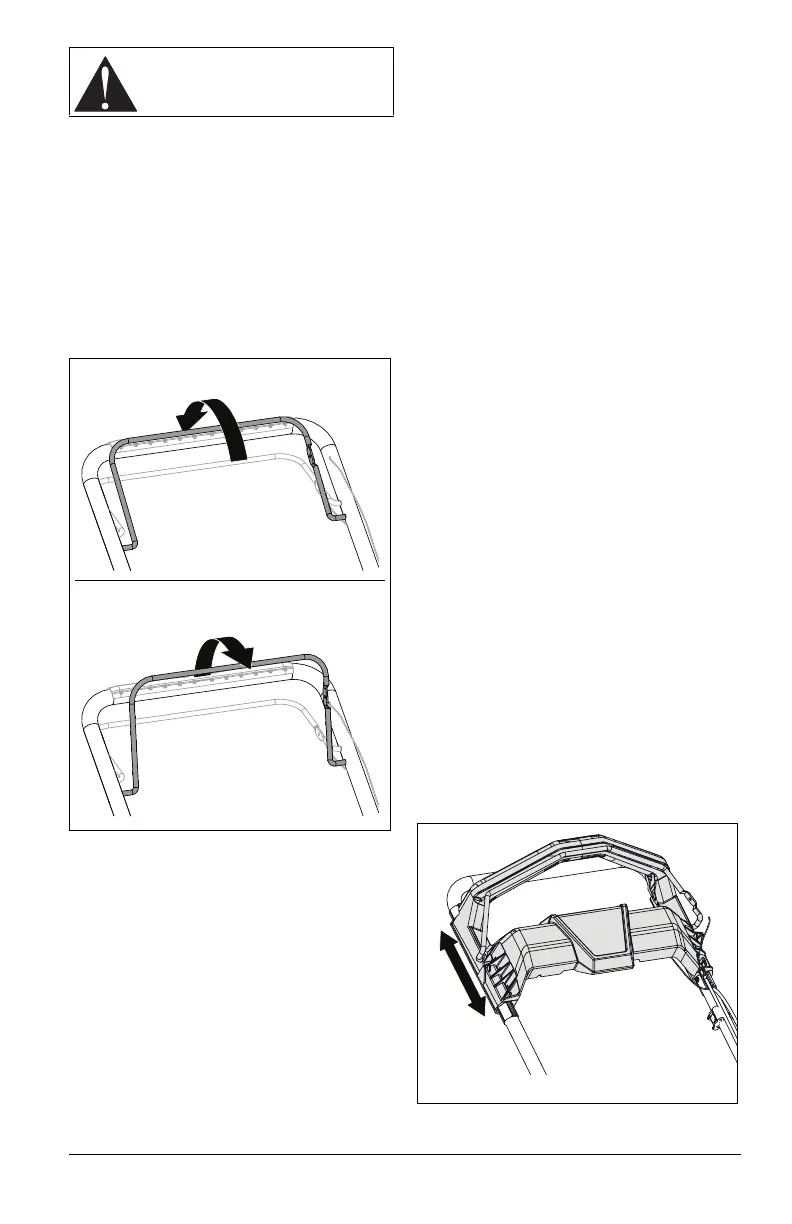

To Start / While Mowing
Engine Stopped / Blade Rotation
Disengaged
Figure 5
Figure 6
Fast
Slow
